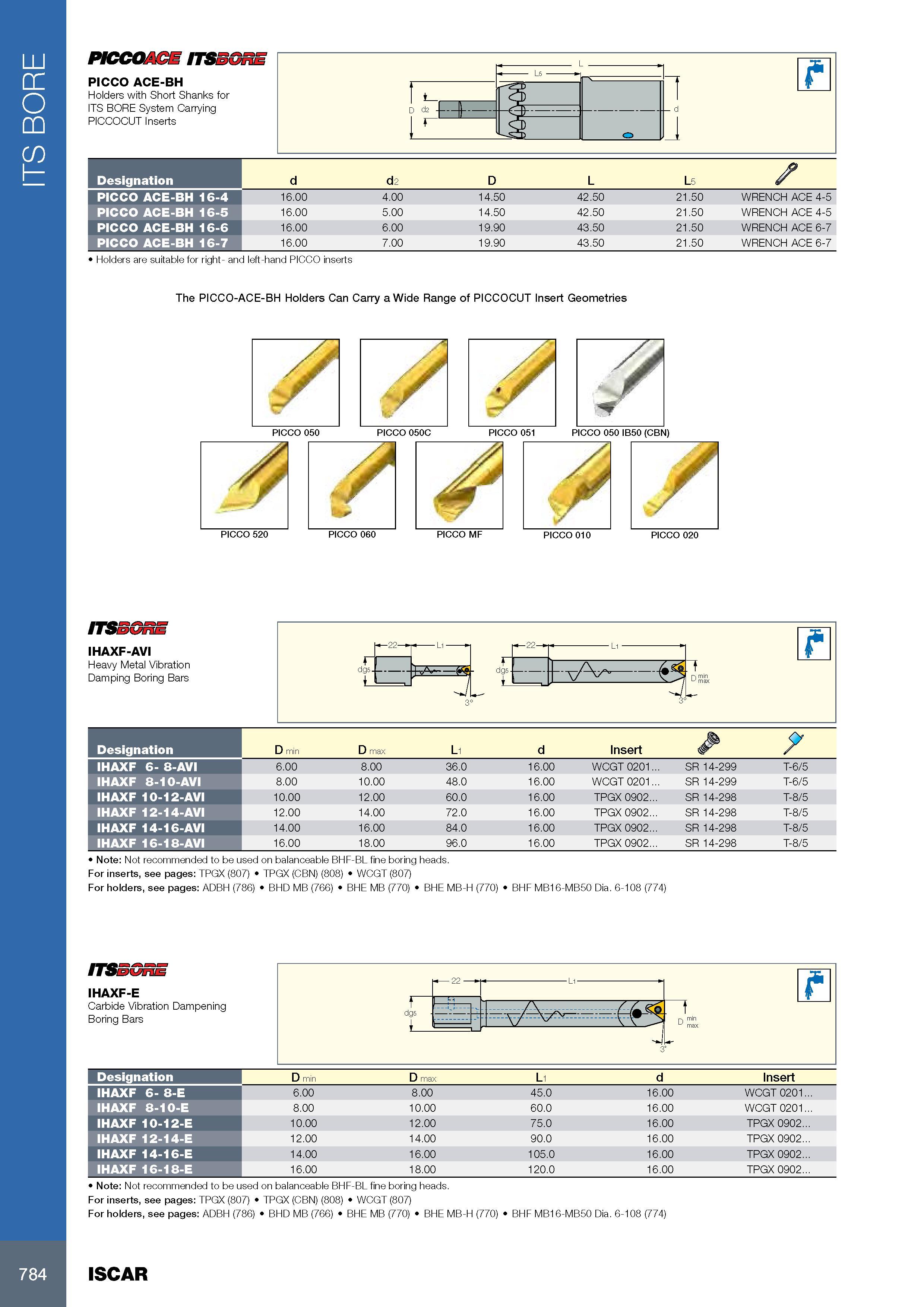

ITS BORE PICCQACE ITSEGnE PICCO ACE-BH Holders with Short Shanks for ITS BORE System Carrying PICCOCUT Inserts Holders are suitable for right- and left-hand PICCO inserts The PICCO-ACE-BH Holders Can Carry a Wide Range of PICCOCUT Insert Geometries Обозначение Designation d d2 D L L5 / PICCO ACE-BH 16-4 16.00 4.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-5 16.00 5.00 14.50 42.50 21.50 WRENCH ACE 4-5 PICCO ACE-BH 16-6 16.00 6.00 19.90 43.50 21.50 WRENCH ACE 6-7 PICCO ACE-BH 16-7 16.00 7.00 19.90 43.50 21.50 WRENCH ACE 6-7 PICCO 520 PICCO 060 PICCO MF PICCO 010 PICCO 020 ITSEGnE IHAXF-AVI Heavy Metal Vibration Damping Boring Bars Обозначение Designation D min D max L1 d Insert P IHAXF 6- 8-AVI 6.00 8.00 36.0 16.00 WCGT 0201... SR 14-299 T-6/5 IHAXF 8-10-AVI 8.00 10.00 48.0 16.00 WCGT 0201... SR 14-299 T-6/5 IHAXF 10-12-AVI 10.00 12.00 60.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 12-14-AVI 12.00 14.00 72.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 14-16-AVI 14.00 16.00 84.0 16.00 TPGX 0902... SR 14-298 T-8/5 IHAXF 16-18-AVI 16.00 18.00 96.0 16.00 TPGX 0902... SR 14-298 T-8/5 Note: Not recommended to be used on balanceable BHF-BL fine boring heads. For inserts, see pages: TPGX (807) TPGX (CBN) (808) WCGT (807) For holders, see pages: ADBH (786) BHD MB (766) BHE MB (770) BHE MB-H (770) BHF MB16-MB50 Dia. 6-108 (774) ITSEGnE IHAXF-E Carbide Vibration Dampening Boring Bars w 22 Li t I V v D Обозначение Designation D min D max L1 d Insert IHAXF 6- 8-E 6.00 8.00 45.0 16.00 WCGT 0201... IHAXF 8-10-E 8.00 10.00 60.0 16.00 WCGT 0201... IHAXF 10-12-E 10.00 12.00 75.0 16.00 TPGX 0902... IHAXF 12-14-E 12.00 14.00 90.0 16.00 TPGX 0902... IHAXF 14-16-E 14.00 16.00 105.0 16.00 TPGX 0902... IHAXF 16-18-E 16.00 18.00 120.0 16.00 TPGX 0902... Note: Not recommended to be used on balanceable BHF-BL fine boring heads. For inserts, see pages: TPGX (807) TPGX (CBN) (808) WCGT (807) For holders, see pages: ADBH (786) BHD MB (766) BHE MB (770) BHE MB-H (770) BHF MB16-MB50 Dia. 6-108 (774) 784 ISCAR
