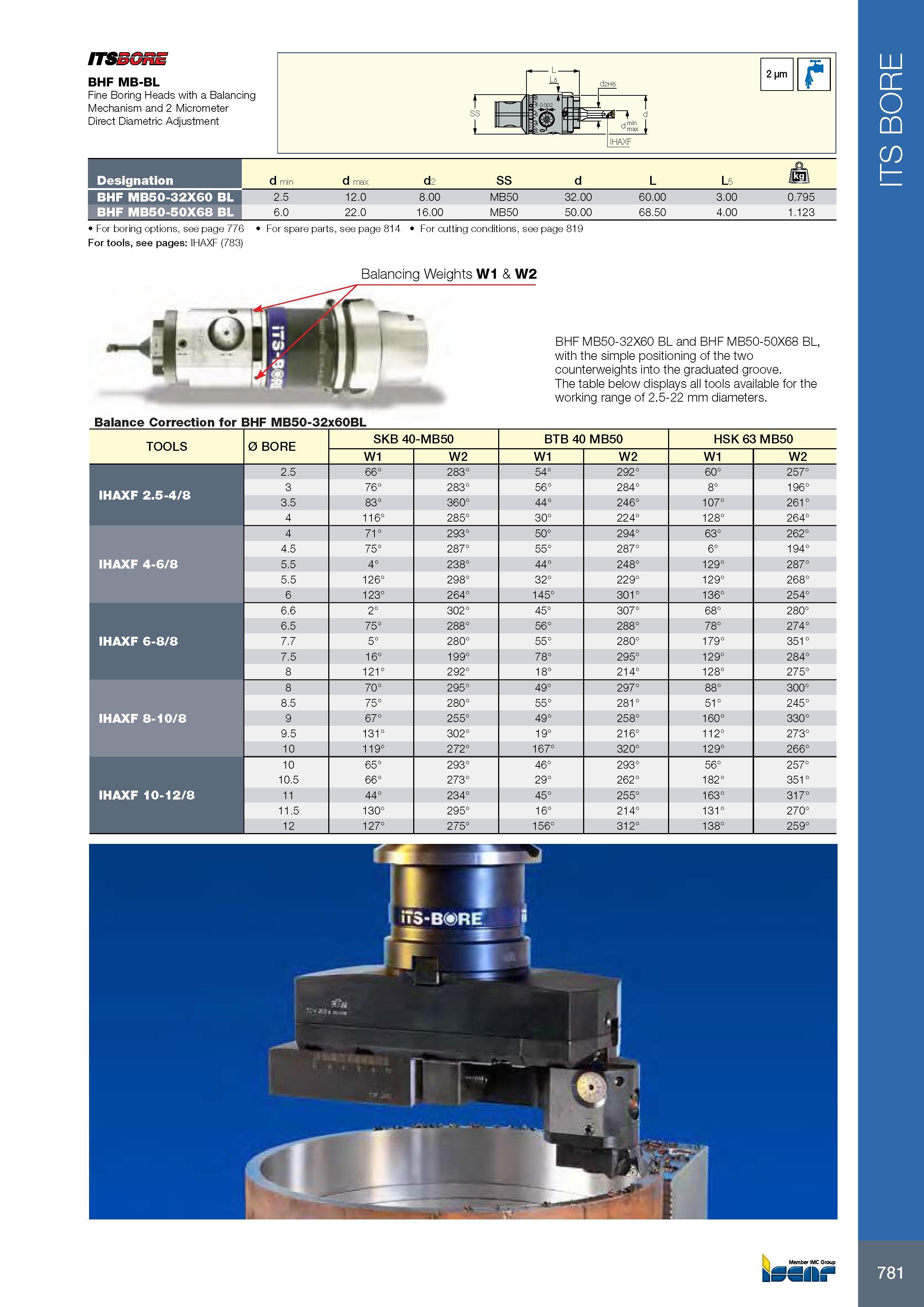

ITSSGRE BHF MB-BL Fine Boring Heads with a Balancing Mechanism and 2 Micrometer Direct Diametric Adjustment ,d2H6 t iM' SS : T : 10.002 1 1 1 d i 1LJ d:M IHAXF Обозначение Designation d min d max d2 SS d L L5 BHF MB50-32X60 BL 2.5 12.0 8.00 MB50 32.00 60.00 3.00 0.795 BHF MB50-50X68 BL 6.0 22.0 16.00 MB50 50.00 68.50 4.00 1.123 For boring options, see page 776 For spare parts, see page 814 For cutting conditions, see page 819 For tools, see pages: IHAXF (783) Balancing Weights W1 & W2 BHF MB50-32X60 BL and BHF MB50-50X68 BL, with the simple positioning of the two counterweights into the graduated groove. The table below displays all tools available for the working range of 2.5-22 mm diameters. Balance Correction for BHF MB50-32x60BL TOOLS 0 BORE SKB 40-MB50 BTB 40 MB50 HSK 63 MB50 W1 W2 W1 W2 W1 W2 2.5 66° 283° 54° 292° 60° 257° IHAXF 2.5-4/8 3 76° 283° 56° 284° 8° 196° 3.5 83° 360° 44° 246° 107° 261° 4 116° 285° 30° 224° 128° 264° 4 71° 293° 50° 294° 63° 262° 4.5 75° 287° 55° 287° 6° 194° IHAXF 4-6/8 5.5 4° 238° 44° 248° 129° 287° 5.5 126° 298° 32° 229° 129° 268° 6 123° 264° 145° 301° 136° 254° 6.6 2° 302° 45° 307° 68° 280° 6.5 75° 288° 56° 288° 78° 274° IHAXF 6-8/8 7.7 5° 280° 55° 280° 179° 351° 7.5 16° 199° 78° 295° 129° 284° 8 121° 292° 18° 214° 128° 275° 8 70° 295° 49° 297° 88° 300° 8.5 5° 7 280° 5° 5 281° 51° 245° IHAXF 8-10/8 9 7° 6 255° 9° 4 258° 160° 330° 9.5 131° 302° 19° 216° 112° 273° 10 119° 272° 167° 320° 129° 266° 10 65° 293° 46° 293° 56° 257° 10.5 6° 6 273° 9° 2 262° 182° 351° IHAXF 10-12/8 11 4° 4 234° 5° 4 255° 163° 317° 11.5 130° 295° 16° 214° 131° 270° 12 127° 275° 156° 312° 138° 259° 781 ITS BORE
