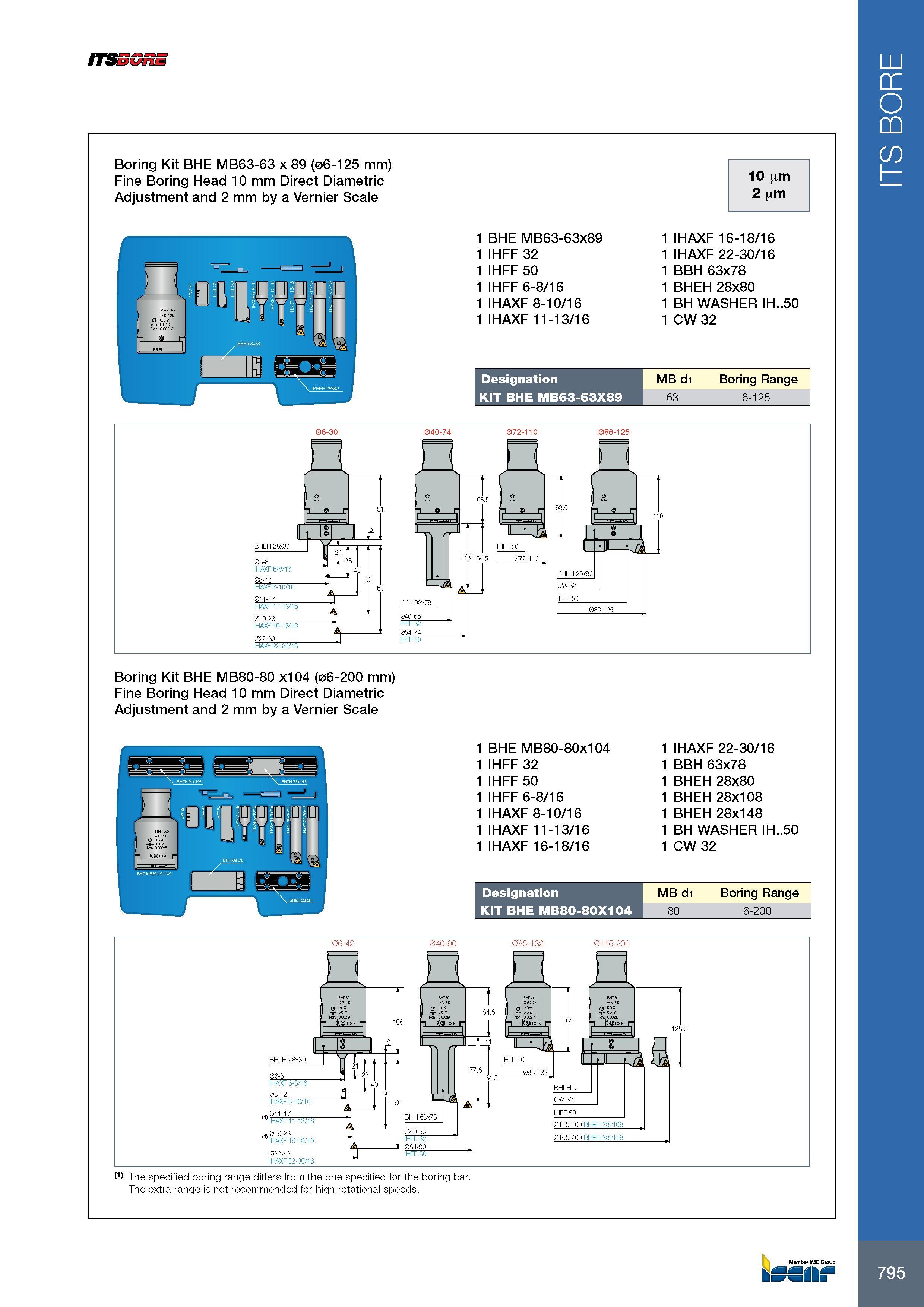

ITSSGnE Boring Kit BHE MB63-63 x 89 (06-125 mm) Fine Boring Head 10 mm Direct Diametric Adjustment and 2 mm by a Vernier Scale 10 urn 2 urn 1 BHE MB63-63x89 1 IHAXF 16-18/16 1 IHFF 32 1 IHAXF 22-30/16 1 IHFF 50 1 BBH 63x78 1 IHFF 6-8/16 1 BHEH 28x80 1 IHAXF 8-10/16 1 BH WASHER IH..50 1 IHAXF 11-13/16 1 CW 32 Обозначение Designation MB d1 Boring Range KIT BHE MB63-63X89 63 6-125 II B9 =i r \ 41 91 f BHEH 28x80 06-8 Lit 28 if' IHAXF 6-8/16 08-12 40 50 IHAXF 8-10/16 011-17 V- 1 60 IHAXF 11-13/16 016-23 IHAXF 16-18/16 A J CW 32 IHFF 50 IHAXF 22-30/16 Boring Kit BHE MB80-80 x104 (06-200 mm) Fine Boring Head 10 mm Direct Diametric Adjustment and 2 mm by a Vernier Scale > 1 M n = KSDloc I- 1 BHE MB80-80x104 1 IHAXF 22-30/16 1 IHFF 32 1 BBH 63x78 1 IHFF 50 1 BHEH 28x80 1 IHFF 6-8/16 1 BHEH 28x108 1 IHAXF 8-10/16 1 BHEH 28x148 1 IHAXF 11-13/16 1 BH WASHER IH..50 1 IHAXF 16-18/16 1 CW 32 Обозначение Designation MB d1 Boring Range KIT BHE MB80-80X104 80 6-200 (1) The specified boring range differs from the one specified for the boring bar. The extra range is not recommended for high rotational speeds. Member IMC Group kSSII t BBH 63x78 ITS BORE
