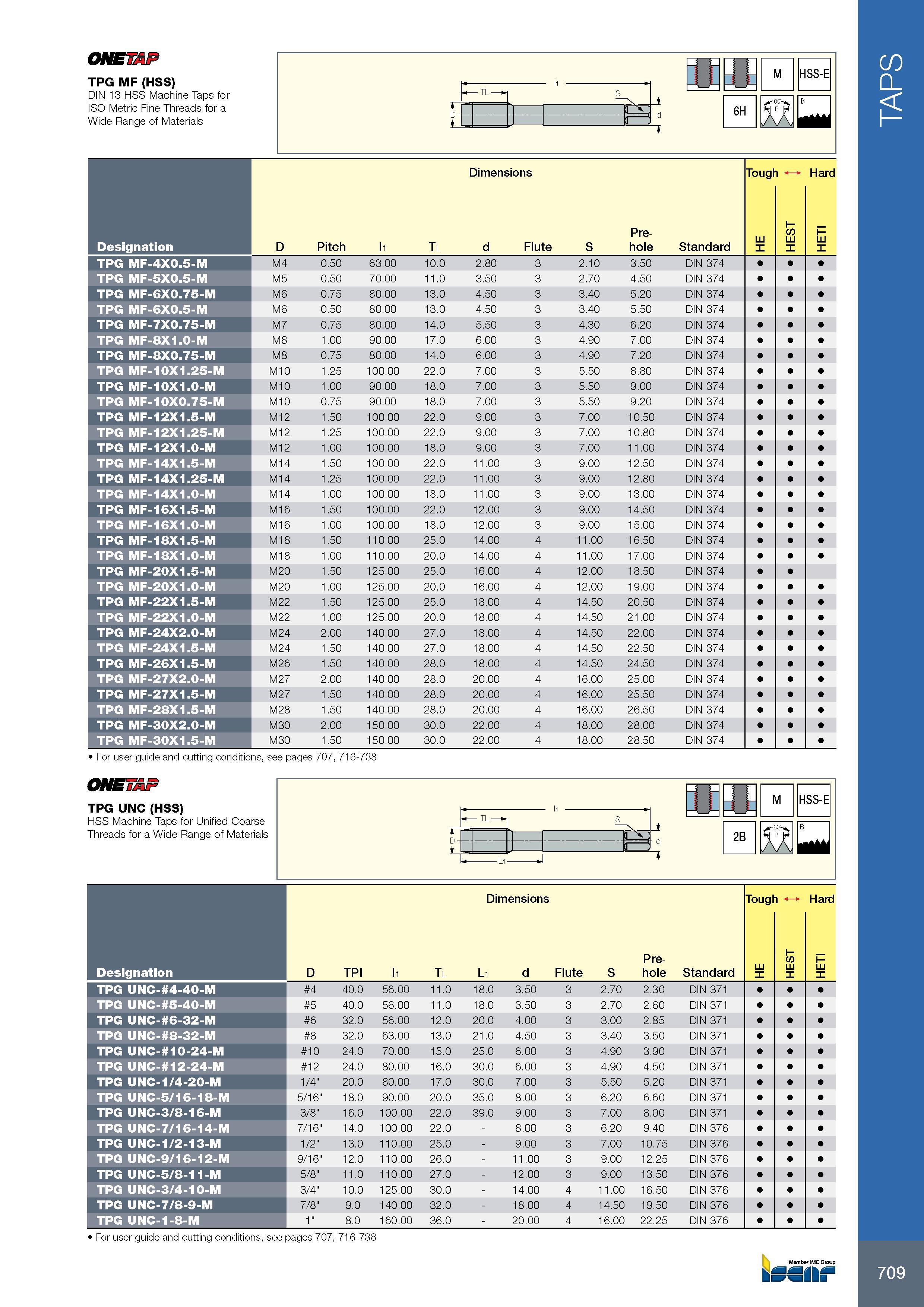

ONETA TPG MF (HSS) DIN 13 HSS Machine Taps for ISO Metric Fine Threads for a Wide Range of Materials -4 =L : M HSS-E 6H B Размеры в мм Dimensions Tough Hard Обозначение Designation D Pitch l1 Tl d Flute S Pre- hole Standard hi X HEST HETI TPG MF-4X0.5-M M4 0.50 63.00 10.0 2.80 3 2.10 3.50 DIN 374 TPG MF-5X0.5-M M5 0.50 70.00 11.0 3.50 3 2.70 4.50 DIN 374 TPG MF-6X0.75-M M6 0.75 80.00 13.0 4.50 3 3.40 5.20 DIN 374 TPG MF-6X0.5-M M6 0.50 80.00 13.0 4.50 3 3.40 5.50 DIN 374 TPG MF-7X0.75-M M7 0.75 80.00 14.0 5.50 3 4.30 6.20 DIN 374 TPG MF-8X1.0-M M8 1.00 90.00 17.0 6.00 3 4.90 7.00 DIN 374 TPG MF-8X0.75-M M8 0.75 80.00 14.0 6.00 3 4.90 7.20 DIN 374 TPG MF-10X1.25-M M10 1.25 100.00 22.0 7.00 3 5.50 8.80 DIN 374 TPG MF-10X1.0-M M10 1.00 90.00 18.0 7.00 3 5.50 9.00 DIN 374 TPG MF-10X0.75-M M10 0.75 90.00 18.0 7.00 3 5.50 9.20 DIN 374 TPG MF-12X1.5-M M12 1.50 100.00 22.0 9.00 3 7.00 10.50 DIN 374 TPG MF-12X1.25-M M12 1.25 100.00 22.0 9.00 3 7.00 10.80 DIN 374 TPG MF-12X1.0-M M12 1.00 100.00 18.0 9.00 3 7.00 11.00 DIN 374 TPG MF-14X1.5-M M14 1.50 100.00 22.0 11.00 3 9.00 12.50 DIN 374 TPG MF-14X1.25-M M14 1.25 100.00 22.0 11.00 3 9.00 12.80 DIN 374 TPG MF-14X1.0-M M14 1.00 100.00 18.0 11.00 3 9.00 13.00 DIN 374 TPG MF-16X1.5-M M16 1.50 100.00 22.0 12.00 3 9.00 14.50 DIN 374 TPG MF-16X1.0-M M16 1.00 100.00 18.0 12.00 3 9.00 15.00 DIN 374 TPG MF-18X1.5-M M18 1.50 110.00 25.0 14.00 4 11.00 16.50 DIN 374 TPG MF-18X1.0-M M18 1.00 110.00 20.0 14.00 4 11.00 17.00 DIN 374 TPG MF-20X1.5-M M20 1.50 125.00 25.0 16.00 4 12.00 18.50 DIN 374 TPG MF-20X1.0-M M20 1.00 125.00 20.0 16.00 4 12.00 19.00 DIN 374 TPG MF-22X1.5-M M22 1.50 125.00 25.0 18.00 4 14.50 20.50 DIN 374 TPG MF-22X1.0-M M22 1.00 125.00 20.0 18.00 4 14.50 21.00 DIN 374 TPG MF-24X2.0-M M24 2.00 140.00 27.0 18.00 4 14.50 22.00 DIN 374 TPG MF-24X1.5-M M24 1.50 140.00 27.0 18.00 4 14.50 22.50 DIN 374 TPG MF-26X1.5-M M26 1.50 140.00 28.0 18.00 4 14.50 24.50 DIN 374 TPG MF-27X2.0-M M27 2.00 140.00 28.0 20.00 4 16.00 25.00 DIN 374 TPG MF-27X1.5-M M27 1.50 140.00 28.0 20.00 4 16.00 25.50 DIN 374 TPG MF-28X1.5-M M28 1.50 140.00 28.0 20.00 4 16.00 26.50 DIN 374 TPG MF-30X2.0-M M30 2.00 150.00 30.0 22.00 4 18.00 28.00 DIN 374 TPG MF-30X1.5-M M30 1.50 150.00 30.0 22.00 4 18.00 28.50 DIN 374 For user guide and cutting conditions, see pages 707, 716-738 ONETAF TPG UNC (HSS) HSS Machine Taps for Unified Coarse Threads for a Wide Range of Materials It M HSS-E 2B B Размеры в мм Dimensions Tough Hard Обозначение Designation D TPI l1 Tl L1 d Flute S Pre- hole Standard E T HEST HETI TPG UNC- 4-40-M 4 40.0 56.00 11.0 18.0 3.50 3 2.70 2.30 DIN 371 TPG UNC- 5-40-M 5 40.0 56.00 11.0 18.0 3.50 3 2.70 2.60 DIN 371 TPG UNC- 6-32-M 6 32.0 56.00 12.0 20.0 4.00 3 3.00 2.85 DIN 371 TPG UNC- 8-32-M 8 32.0 63.00 13.0 21.0 4.50 3 3.40 3.50 DIN 371 TPG UNC- 10-24-M 10 24.0 70.00 15.0 25.0 6.00 3 4.90 3.90 DIN 371 TPG UNC- 12-24-M 12 24.0 80.00 16.0 30.0 6.00 3 4.90 4.50 DIN 371 TPG UNC-1/4-20-M 1/4" 20.0 80.00 17.0 30.0 7.00 3 5.50 5.20 DIN 371 TPG UNC-5/16-18-M 5/16" 18.0 90.00 20.0 35.0 8.00 3 6.20 6.60 DIN 371 TPG UNC-3/8-16-M 3/8" 16.0 100.00 22.0 39.0 9.00 3 7.00 8.00 DIN 371 TPG UNC-7/16-14-M 7/16" 14.0 100.00 22.0 - 8.00 3 6.20 9.40 DIN 376 TPG UNC-1/2-13-M 1/2" 13.0 110.00 25.0 - 9.00 3 7.00 10.75 DIN 376 TPG UNC-9/16-12-M 9/16" 12.0 110.00 26.0 - 11.00 3 9.00 12.25 DIN 376 TPG UNC-5/8-11-M 5/8" 11.0 110.00 27.0 - 12.00 3 9.00 13.50 DIN 376 TPG UNC-3/4-10-M 3/4" 10.0 125.00 30.0 - 14.00 4 11.00 16.50 DIN 376 TPG UNC-7/8-9-M 7/8" 9.0 140.00 32.0 - 18.00 4 14.50 19.50 DIN 376 TPG UNC-1-8-M 1" 8.0 160.00 36.0 - 20.00 4 16.00 22.25 DIN 376 For user guide and cutting conditions, see pages 707, 716-738 Member IMC Group kSSII t 709 TAPS
