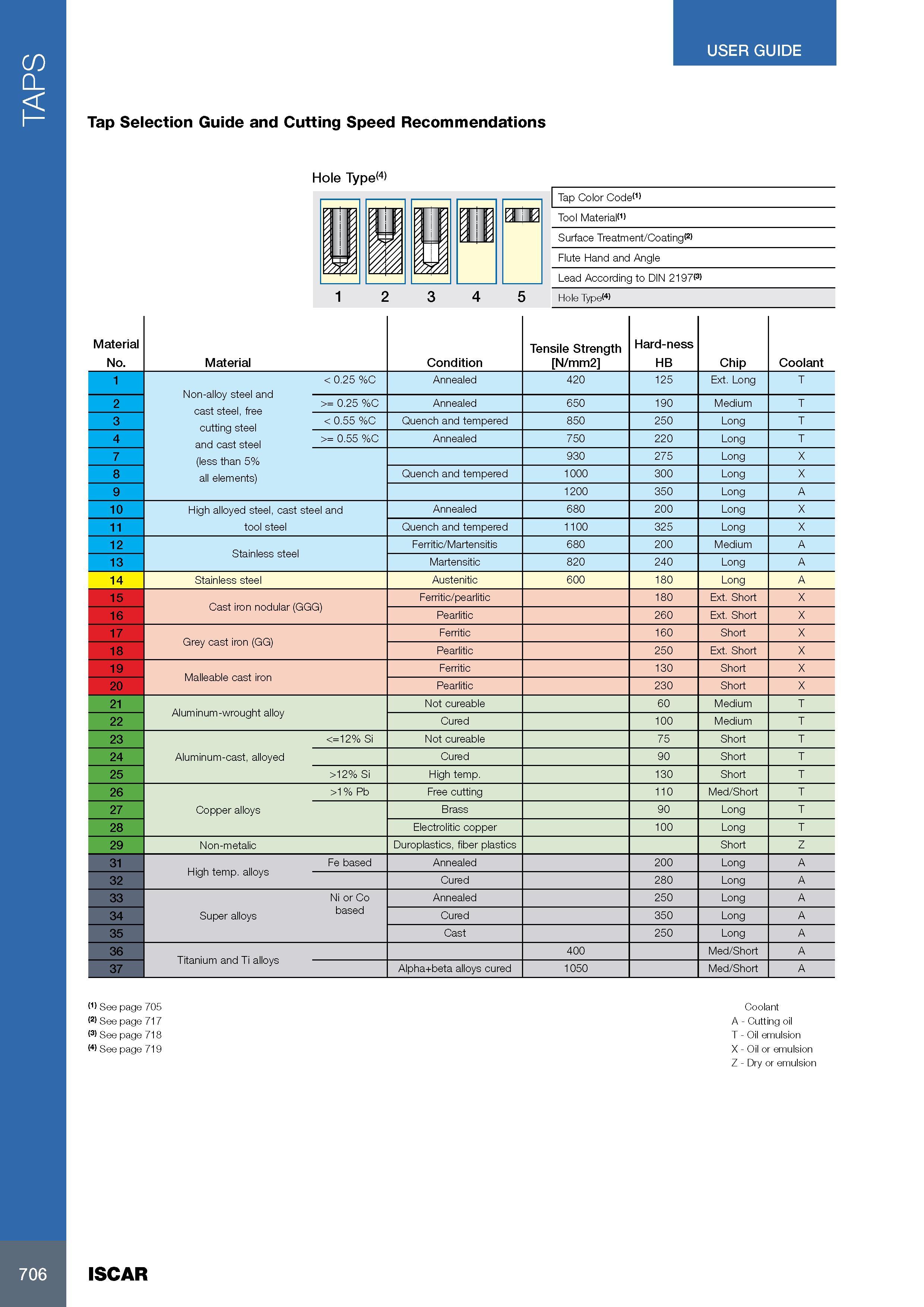

TAPS USER GUIDE Tap Selection Guide and Cutting Speed Recommendations Hole Type(4) Tap Color Code(1) Tool Material(1) Surface Treatment/Coating(2) Flute Hand and Angle Lead According to DIN 2197(3) Hole Type(4) 4 Material No. Material Condition Tensile Strength N/mm2 Hard-ness HB Chip Coolant 1 Non-alloy steel and cast steel, free cutting steel and cast steel (less than 5% all elements) < 0.25 %C Annealed 420 125 Ext. Long T 2 >= 0.25 %C Annealed 650 190 Medium T 3 < 0.55 %C Quench and tempered 850 250 Long T 4 >= 0.55 %C Annealed 750 220 Long T 7 930 275 Long X 8 Quench and tempered 1000 300 Long X 9 1200 350 Long A 10 High alloyed steel, cast steel and tool steel Annealed 680 200 Long X 11 Quench and tempered 1100 325 Long X 12 Stainless steel Ferritic/Martensitis 680 200 Medium A 13 Martensitic 820 240 Long A 14 Stainless steel Austenitic 600 180 Long A 15 Cast iron nodular (GGG) Ferritic/pearlitic 180 Ext. Short X 16 Pearlitic 260 Ext. Short X 17 Grey cast iron (GG) Ferritic 160 Short X 18 Pearlitic 250 Ext. Short X 19 Malleable cast iron Ferritic 130 Short X 20 Pearlitic 230 Short X 21 Aluminum-wrought alloy Not cureable 60 Medium T 22 Cured 100 Medium T 23 Aluminum-cast, alloyed <=12% Si Not cureable 75 Short T 24 Cured 90 Short T 25 >12% Si High temp. 130 Short T 26 Copper alloys >1% Pb Free cutting 110 Med/Short T 27 Brass 90 Long T 28 Electrolitic copper 100 Long T 29 Non-metalic Duroplastics, fiber plastics Short Z 31 High temp. alloys Fe based Annealed 200 Long A 32 Cured 280 Long A 33 Super alloys Ni or Co based Annealed 250 Long A 34 Cured 350 Long A 35 Cast 250 Long A 36 Titanium and Ti alloys 400 Med/Short A 37 Alpha+beta alloys cured 1050 Med/Short A (1) See page 705 Coolant (2) See page 717 A - Cutting oil (3) See page 718 T - Oil emulsion (4) See page 719 X - Oil or emulsion Z - Dry or emulsion 706 ISCAR
