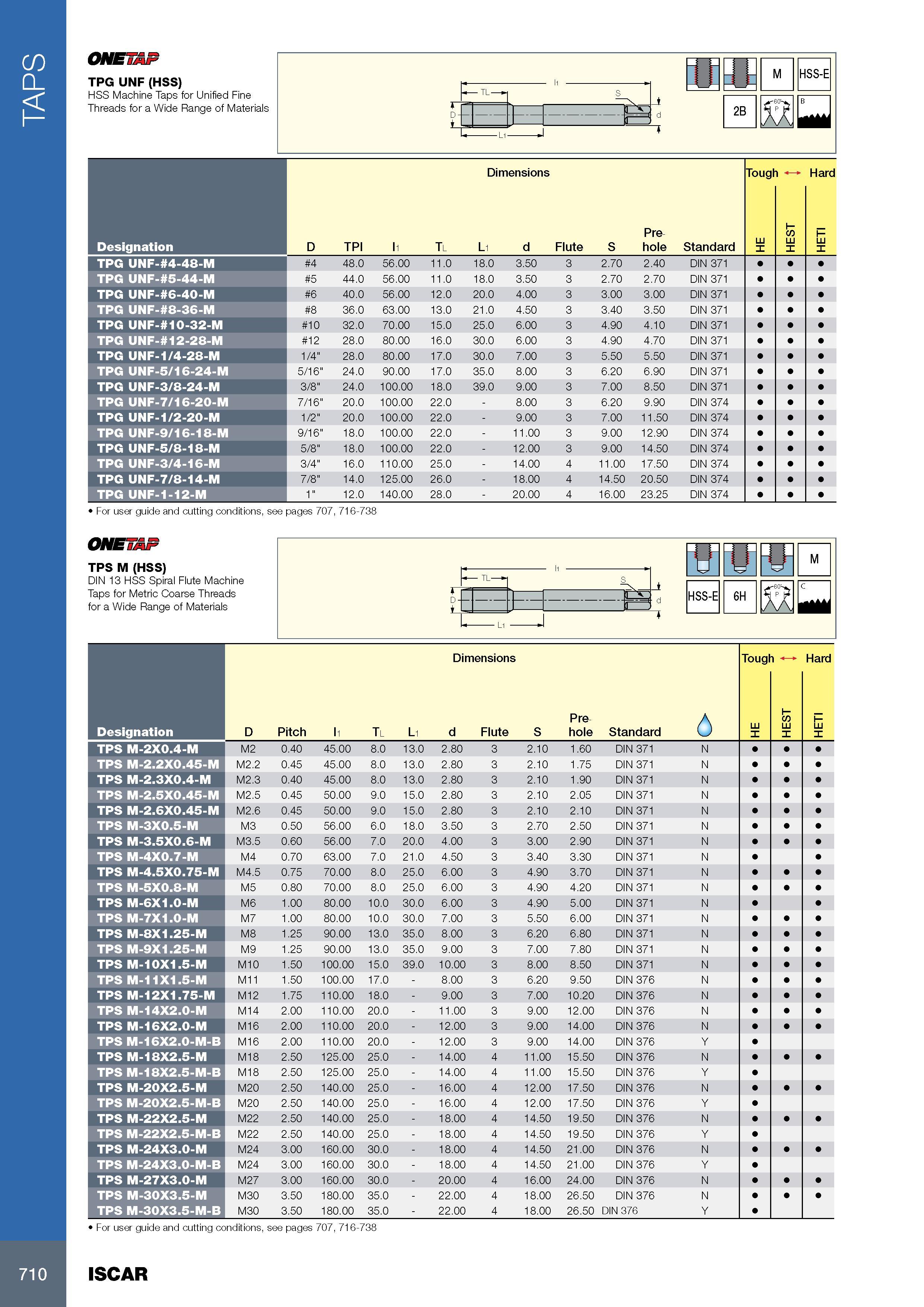

TAPS ONETAF TPG UNF (HSS) HSS Machine Taps for Unified Fine Threads for a Wide Range of Materials Размеры в мм Dimensions Tough 1 Hard Обозначение Designation D TPI l1 Tl L1 d Flute S Pre- hole Standard HI T HEST l E T TPG UNF- 4-48-M 4 48.0 56.00 11.0 18.0 3.50 3 2.70 2.40 DIN 371 TPG UNF- 5-44-M 5 44.0 56.00 11.0 18.0 3.50 3 2.70 2.70 DIN 371 TPG UNF- 6-40-M 6 40.0 56.00 12.0 20.0 4.00 3 3.00 3.00 DIN 371 TPG UNF- 8-36-M 8 36.0 63.00 13.0 21.0 4.50 3 3.40 3.50 DIN 371 TPG UNF- 10-32-M 10 32.0 70.00 15.0 25.0 6.00 3 4.90 4.10 DIN 371 TPG UNF- 12-28-M 12 28.0 80.00 16.0 30.0 6.00 3 4.90 4.70 DIN 371 TPG UNF-1/4-28-M 1/4" 28.0 80.00 17.0 30.0 7.00 3 5.50 5.50 DIN 371 TPG UNF-5/16-24-M 5/16" 24.0 90.00 17.0 35.0 8.00 3 6.20 6.90 DIN 371 TPG UNF-3/8-24-M 3/8" 24.0 100.00 18.0 39.0 9.00 3 7.00 8.50 DIN 371 TPG UNF-7/16-20-M 7/16" 20.0 100.00 22.0 - 8.00 3 6.20 9.90 DIN 374 TPG UNF-1/2-20-M 1/2" 20.0 100.00 22.0 - 9.00 3 7.00 11.50 DIN 374 TPG UNF-9/16-18-M 9/16" 18.0 100.00 22.0 - 11.00 3 9.00 12.90 DIN 374 TPG UNF-5/8-18-M 5/8" 18.0 100.00 22.0 - 12.00 3 9.00 14.50 DIN 374 TPG UNF-3/4-16-M 3/4" 16.0 110.00 25.0 - 14.00 4 11.00 17.50 DIN 374 TPG UNF-7/8-14-M 7/8" 14.0 125.00 26.0 - 18.00 4 14.50 20.50 DIN 374 TPG UNF-1-12-M 1" 12.0 140.00 28.0 - 20.00 4 16.00 23.25 DIN 374 For user guide and cutting conditions, see pages 707, 716-738 ONETAF TPS M (HSS) DIN 13 HSS Spiral Flute Machine Taps for Metric Coarse Threads for a Wide Range of Materials Размеры в мм Dimensions Обозначение Designation D Pitch l1 Tl L1 d Flute S Pre- hole Standard <3 TPS M-2X0.4-M M2 0.40 45.00 8.0 13.0 2.80 3 2.10 1.60 DIN 371 N TPS M-2.2X0.45-M M2.2 0.45 45.00 8.0 13.0 2.80 3 2.10 1.75 DIN 371 N TPS M-2.3X0.4-M M2.3 0.40 45.00 8.0 13.0 2.80 3 2.10 1.90 DIN 371 N TPS M-2.5X0.45-M M2.5 0.45 50.00 9.0 15.0 2.80 3 2.10 2.05 DIN 371 N TPS M-2.6X0.45-M M2.6 0.45 50.00 9.0 15.0 2.80 3 2.10 2.10 DIN 371 N TPS M-3X0.5-M M3 0.50 56.00 6.0 18.0 3.50 3 2.70 2.50 DIN 371 N TPS M-3.5X0.6-M M3.5 0.60 56.00 7.0 20.0 4.00 3 3.00 2.90 DIN 371 N TPS M-4X0.7-M M4 0.70 63.00 7.0 21.0 4.50 3 3.40 3.30 DIN 371 N TPS M-4.5X0.75-M M4.5 0.75 70.00 8.0 25.0 6.00 3 4.90 3.70 DIN 371 N TPS M-5X0.8-M M5 0.80 70.00 8.0 25.0 6.00 3 4.90 4.20 DIN 371 N TPS M-6X1.0-M M6 1.00 80.00 10.0 30.0 6.00 3 4.90 5.00 DIN 371 N TPS M-7X1.0-M M7 1.00 80.00 10.0 30.0 7.00 3 5.50 6.00 DIN 371 N TPS M-8X1.25-M M8 1.25 90.00 13.0 35.0 8.00 3 6.20 6.80 DIN 371 N TPS M-9X1.25-M M9 1.25 90.00 13.0 35.0 9.00 3 7.00 7.80 DIN 371 N TPS M-10X1.5-M M10 1.50 100.00 15.0 39.0 10.00 3 8.00 8.50 DIN 371 N TPS M-11X1.5-M M11 1.50 100.00 17.0 - 8.00 3 6.20 9.50 DIN 376 N TPS M-12X1.75-M M12 1.75 110.00 18.0 - 9.00 3 7.00 10.20 DIN 376 N TPS M-14X2.0-M M14 2.00 110.00 20.0 - 11.00 3 9.00 12.00 DIN 376 N TPS M-16X2.0-M M16 2.00 110.00 20.0 - 12.00 3 9.00 14.00 DIN 376 N TPS M-16X2.0-M-B M16 2.00 110.00 20.0 - 12.00 3 9.00 14.00 DIN 376 Y TPS M-18X2.5-M M18 2.50 125.00 25.0 - 14.00 4 11.00 15.50 DIN 376 N TPS M-18X2.5-M-B M18 2.50 125.00 25.0 - 14.00 4 11.00 15.50 DIN 376 Y TPS M-20X2.5-M M20 2.50 140.00 25.0 - 16.00 4 12.00 17.50 DIN 376 N TPS M-20X2.5-M-B M20 2.50 140.00 25.0 - 16.00 4 12.00 17.50 DIN 376 Y TPS M-22X2.5-M M22 2.50 140.00 25.0 - 18.00 4 14.50 19.50 DIN 376 N TPS M-22X2.5-M-B M22 2.50 140.00 25.0 - 18.00 4 14.50 19.50 DIN 376 Y TPS M-24X3.0-M M24 3.00 160.00 30.0 - 18.00 4 14.50 21.00 DIN 376 N TPS M-24X3.0-M-B M24 3.00 160.00 30.0 - 18.00 4 14.50 21.00 DIN 376 Y TPS M-27X3.0-M M27 3.00 160.00 30.0 - 20.00 4 16.00 24.00 DIN 376 N TPS M-30X3.5-M M30 3.50 180.00 35.0 - 22.00 4 18.00 26.50 DIN 376 N TPS M-30X3.5-M-B M30 3.50 180.00 35.0 - 22.00 4 18.00 26.50 DIN 376 Y Tough LU I LU I Hard LU I For user guide and cutting conditions, see pages 707, 716-738 710 ISCAR
