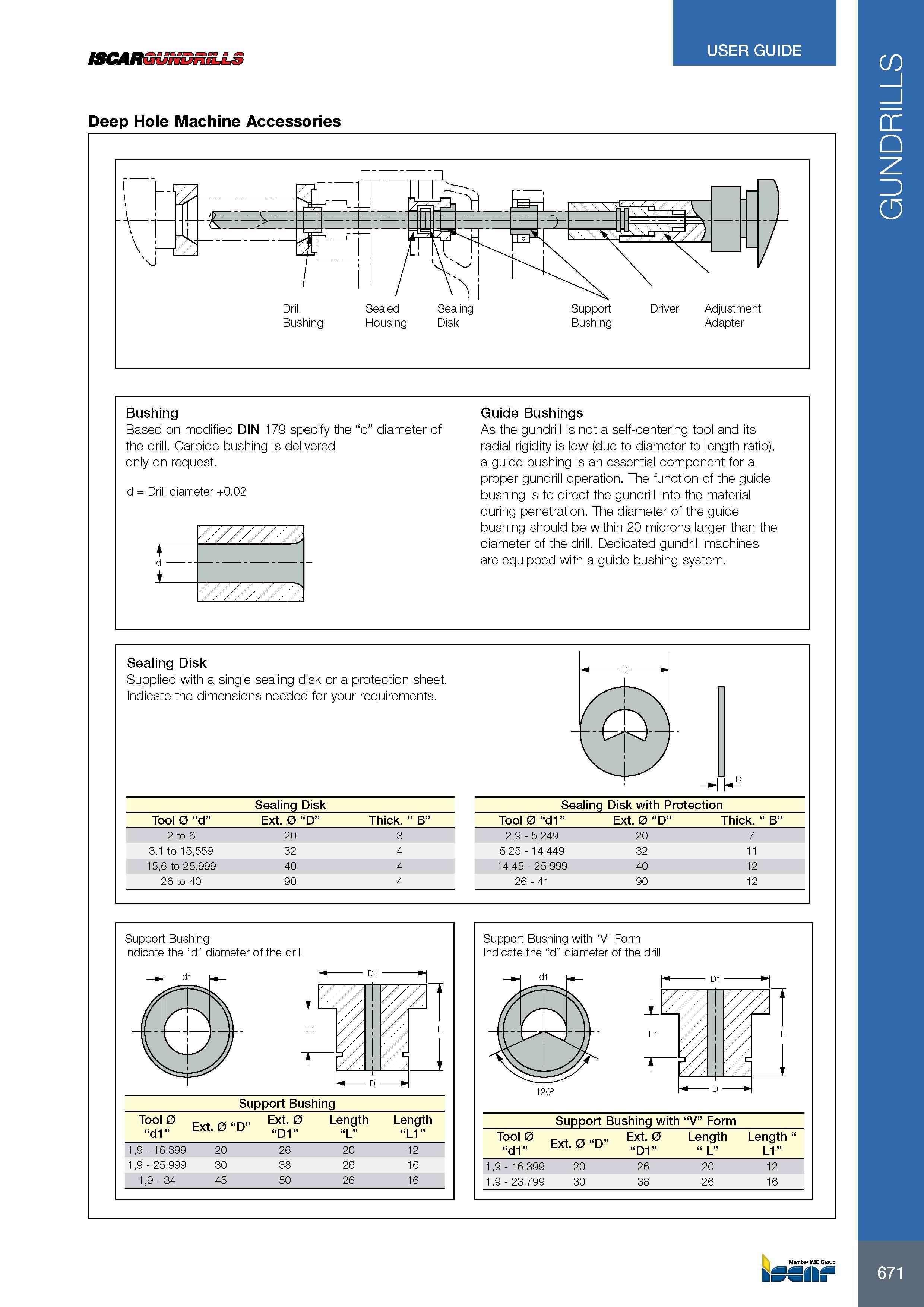

ISCARGUNDnii USER GUIDE Deep Hole Machine Accessories Bushing Based on modified DIN 179 specify the “d” diameter of the drill. Carbide bushing is delivered only on request. d = Drill diameter +0.02 4 d i " Guide Bushings As the gundrill is not a self-centering tool and its radial rigidity is low (due to diameter to length ratio), a guide bushing is an essential component for a proper gundrill operation. The function of the guide bushing is to direct the gundrill into the material during penetration. The diameter of the guide bushing should be within 20 microns larger than the diameter of the drill. Dedicated gundrill machines are equipped with a guide bushing system. Sealing Disk Supplied with a single sealing disk or a protection sheet. Indicate the dimensions needed for your requirements. Sealing Disk Tool 0 “d” Ext. 0 “D” Thick. “ B” 2 to 6 20 3 3,1 to 15,559 32 4 15,6 to 25,999 40 4 26 to 40 90 4 Sealing Disk with Protection Tool 0 “d1” Ext. 0 “D” Thick. “ B” 2,9 - 5,249 20 7 5,25 - 14,449 32 11 14,45 - 25,999 40 12 26 - 41 90 12 B Support Bushing Tool 0 “d1” Ext. 0 “D” Ext. 0 D “D1” Length “L” Length “L1” 1,9 - 16,399 20 26 20 12 1,9 - 25,999 30 38 26 16 1,9 - 34 45 50 26 16 Support Bushing with “V” Form Tool 0 “d1” Ext. 0 “D , Ext. 0 “D1” Length “ L” Length “ L1” 1,9 - 16,399 20 26 20 12 1,9 - 23,799 30 38 26 16 671 GUNDRILLS
