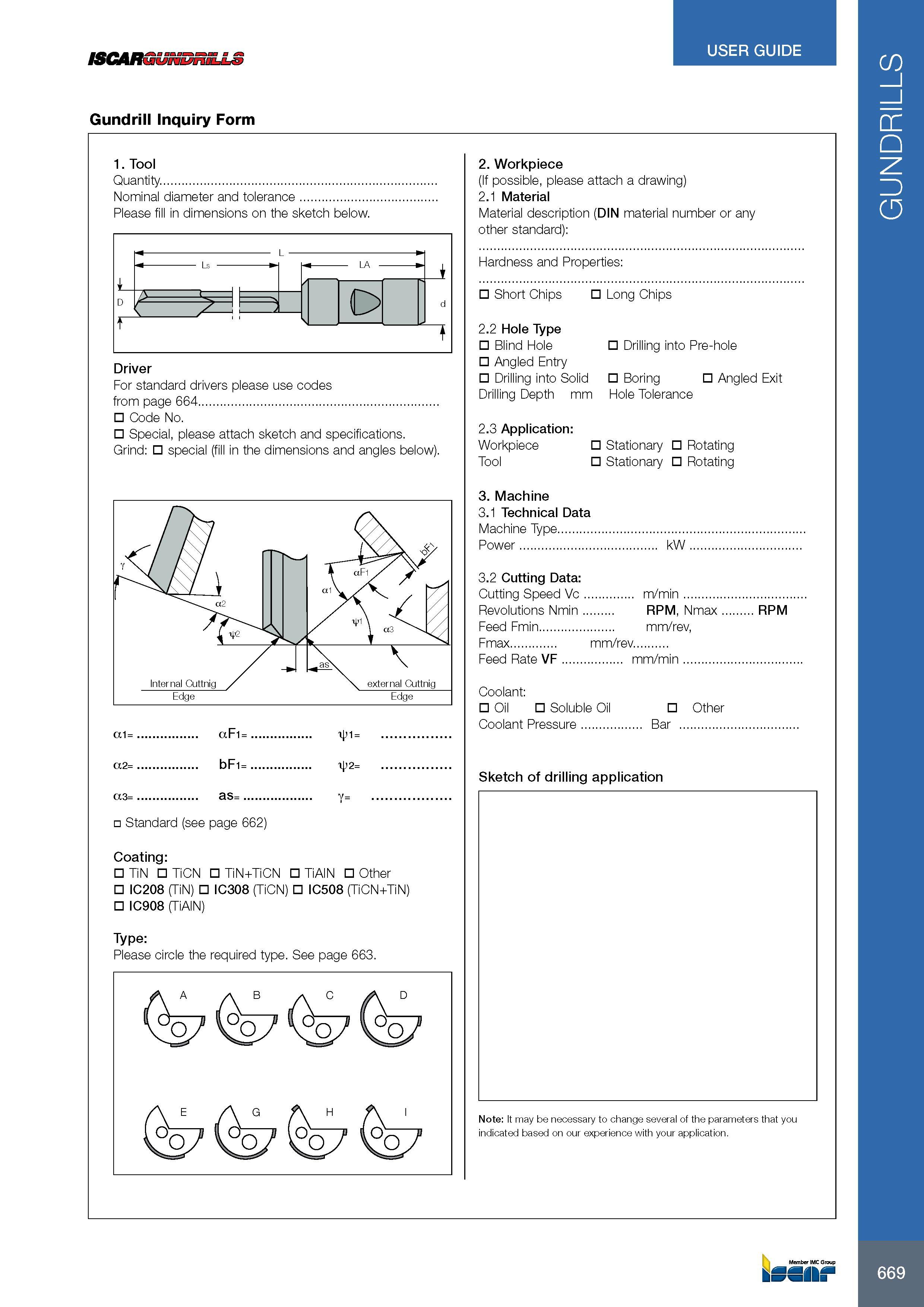

ISCARGUNDnii USER GUIDE Gundrill Inquiry Form 1. Tool Quantity Nominal diameter and tolerance Please fill in dimensions on the sketch below. Driver For standard drivers please use codes from page 664 Code No. Special, please attach sketch and specifications. Grind: special (fill in the dimensions and angles below). al= aFl = 1= a2= bFl= 2= a3= as= y= Standard (see page 662) Coating: TiN TiCN TiN+TiCN TiAIN Other IC208 (TiN) IC308 (TiCN) IC508 (TiCN+TiN) IC908 (TiAlN) Type: Please circle the required type. See page 663. 2. Workpiece (If possible, please attach a drawing) 2.1 Material Material description (DIN material number or any other standard): Hardness and Properties: Short Chips Long Chips 2.2 Hole Type Blind Hole Angled Entry Drilling into Solid Drilling Depth mm 2.3 Application: Workpiece Stationary Rotating Tool Stationary Rotating 3. Machine 3.1 Technical Data Machine Type Power .. kW 3.2 Cutting Data: Cutting Speed Vc m/min Revolutions Nmin RPM, Nmax RPM Feed Fmin mm/rev, Fmax mm/rev Feed Rate VF mm/min Coolant: Oil Soluble Oil Other Coolant Pressure Bar Sketch of drilling application Note: It may be necessary to change several of the parameters that you indicated based on our experience with your application. Drilling into Pre-hole Boring Angled Exit Hole Tolerance 669 GUNDRILLS
