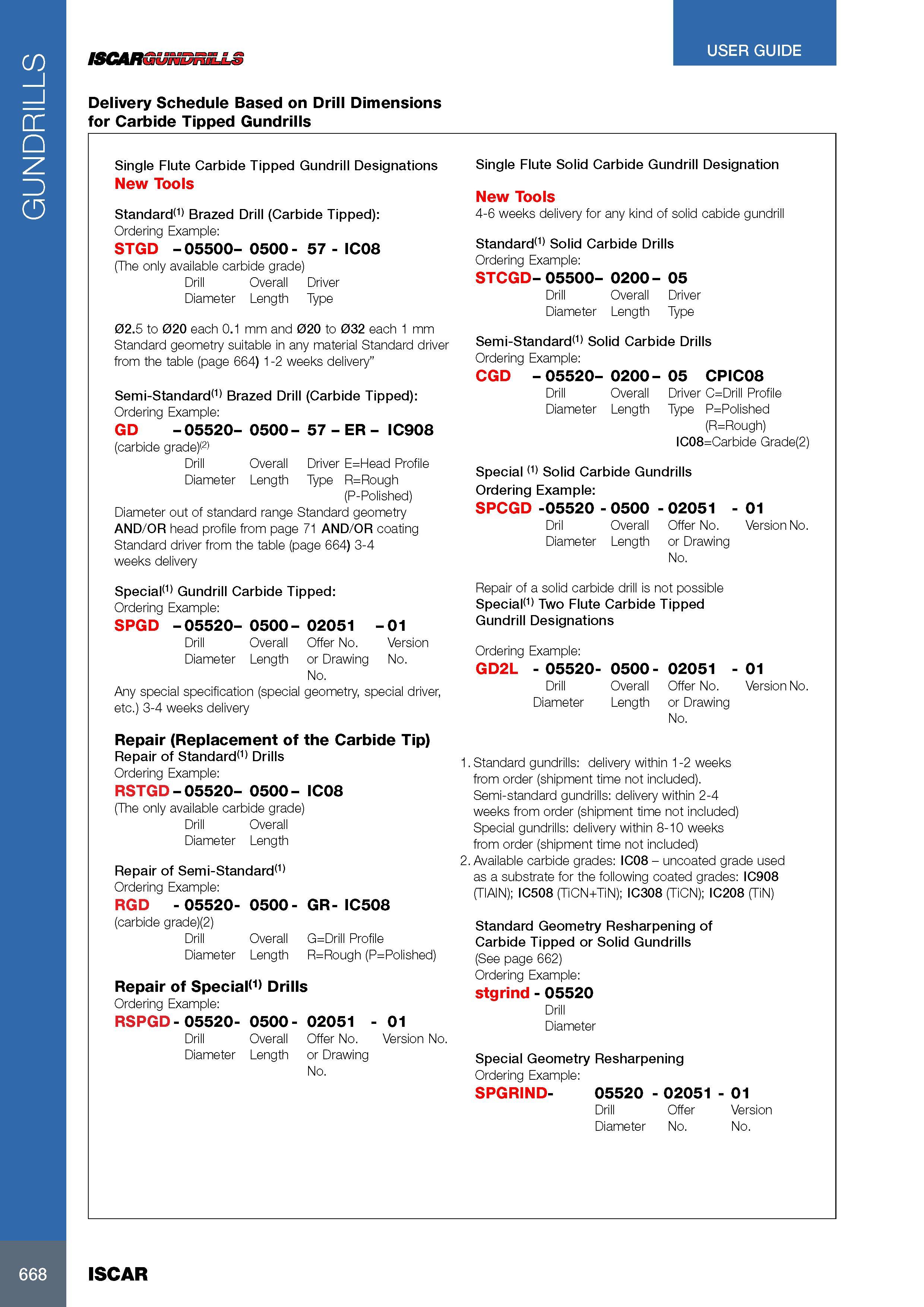

GUNDRILLS ISCAROUNL Delivery Schedule Based on Drill Размеры в мм Dimensions for Carbide Tipped Gundrills USER GUIDE Single Flute Carbide Tipped Gundrill Designations New Tools Standard(1) Brazed Drill (Carbide Tipped): Ordering Example: STGD - 05500- 0500 - 57 - IC08 (The only available carbide grade) Drill Overall Driver Diameter Length Type 02.5 to 020 each 0.1 mm and 020 to 032 each 1 mm Standard geometry suitable in any material Standard driver from the table (page 664) 1-2 weeks delivery” Semi-Standard(1) Brazed Drill (Carbide Tipped): Ordering Example: GD - 05520- 0500 - 57 - ER - IC908 (carbide grade)<2> Drill Overall Driver E=Head Profile Diameter Length Type R=Rough (P-Polished) Diameter out of standard range Standard geometry AND/OR head profile from page 71 AND/OR coating Standard driver from the table (page 664) 3-4 weeks delivery Special(1) Gundrill Carbide Tipped: Ordering Example: SPGD -05520- 0500- 02051 - 01 Drill Overall Offer No. Version Diameter Length or Drawing No. No. Any special specification (special geometry, special driver, etc.) 3-4 weeks delivery Repair (Replacement of the Carbide Tip) Repair of Standard(1) Drills Ordering Example: RSTGD - 05520- 0500 - IC08 (The only available carbide grade) Drill Overall Diameter Length Repair of Semi-Standard(1) Ordering Example: RGD - 05520- 0500 - GR - IC508 (carbide grade)(2) Drill Overall Diameter Length G=Drill Profile R=Rough (P=Polished) Repair of Special(1) Drills Ordering Example: RSPGD - 05520- 0500 - Drill Overall Diameter Length 02051 - Offer No. or Drawing No. 01 Version No. Single Flute Solid Carbide Gundrill Обозначение Designation New Tools 4-6 weeks delivery for any kind of solid cabide gundrill Standard(1) Solid Carbide Drills Ordering Example: STCGD- 05500- 0200 - 05 Drill Overall Driver Diameter Length Type Semi-Standard(1) Solid Carbide Drills Ordering Example: CGD - 05520- 0200 - 05 CPIC08 Drill Overall Driver C=Drill Profile Diameter Length Type P=Polished (R=Rough) IC08=Carbide Grade(2) Special (1) Solid Carbide Gundrills Ordering Example: SPCGD -05520 - 0500 - 02051 - Dril Overall Offer No. Diameter Length or Drawing No. Repair of a solid carbide drill is not possible Special(1) Two Flute Carbide Tipped Gundrill Designations 01 Version No. Ordering Example: GD2L - 05520- 0500 - Drill Overall Diameter Length 02051 - Offer No. or Drawing No. 01 Version No. 1. Standard gundrills: delivery within 1-2 weeks from order (shipment time not included). Semi-standard gundrills: delivery within 2-4 weeks from order (shipment time not included) Special gundrills: delivery within 8-10 weeks from order (shipment time not included) 2. Available carbide grades: IC08 - uncoated grade used as a substrate for the following coated grades: IC908 (TIAlN); IC508 (TiCN+TiN); IC308 (TiCN); IC208 (TiN) Standard Geometry Resharpening of Carbide Tipped or Solid Gundrills (See page 662) Ordering Example: stgrind - 05520 Drill Diameter Special Geometry Resharpening Ordering Example: SPGRIND- 05520 - 02051 - 01 Drill Offer Version Diameter No. No. 668 ISCAR
