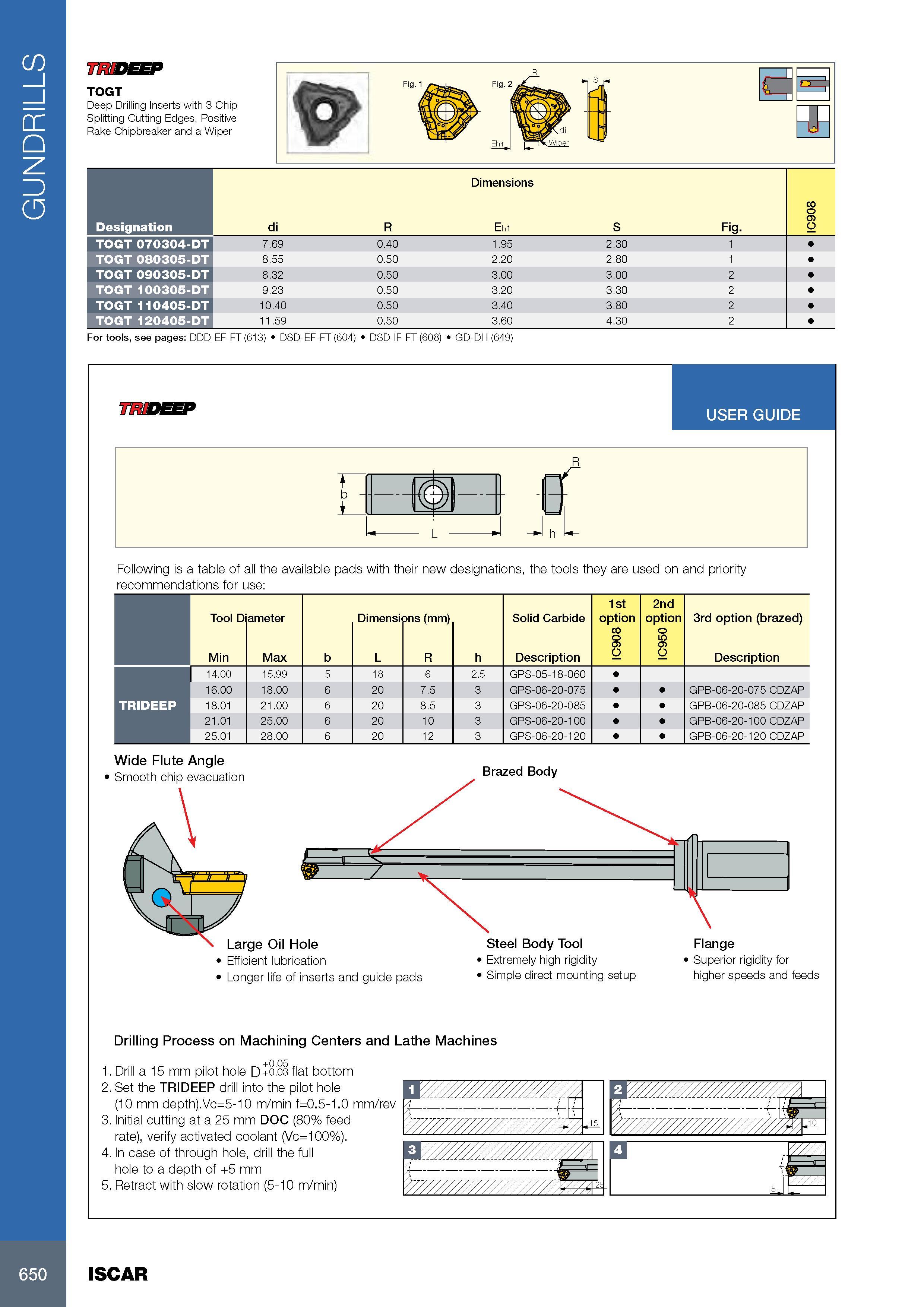

GUNDRILLS Размеры в мм Dimensions Обозначение Designation di R Eh1 S Fig. IC908 TOGT 070304-DT 7.69 0.40 1.95 2.30 1 TOGT 080305-DT 8.55 0.50 2.20 2.80 1 TOGT 090305-DT 8.32 0.50 3.00 3.00 2 TOGT 100305-DT 9.23 0.50 3.20 3.30 2 TOGT 110405-DT 10.40 0.50 3.40 3.80 2 TOGT 120405-DT 11.59 0.50 3.60 4.30 2 For tools, see pages: DDD-EF-FT (613) DSD-EF-FT (604) DSD-IF-FT (608) GD-DH (649) USER GUIDE R b - n L > JhL Following is a table of all the available pads with their new designations, the tools they are used on and priority recommendations for use: TRIDEEP Tool D Min ameter Max b Dimensi L >ns (mm) R h Solid Carbide Description 1st option co 0 05 IC 2nd option 0 5 05 IC 3rd option (brazed) Description 14.00 15.99 5 18 6 2.5 GPS-05-18-060 16.00 18.00 6 20 7.5 3 GPS-06-20-075 GPB-06-20-075 CDZAP 18.01 21.00 6 20 8.5 3 GPS-06-20-085 GPB-06-20-085 CDZAP 21.01 25.00 6 20 10 3 GPS-06-20-100 GPB-06-20-100 CDZAP 25.01 28.00 6 20 12 3 GPS-06-20-120 GPB-06-20-120 CDZAP Longer life of inserts and guide pads Simple direct mounting setup higher speeds and feeds Drilling Process on Machining Centers and Lathe Machines 1. Drill a 15 mm pilot hole D +a03flat bottom 2. Set the TRIDEEP drill into the pilot hole (10 mm depth).Vc=5-10 m/min f=0.5-1.0 mm/rev 3. Initial cutting at a 25 mm DOC (80% feed rate), verify activated coolant (Vc=100%). 4. In case of through hole, drill the full hole to a depth of +5 mm 5. Retract with slow rotation (5-10 m/min) 650 ISCAR
