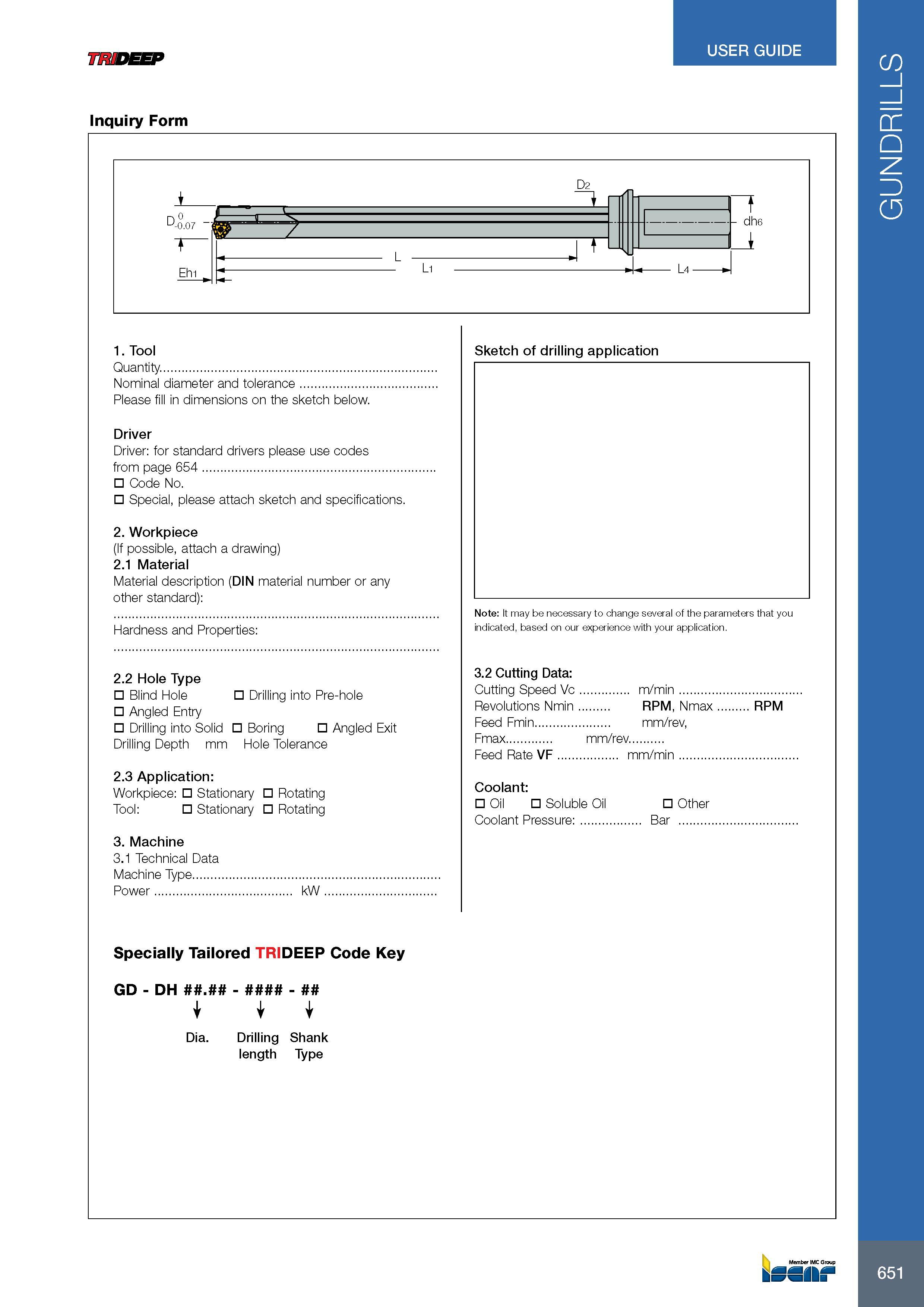

USER GUIDE Inquiry Form 1. Tool Quantity Nominal diameter and tolerance Please fill in dimensions on the sketch below. Driver Driver: for standard drivers please use codes from page 654 Code No. Special, please attach sketch and specifications. 2. Workpiece (If possible, attach a drawing) 2.1 Material Material description (DIN material number or any other standard): Hardness and Properties: 2.2 Hole Type Blind Hole Drilling into Pre-hole Angled Entry Drilling into Solid Boring Angled Exit Drilling Depth mm Hole Tolerance 2.3 Application: Workpiece: Stationary Rotating Tool: Stationary Rotating 3. Machine 3.1 Technical Data Machine Type Power kW Sketch of drilling application Note: It may be necessary to change several of the parameters that you indicated, based on our experience with your application. 3.2 Cutting Data: Cutting Speed Vc m/min Revolutions Nmin .. RPM, Nmax RPM Feed Fmin mm/rev, Fmax mm/rev .. Feed Rate VF .. mm/min Coolant: Oil Soluble Oil Other Coolant Pressure: .. Bar .. Specially Tailored TRIDEEP Code Key GD - DH II Dia. Drilling Shank length Type 651 GUNDRILLS
