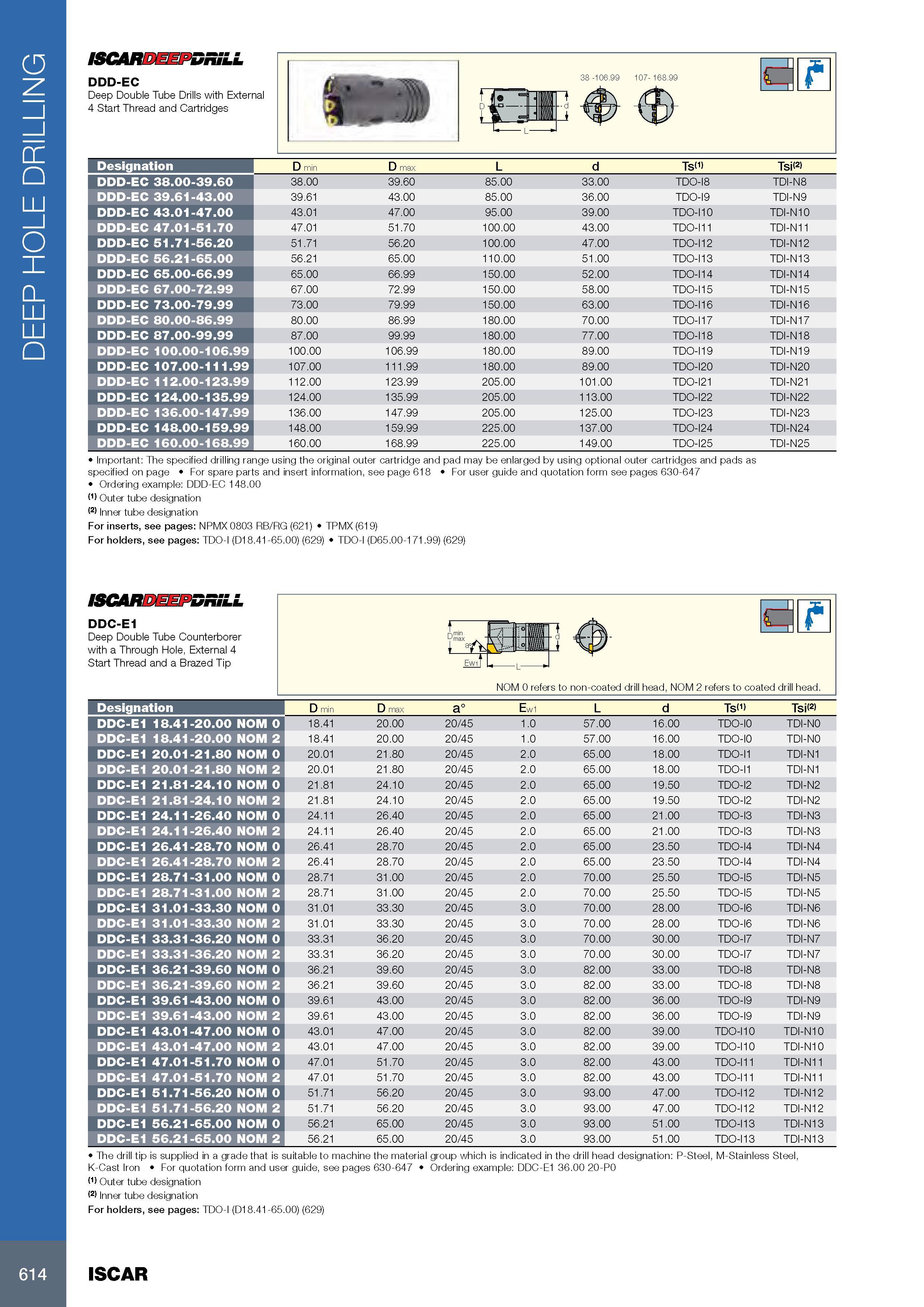

DEEP HOLE DRILLING ISCARDEEPDRiLL DDD-EC Deep Double Tube Drills with External 4 Start Thread and Cartridges r 38 -106.99 107- 168.99 a f6 Обозначение Designation D min D max L d Ts <1> Tsi (2) DDD-EC 38.00-39.60 38.00 39.60 85.00 33.00 TDO-I8 TDI-N8 DDD-EC 39.61-43.00 39.61 43.00 85.00 36.00 TDO-I9 TDI-N9 DDD-EC 43.01-47.00 43.01 47.00 95.00 39.00 TDO-I10 TDI-N10 DDD-EC 47.01-51.70 47.01 51.70 100.00 43.00 TDO-I11 TDI-N11 DDD-EC 51.71-56.20 51.71 56.20 100.00 47.00 TDO-I12 TDI-N12 DDD-EC 56.21-65.00 56.21 65.00 110.00 51.00 TDO-I13 TDI-N13 DDD-EC 65.00-66.99 65.00 66.99 150.00 52.00 TDO-I14 TDI-N14 DDD-EC 67.00-72.99 67.00 72.99 150.00 58.00 TDO-I15 TDI-N15 DDD-EC 73.00-79.99 73.00 79.99 150.00 63.00 TDO-I16 TDI-N16 DDD-EC 80.00-86.99 80.00 86.99 180.00 70.00 TDO-I17 TDI-N17 DDD-EC 87.00-99.99 87.00 99.99 180.00 77.00 TDO-I18 TDI-N18 DDD-EC 100.00-106.99 100.00 106.99 180.00 89.00 TDO-I19 TDI-N19 DDD-EC 107.00-111.99 107.00 111.99 180.00 89.00 TDO-I20 TDI-N20 DDD-EC 112.00-123.99 112.00 123.99 205.00 101.00 TDO-I21 TDI-N21 DDD-EC 124.00-135.99 124.00 135.99 205.00 113.00 TDO-I22 TDI-N22 DDD-EC 136.00-147.99 136.00 147.99 205.00 125.00 TDO-I23 TDI-N23 DDD-EC 148.00-159.99 148.00 159.99 225.00 137.00 TDO-I24 TDI-N24 DDD-EC 160.00-168.99 160.00 168.99 225.00 149.00 TDO-I25 TDI-N25 Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on page For spare parts and insert information, see page 618 For user guide and quotation form see pages 630-647 Ordering example: DDD-EC 148.00 (1) Outer tube designation (2) Inner tube designation For inserts, see pages: NPMX 0803 RB/RG (621) TPMX (619) For holders, see pages: TDO-I (D18.41-65.00) (629) TDO-I (D65.00-171.99) (629) ISCAR DDC-E1 Deep Double Tube Counterborer with a Through Hole, External 4 Start Thread and a Brazed Tip Обозначение Designation D min D max a° Ew1 L d Ts <1> Tsi (2) DDC-E1 18.41-20.00 NOM 0 18.41 20.00 20/45 1.0 57.00 16.00 TDO-I0 TDI-N0 DDC-E1 18.41-20.00 NOM 2 18.41 20.00 20/45 1.0 57.00 16.00 TDO-I0 TDI-N0 DDC-E1 20.01-21.80 NOM 0 20.01 21.80 20/45 2.0 65.00 18.00 TDO-I1 TDI-N1 DDC-E1 20.01-21.80 NOM 2 20.01 21.80 20/45 2.0 65.00 18.00 TDO-I1 TDI-N1 DDC-E1 21.81-24.10 NOM 0 21.81 24.10 20/45 2.0 65.00 19.50 TDO-I2 TDI-N2 DDC-E1 21.81-24.10 NOM 2 21.81 24.10 20/45 2.0 65.00 19.50 TDO-I2 TDI-N2 DDC-E1 24.11-26.40 NOM 0 24.11 26.40 20/45 2.0 65.00 21.00 TDO-I3 TDI-N3 DDC-E1 24.11-26.40 NOM 2 24.11 26.40 20/45 2.0 65.00 21.00 TDO-I3 TDI-N3 DDC-E1 26.41-28.70 NOM 0 26.41 28.70 20/45 2.0 65.00 23.50 TDO-I4 TDI-N4 DDC-E1 26.41-28.70 NOM 2 26.41 28.70 20/45 2.0 65.00 23.50 TDO-I4 TDI-N4 DDC-E1 28.71-31.00 NOM 0 28.71 31.00 20/45 2.0 70.00 25.50 TDO-I5 TDI-N5 DDC-E1 28.71-31.00 NOM 2 28.71 31.00 20/45 2.0 70.00 25.50 TDO-I5 TDI-N5 DDC-E1 31.01-33.30 NOM 0 31.01 33.30 20/45 3.0 70.00 28.00 TDO-I6 TDI-N6 DDC-E1 31.01-33.30 NOM 2 31.01 33.30 20/45 3.0 70.00 28.00 TDO-I6 TDI-N6 DDC-E1 33.31-36.20 NOM 0 33.31 36.20 20/45 3.0 70.00 30.00 TDO-I7 TDI-N7 DDC-E1 33.31-36.20 NOM 2 33.31 36.20 20/45 3.0 70.00 30.00 TDO-I7 TDI-N7 DDC-E1 36.21-39.60 NOM 0 36.21 39.60 20/45 3.0 82.00 33.00 TDO-I8 TDI-N8 DDC-E1 36.21-39.60 NOM 2 36.21 39.60 20/45 3.0 82.00 33.00 TDO-I8 TDI-N8 DDC-E1 39.61-43.00 NOM 0 39.61 43.00 20/45 3.0 82.00 36.00 TDO-I9 TDI-N9 DDC-E1 39.61-43.00 NOM 2 39.61 43.00 20/45 3.0 82.00 36.00 TDO-I9 TDI-N9 DDC-E1 43.01-47.00 NOM 0 43.01 47.00 20/45 3.0 82.00 39.00 TDO-I10 TDI-N10 DDC-E1 43.01-47.00 NOM 2 43.01 47.00 20/45 3.0 82.00 39.00 TDO-I10 TDI-N10 DDC-E1 47.01-51.70 NOM 0 47.01 51.70 20/45 3.0 82.00 43.00 TDO-I11 TDI-N11 DDC-E1 47.01-51.70 NOM 2 47.01 51.70 20/45 3.0 82.00 43.00 TDO-I11 TDI-N11 DDC-E1 51.71-56.20 NOM 0 51.71 56.20 20/45 3.0 93.00 47.00 TDO-I12 TDI-N12 DDC-E1 51.71-56.20 NOM 2 51.71 56.20 20/45 3.0 93.00 47.00 TDO-I12 TDI-N12 DDC-E1 56.21-65.00 NOM 0 56.21 65.00 20/45 3.0 93.00 51.00 TDO-I13 TDI-N13 DDC-E1 56.21-65.00 NOM 2 56.21 65.00 20/45 3.0 93.00 51.00 TDO-I13 TDI-N13 The drill tip is supplied in a grade that is suitable to machine the material group which is indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron For quotation form and user guide, see pages 630-647 Ordering example: DDC-E1 36.00 20-P0 (1) Outer tube designation (2) Inner tube designation For holders, see pages: TDO-I (D18.41-65.00) (629) 614 ISCAR
