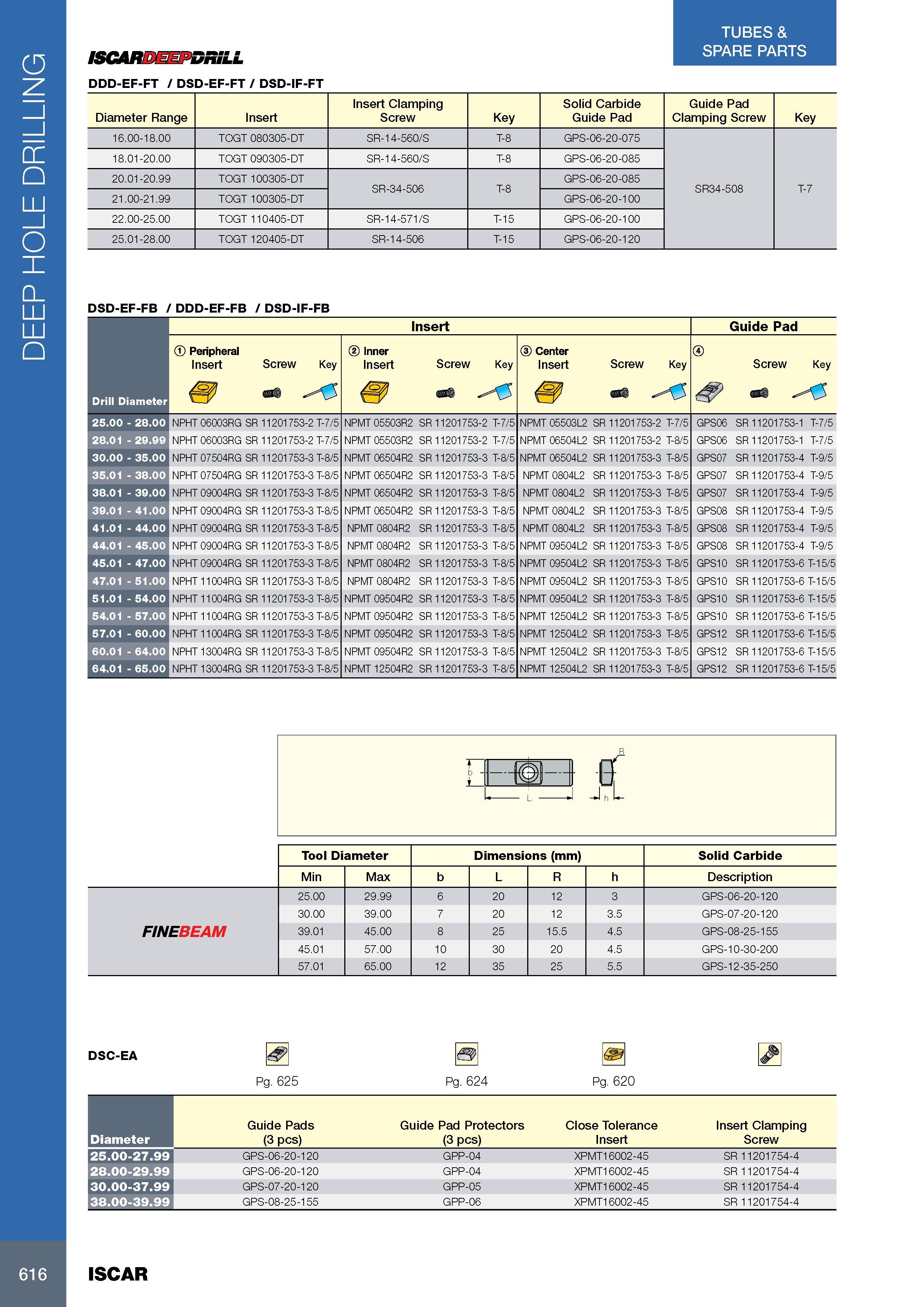

DEEP HOLE DRILLING TUBES & SPARE PARTS ISCARDEEPDSSLL DDD-EF-FT / DSD-EF-FT / DSD-IF-FT Diameter Range Insert Insert Clamping Screw Key Solid Carbide Guide Pad Guide Pad Clamping Screw Key 16.00-18.00 TOGT 080305-DT SR-14-560/S T-8 GPS-06-20-075 SR34-508 T-7 18.01-20.00 TOGT 090305-DT SR-14-560/S T-8 GPS-06-20-085 20.01-20.99 TOGT 100305-DT SR-34-506 T-8 GPS-06-20-085 21.00-21.99 TOGT 100305-DT GPS-06-20-100 22.00-25.00 TOGT 110405-DT SR-14-571/S T-15 GPS-06-20-100 25.01-28.00 TOGT 120405-DT SR-14-506 T-15 GPS-06-20-120 DSD-EF-FB / DDD-EF-FB / DSD-IF-FB Drill Diameter Insert Guide Pad Peripheral Insert Screw Key a (D Inner Insert Screw Key mu Center Insert Screw Key 8 Screw Key 8 -= 0 25.00 - 28.00 NPHT 06003RG SR 11201753-2 T-7/5 NPMT 05503R2 SR 11201753-2 T-7/5 NPMT 05503L2 SR 11201753-2 T-7/5 GPS06 SR 11201753-1 T-7/5 28.01 - 29.99 NPHT 06003RG SR 11201753-2 T-7/5 NPMT 05503R2 SR 11201753-2 T-7/5 NPMT 06504L2 SR 11201753-2 T-8/5 GPS06 SR 11201753-1 T-7/5 30.00 - 35.00 NPHT 07504RG SR 11201753-3 T-8/5 NPMT 06504R2 SR 11201753-3 T-8/5 NPMT 06504L2 SR 11201753-3 T-8/5 GPS07 SR 11201753-4 T-9/5 35.01 - 38.00 NPHT 07504RG SR 11201753-3 T-8/5 NPMT 06504R2 SR 11201753-3 T-8/5 NPMT 0804L2 SR 11201753-3 T-8/5 GPS07 SR 11201753-4 T-9/5 38.01 - 39.00 NPHT 09004RG SR 11201753-3 T-8/5 NPMT 06504R2 SR 11201753-3 T-8/5 NPMT 0804L2 SR 11201753-3 T-8/5 GPS07 SR 11201753-4 T-9/5 39.01 - 41.00 NPHT 09004RG SR 11201753-3 T-8/5 NPMT 06504R2 SR 11201753-3 T-8/5 NPMT 0804L2 SR 11201753-3 T-8/5 GPS08 SR 11201753-4 T-9/5 41.01 - 44.00 NPHT 09004RG SR 11201753-3 T-8/5 NPMT 0804R2 SR 11201753-3 T-8/5 NPMT 0804L2 SR 11201753-3 T-8/5 GPS08 SR 11201753-4 T-9/5 44.01 - 45.00 NPHT 09004RG SR 11201753-3 T-8/5 NPMT 0804R2 SR 11201753-3 T-8/5 NPMT 09504L2 SR 11201753-3 T-8/5 GPS08 SR 11201753-4 T-9/5 45.01 - 47.00 NPHT 09004RG SR 11201753-3 T-8/5 NPMT 0804R2 SR 11201753-3 T-8/5 NPMT 09504L2 SR 11201753-3 T-8/5 GPS10 SR 11201753-6 T-15/5 47.01 - 51.00 NPHT 11004RG SR 11201753-3 T-8/5 NPMT 0804R2 SR 11201753-3 T-8/5 NPMT 09504L2 SR 11201753-3 T-8/5 GPS10 SR 11201753-6 T-15/5 51.01 - 54.00 NPHT 11004RG SR 11201753-3 T-8/5 NPMT 09504R2 SR 11201753-3 T-8/5 NPMT 09504L2 SR 11201753-3 T-8/5 GPS10 SR 11201753-6 T-15/5 54.01 - 57.00 NPHT 11004RG SR 11201753-3 T-8/5 NPMT 09504R2 SR 11201753-3 T-8/5 NPMT 12504L2 SR 11201753-3 T-8/5 GPS10 SR 11201753-6 T-15/5 57.01 - 60.00 NPHT 11004RG SR 11201753-3 T-8/5 NPMT 09504R2 SR 11201753-3 T-8/5 NPMT 12504L2 SR 11201753-3 T-8/5 GPS12 SR 11201753-6 T-15/5 60.01 - 64.00 NPHT 13004RG SR 11201753-3 T-8/5 NPMT 09504R2 SR 11201753-3 T-8/5 NPMT 12504L2 SR 11201753-3 T-8/5 GPS12 SR 11201753-6 T-15/5 64.01 - 65.00 NPHT 13004RG SR 11201753-3 T-8/5 NPMT 12504R2 SR 11201753-3 T-8/5 NPMT 12504L2 SR 11201753-3 T-8/5 GPS12 SR 11201753-6 T-15/5 Tool Diameter Размеры в мм Dimensions (mm) Solid Carbide Min Max b L R h Description 25.00 29.99 6 20 12 3 GPS-06-20-120 30.00 39.00 7 20 12 3.5 GPS-07-20-120 FINEBEAM 39.01 45.00 8 25 15.5 4.5 GPS-08-25-155 45.01 57.00 10 30 20 4.5 GPS-10-30-200 57.01 65.00 12 35 25 5.5 GPS-12-35-250 DSC-EA Pg. 625 Pg. 624 Pg. 620 Guide Pads (3 pcs) Guide Pad Protectors (3 pcs) Close Tolerance Insert Insert Clamping Screw GPS-06-20-120 GPP-04 XPMT16002-45 SR 11201754-4 GPS-06-20-120 GPP-04 XPMT16002-45 SR 11201754-4 GPS-07-20-120 GPP-05 XPMT16002-45 SR 11201754-4 GPS-08-25-155 GPP-06 XPMT16002-45 SR 11201754-4 Diameter 25.00-27.99 28.00-29.99 30.00-37.99 38.00-39.99 616 ISCAR
