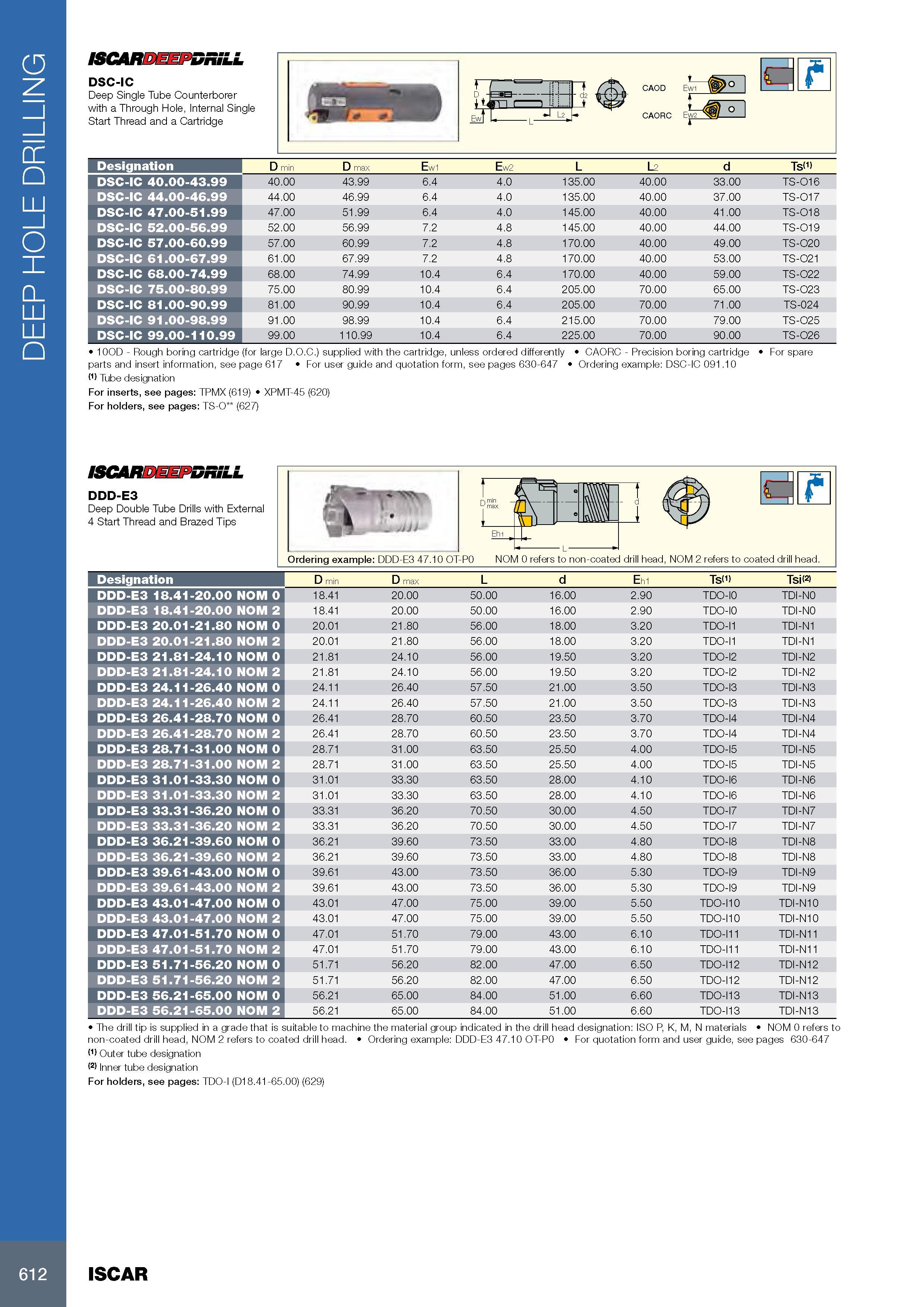

DEEP HOLE DRILLING ISCARDEEPDRiLL DSC-IC Deep Single Tube Counterborer with a Through Hole, Internal Single Start Thread and a Cartridge Обозначение Designation D min D max Ew1 Ew2 L L2 d Ts DSC-IC 40.00-43.99 40.00 43.99 6.4 4.0 135.00 40.00 33.00 TS-O16 DSC-IC 44.00-46.99 44.00 46.99 6.4 4.0 135.00 40.00 37.00 TS-O17 DSC-IC 47.00-51.99 47.00 51.99 6.4 4.0 145.00 40.00 41.00 TS-O18 DSC-IC 52.00-56.99 52.00 56.99 7.2 4.8 145.00 40.00 44.00 TS-O19 DSC-IC 57.00-60.99 57.00 60.99 7.2 4.8 170.00 40.00 49.00 TS-O20 DSC-IC 61.00-67.99 61.00 67.99 7.2 4.8 170.00 40.00 53.00 TS-O21 DSC-IC 68.00-74.99 68.00 74.99 10.4 6.4 170.00 40.00 59.00 TS-O22 DSC-IC 75.00-80.99 75.00 80.99 10.4 6.4 205.00 70.00 65.00 TS-O23 DSC-IC 81.00-90.99 81.00 90.99 10.4 6.4 205.00 70.00 71.00 TS-024 DSC-IC 91.00-98.99 91.00 98.99 10.4 6.4 215.00 70.00 79.00 TS-O25 DSC-IC 99.00-110.99 99.00 110.99 10.4 6.4 225.00 70.00 90.00 TS-O26 10OD - Rough boring cartridge (for large D.O.C.) supplied with the cartridge, unless ordered differently CAORC - Precision boring cartridge For spare parts and insert information, see page 617 For user guide and quotation form, see pages 630-647 Ordering example: DSC-IC 091.10 (1) Tube designation For inserts, see pages: TPMX (619) XPMT-45 (620) For holders, see pages: TS-O (627) ISCARDEEPDRiLL DDD-E3 Deep Double Tube Drills with External 4 Start Thread and Brazed Tips Обозначение Designation D min D max L d Eh1 Ts Tsi (2) DDD-E3 18.41-20.00 NOM 0 18.41 20.00 50.00 16.00 2.90 TDO-I0 TDI-N0 DDD-E3 18.41-20.00 NOM 2 18.41 20.00 50.00 16.00 2.90 TDO-I0 TDI-N0 DDD-E3 20.01-21.80 NOM 0 20.01 21.80 56.00 18.00 3.20 TDO-I1 TDI-N1 DDD-E3 20.01-21.80 NOM 2 20.01 21.80 56.00 18.00 3.20 TDO-I1 TDI-N1 DDD-E3 21.81-24.10 NOM 0 21.81 24.10 56.00 19.50 3.20 TDO-I2 TDI-N2 DDD-E3 21.81-24.10 NOM 2 21.81 24.10 56.00 19.50 3.20 TDO-I2 TDI-N2 DDD-E3 24.11-26.40 NOM 0 24.11 26.40 57.50 21.00 3.50 TDO-I3 TDI-N3 DDD-E3 24.11-26.40 NOM 2 24.11 26.40 57.50 21.00 3.50 TDO-I3 TDI-N3 DDD-E3 26.41-28.70 NOM 0 26.41 28.70 60.50 23.50 3.70 TDO-I4 TDI-N4 DDD-E3 26.41-28.70 NOM 2 26.41 28.70 60.50 23.50 3.70 TDO-I4 TDI-N4 DDD-E3 28.71-31.00 NOM 0 28.71 31.00 63.50 25.50 4.00 TDO-I5 TDI-N5 DDD-E3 28.71-31.00 NOM 2 28.71 31.00 63.50 25.50 4.00 TDO-I5 TDI-N5 DDD-E3 31.01-33.30 NOM 0 31.01 33.30 63.50 28.00 4.10 TDO-I6 TDI-N6 DDD-E3 31.01-33.30 NOM 2 31.01 33.30 63.50 28.00 4.10 TDO-I6 TDI-N6 DDD-E3 33.31-36.20 NOM 0 33.31 36.20 70.50 30.00 4.50 TDO-I7 TDI-N7 DDD-E3 33.31-36.20 NOM 2 33.31 36.20 70.50 30.00 4.50 TDO-I7 TDI-N7 DDD-E3 36.21-39.60 NOM 0 36.21 39.60 73.50 33.00 4.80 TDO-I8 TDI-N8 DDD-E3 36.21-39.60 NOM 2 36.21 39.60 73.50 33.00 4.80 TDO-I8 TDI-N8 DDD-E3 39.61-43.00 NOM 0 39.61 43.00 73.50 36.00 5.30 TDO-I9 TDI-N9 DDD-E3 39.61-43.00 NOM 2 39.61 43.00 73.50 36.00 5.30 TDO-I9 TDI-N9 DDD-E3 43.01-47.00 NOM 0 43.01 47.00 75.00 39.00 5.50 TDO-I10 TDI-N10 DDD-E3 43.01-47.00 NOM 2 43.01 47.00 75.00 39.00 5.50 TDO-I10 TDI-N10 DDD-E3 47.01-51.70 NOM 0 47.01 51.70 79.00 43.00 6.10 TDO-I11 TDI-N11 DDD-E3 47.01-51.70 NOM 2 47.01 51.70 79.00 43.00 6.10 TDO-I11 TDI-N11 DDD-E3 51.71-56.20 NOM 0 51.71 56.20 82.00 47.00 6.50 TDO-I12 TDI-N12 DDD-E3 51.71-56.20 NOM 2 51.71 56.20 82.00 47.00 6.50 TDO-I12 TDI-N12 DDD-E3 56.21-65.00 NOM 0 56.21 65.00 84.00 51.00 6.60 TDO-I13 TDI-N13 DDD-E3 56.21-65.00 NOM 2 56.21 65.00 84.00 51.00 6.60 TDO-I13 TDI-N13 The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: ISO P, K, M, N materials NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head. Ordering example: DDD-E3 47.10 OT-P0 For quotation form and user guide, see pages 630-647 (1) Outer tube designation (2) Inner tube designation For holders, see pages: TDO-I (D18.41-65.00) (629) 612 ISCAR
