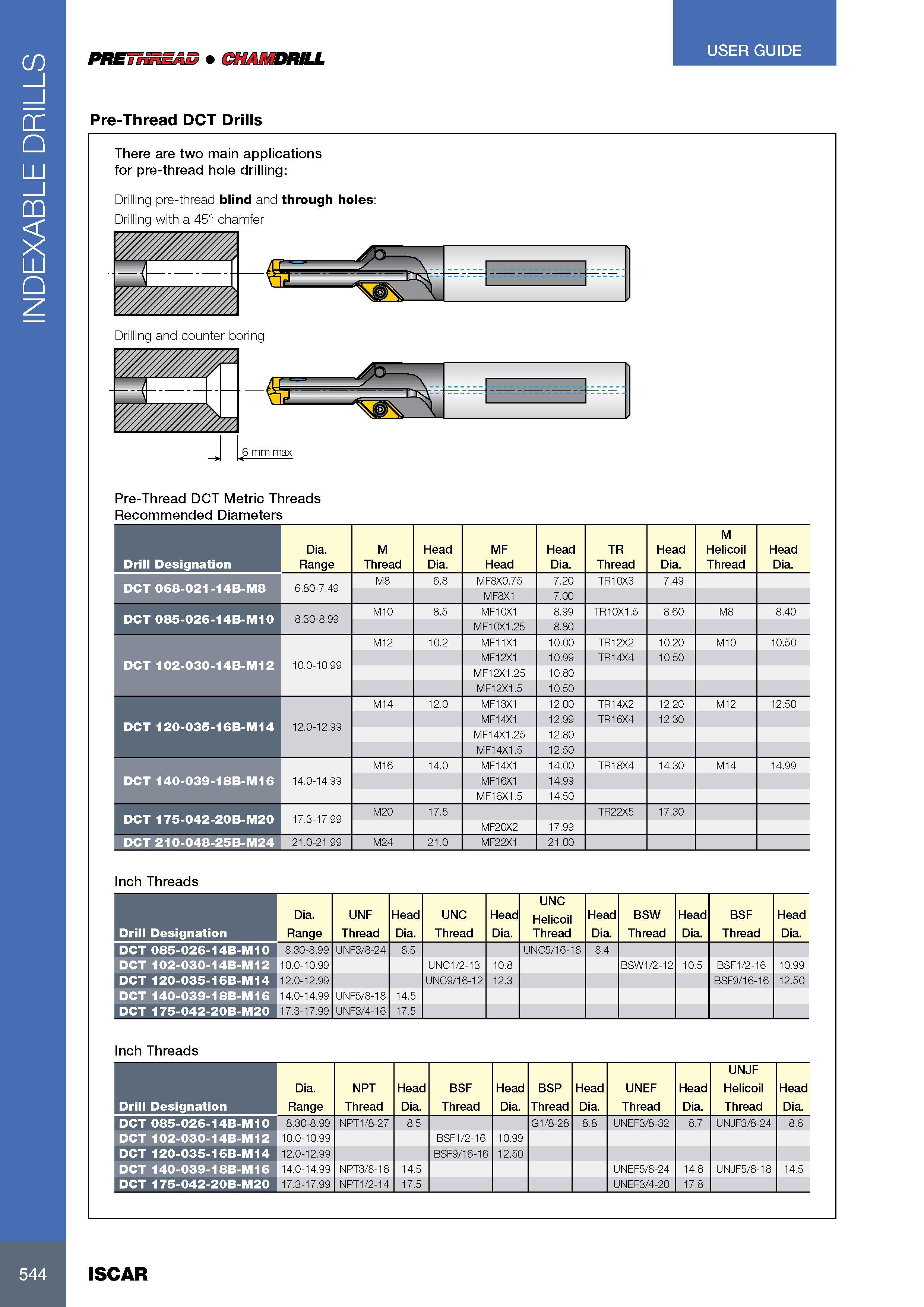

INDEXABLE DRILLS PREWsmm (mmmnu. Pre-Thread DCT Drills USER GUIDE There are two main applications for pre-thread hole drilling: Drilling pre-thread blind and through holes: Drilling with a 45° chamfer Pre-Thread DCT Metric Threads Recommended Diameters Drill Обозначение Designation Dia. Range M Thread Head Dia. MF Head Head Dia. TR Thread Head Dia. M Helicoil Thread Head Dia. DCT 068-021-14B-M8 6.80-7.49 M8 6.8 MF8X0.75 7.20 TR10X3 7.49 MF8X1 7.00 DCT 085-026-14B-M10 8.30-8.99 M10 8.5 MF10X1 8.99 TR10X1.5 8.60 M8 8.40 MF10X1.25 8.80 M12 10.2 MF11X1 10.00 TR12X2 10.20 M10 10.50 DCT 102-030-14B-M12 10.0-10.99 MF12X1 10.99 TR14X4 10.50 MF12X1.25 10.80 MF12X1.5 10.50 M14 12.0 MF13X1 12.00 TR14X2 12.20 M12 12.50 12.0-12.99 MF14X1 12.99 TR16X4 12.30 MF14X1.25 12.80 MF14X1.5 12.50 M16 14.0 MF14X1 14.00 TR18X4 14.30 M14 14.99 DCT 140-039-18B-M16 14.0-14.99 MF16X1 14.99 MF16X1.5 14.50 17.3-17.99 M20 17.5 TR22X5 17.30 MF20X2 17.99 DCT 210-048-25B-M24 21.0-21.99 M24 21.0 MF22X1 21.00 Inch Threads Drill Обозначение Designation Range UNF Thread Head Dia. UNC Thread Head Dia. UNC Helicoil Thread Head Dia. BSW Thread Head Dia. BSF Thread Head Dia. DCT 085-026-14B-M10 I UNF3/8-24 8.5 UNC5/16-18 8.4 DCT 102-030-14B-M12 10.0-10.99 UNC1/2-13 10.8 BSW1/2-12 10.5 BSF1/2-16 10.99 DCT 120-035-16B-M14 12.0-12.99 UNC9/16-12 12.3 BSF9/16-16 12.50 DCT 140-039-18B-M1W UNF5/8-18 14.5 DCT 175-042-20B-M20 u UNF3/4-16 17.5 Inch Threads Drill Обозначение Designation Range NPT Thread Head Dia. BSF Thread Head Dia. BSP Thread Head Dia. UNEF Thread Head Dia. UNJF Helicoil Thread Head Dia. DCT 085-026-14B-M10 I NPT1/8-27 8.5 G1/8-28 8.8 UNEF3/8-32 8.7 UNJF3/8-24 8.6 DCT 102-030-14B-M12 1 BSF1/2-16 10.99 DCT 120-035-16B-M14 12.0-12.99 BSF9/16-16 12.50 DCT 140-039-18B-M16 1 NPT3/8-18 14.5 UNEF5/8-24 14.8 UNJF5/8-18 14.5 DCT 175-042-20B-M20 17.3-17.99 NPT1/2-14 17.5 UNEF3/4-20 17.8 544 ISCAR
