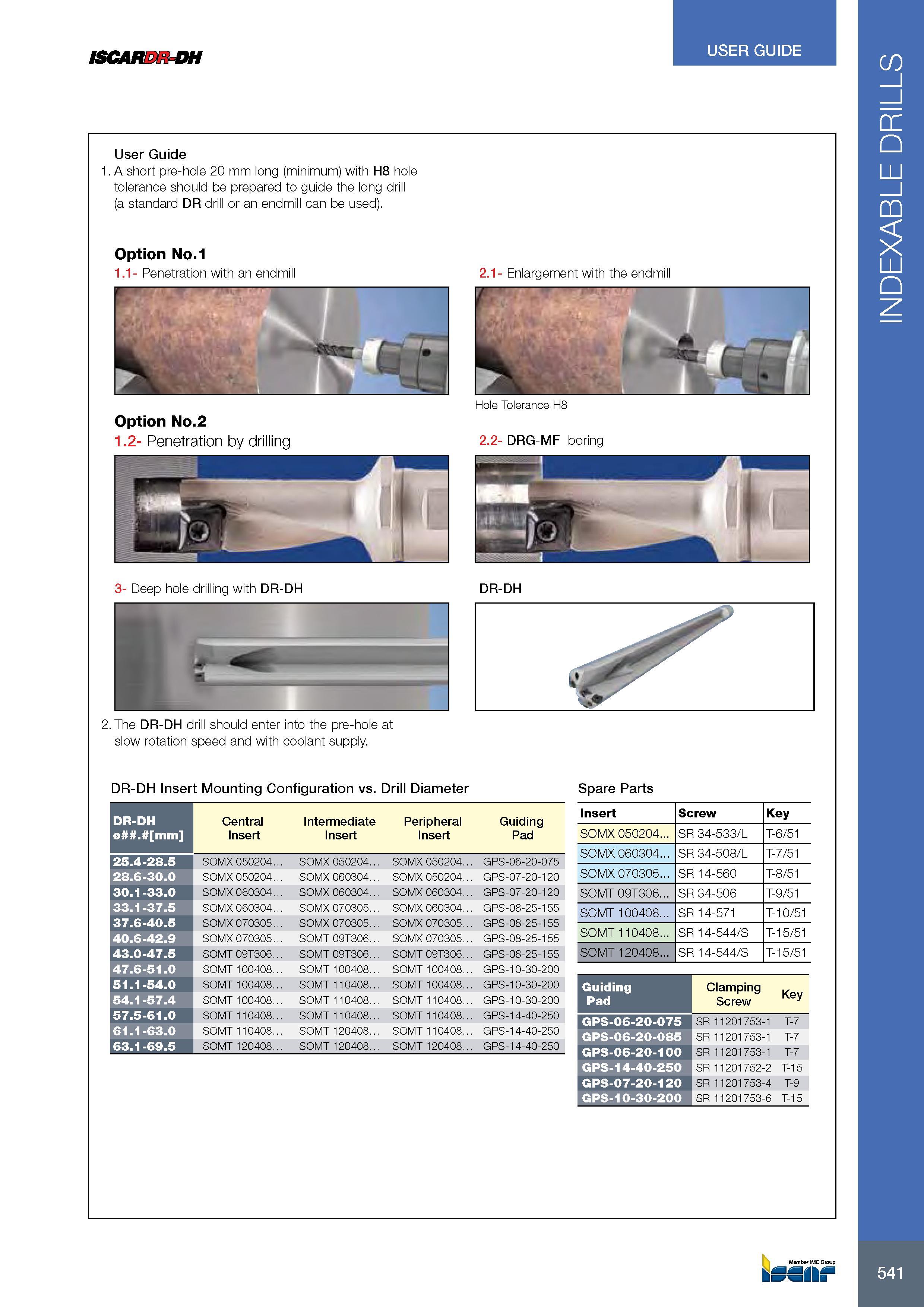

ISCAR DH USER GUIDE User Guide 1. A short pre-hole 20 mm long (minimum) with H8 hole tolerance should be prepared to guide the long drill (a standard DR drill or an endmill can be used). Option No.1 1.1- Penetration with an endmill Option No.2 1.2- Penetration by drilling 3- Deep hole drilling with DR-DH 2. The DR-DH drill should enter into the pre-hole at slow rotation speed and with coolant supply. 2.1- Enlargement with the endmill Hole Tolerance H8 2.2- DRG-MF boring DR-DH Insert Mounting Configuration vs. Drill Diameter DR-DH 0 mm Central Insert Intermediate Insert Peripheral Insert Guiding Pad 25.4-28.5 SOMX 050204... SOMX 050204. SOMX 050204. GPS-06-20-075 28.6-30.0 SOMX 050204. SOMX 060304. SOMX 050204. GPS-07-20-120 30.1-33.0 SOMX 060304. SOMX 060304. SOMX 060304. GPS-07-20-120 33.1-37.5 SOMX 060304. SOMX 070305. SOMX 060304. GPS-08-25-155 37.6-40.5 SOMX 070305. SOMX 070305. SOMX 070305. GPS-08-25-155 40.6-42.9 SOMX 070305. SOMT 09T306. SOMX 070305. GPS-08-25-155 43.0-47.5 SOMT 09T306. SOMT 09T306. SOMT 09T306.. GPS-08-25-155 47.6-51.0 SOMT 100408. SOMT 100408. SOMT 100408. GPS-10-30-200 51.1-54.0 SOMT 100408. SOMT 110408. SOMT 100408. GPS-10-30-200 54.1-57.4 SOMT 100408. SOMT 110408. SOMT 110408. GPS-10-30-200 57.5-61.0 SOMT 110408. SOMT 110408. SOMT 110408. GPS-14-40-250 61.1-63.0 SOMT 110408. SOMT 120408. SOMT 110408. GPS-14-40-250 63.1-69.5 SOMT 120408. SOMT 120408. SOMT 120408. GPS-14-40-250 Spare Parts Insert Screw Key SOMX 050204... SR 34-533/L T-6/51 SOMX 060304... SR 34-508/L T-7/51 SOMX 070305... SR 14-560 T-8/51 SOMT 09T306... SR 34-506 T-9/51 SOMT 100408... SR 14-571 T-10/51 SOMT 110408... SR 14-544/S T-15/51 SOMT 120408... SR 14-544/S T-15/51 Guiding Pad Clamping Screw Key GPS-06-20-075 SR 11201753-1 T-7 GPS-06-20-085 SR 11201753-1 T-7 GPS-06-20-100 SR 11201753-1 T-7 GPS-14-40-250 SR 11201752-2 T-15 GPS-07-20-120 SR 11201753-4 T-9 GPS-10-30-200 SR 11201753-6 T-15 541 INDEXABLE DRILLS
