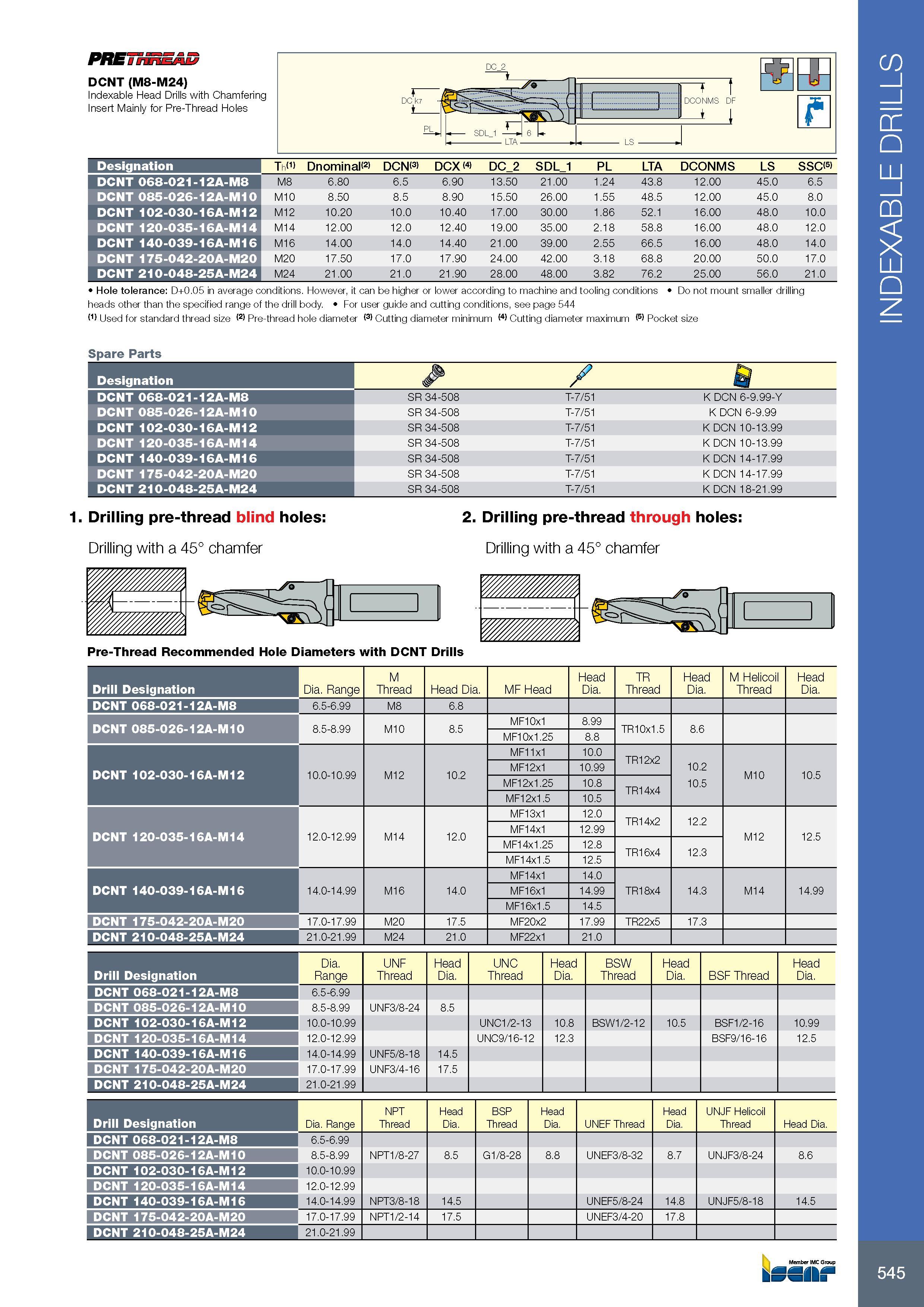

DCNT (M8-M24) Indexable Head Drills with Chamfering Insert Mainly for Pre-Thread Holes Обозначение Designation ThM) Dnominal<2> DCN<3> DCX (4) DC 2 SDL 1 PL LTA DCONMS LS SSC<5> DCNT 068-021-12A-M8 M8 6.80 6.5 6.90 13.50 21.00 1.24 43.8 12.00 45.0 6.5 DCNT 085-026-12A-M10 M10 8.50 8.5 8.90 15.50 26.00 1.55 48.5 12.00 45.0 8.0 DCNT 102-030-16A-M12 M12 10.20 10.0 10.40 17.00 30.00 1.86 52.1 16.00 48.0 10.0 DCNT 120-035-16A-M14 M14 12.00 12.0 12.40 19.00 35.00 2.18 58.8 16.00 48.0 12.0 DCNT 140-039-16A-M16 M16 14.00 14.0 14.40 21.00 39.00 2.55 66.5 16.00 48.0 14.0 DCNT 175-042-20A-M20 M20 17.50 17.0 17.90 24.00 42.00 3.18 68.8 20.00 50.0 17.0 DCNT 210-048-25A-M24 M24 21.00 21.0 21.90 28.00 48.00 3.82 76.2 25.00 56.0 21.0 Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body. For user guide and cutting conditions, see page 544 (1) Used for standard thread size (2) Pre-thread hole diameter (3) Cutting diameter minimum (4) Cutting diameter maximum (5) Pocket size Spare Parts Обозначение Designation / g DCNT 068-021-12A-M8 SR 34-508 T-7/51 K DCN 6-9.99-Y DCNT 085-026-12A-M10 SR 34-508 T-7/51 K DCN 6-9.99 DCNT 102-030-16A-M12 SR 34-508 T-7/51 K DCN 10-13.99 DCNT 120-035-16A-M14 SR 34-508 T-7/51 K DCN 10-13.99 DCNT 140-039-16A-M16 SR 34-508 T-7/51 K DCN 14-17.99 DCNT 175-042-20A-M20 SR 34-508 T-7/51 K DCN 14-17.99 DCNT 210-048-25A-M24 SR 34-508 T-7/51 K DCN 18-21.99 1. Drilling pre-thread blind holes: 2. Drilling pre-thread through holes: Drilling with a 45° chamfer Drilling with a 45° chamfer Pre-Thread Recommended Hole Diameters with DCNT Drills Drill Обозначение Designation Dia. Range M Thread Head Dia. MF Head Head Dia. TR Thread Head Dia. M Helicoil Thread Head Dia. DCNT 068-021-12A-M8 6.5-6.99 M8 6.8 DCNT 085-026-12A-M10 8.5-8.99 M10 8.5 MF10x1 8.99 TR10x1.5 8.6 MF10x1.25 8.8 MF11x1 10.0 TR12x2 DCNT 102-030-16A-M12 10.0-10.99 M12 10.2 MF12x1 10.99 10.2 M10 10.5 MF12x1.25 10.8 TR14x4 10.5 MF12x1.5 10.5 MF13x1 12.0 TR14x2 12.2 DCNT 120-035-16A-M14 12.0-12.99 M14 12.0 MF14x1 12.99 M12 12.5 MF14x1.25 12.8 TR16x4 12.3 MF14x1.5 12.5 MF14x1 14.0 DCNT 140-039-16A-M16 14.0-14.99 M16 14.0 MF16x1 14.99 TR18x4 14.3 M14 14.99 MF16x1.5 14.5 DCNT 175-042-20A-M20 17.0-17.99 M20 17.5 MF20x2 17.99 TR22x5 17.3 DCNT 210-048-25A-M24 21.0-21.99 M24 21.0 MF22x1 21.0 Drill Обозначение Designation Dia. Range UNF Thread Head Dia. UNC Thread Head Dia. BSW Thread Head Dia. BSF Thread Head Dia. DCNT 068-021-12A-M8 6.5-6.99 DCNT 085-026-12A-M10 8.5-8.99 UNF3/8-24 8.5 DCNT 102-030-16A-M12 10.0-10.99 UNC1/2-13 10.8 BSW1/2-12 10.5 BSF1/2-16 10.99 DCNT 120-035-16A-M14 12.0-12.99 UNC9/16-12 12.3 BSF9/16-16 12.5 DCNT 140-039-16A-M16 14.0-14.99 UNF5/8-18 14.5 DCNT 175-042-20A-M20 17.0-17.99 UNF3/4-16 17.5 DCNT 210-048-25A-M24 21.0-21.99 Drill Обозначение Designation Dia. Range NPT Thread Head Dia. BSP Thread Head Dia. UNEF Thread Head Dia. UNJF Helicoil Thread Head Dia. DCNT 068-021-12A-M8 6.5-6.99 DCNT 085-026-12A-M10 8.5-8.99 NPT1/8-27 8.5 G1/8-28 .8 8. UNEF3/8-32 8.7 UNJF3/8-24 8.6 DCNT 102-030-16A-M12 10.0-10.99 DCNT 120-035-16A-M14 12.0-12.99 DCNT 140-039-16A-M16 14.0-14.99 NPT3/8-18 14.5 UNEF5/8-24 14.8 UNJF5/8-18 14.5 DCNT 175-042-20A-M20 17.0-17.99 NPT1/2-14 17.5 UNEF3/4-20 17.8 DCNT 210-048-25A-M24 21.0-21.99 Member IMC Group kSSlIf INDEXABLE DRILLS
