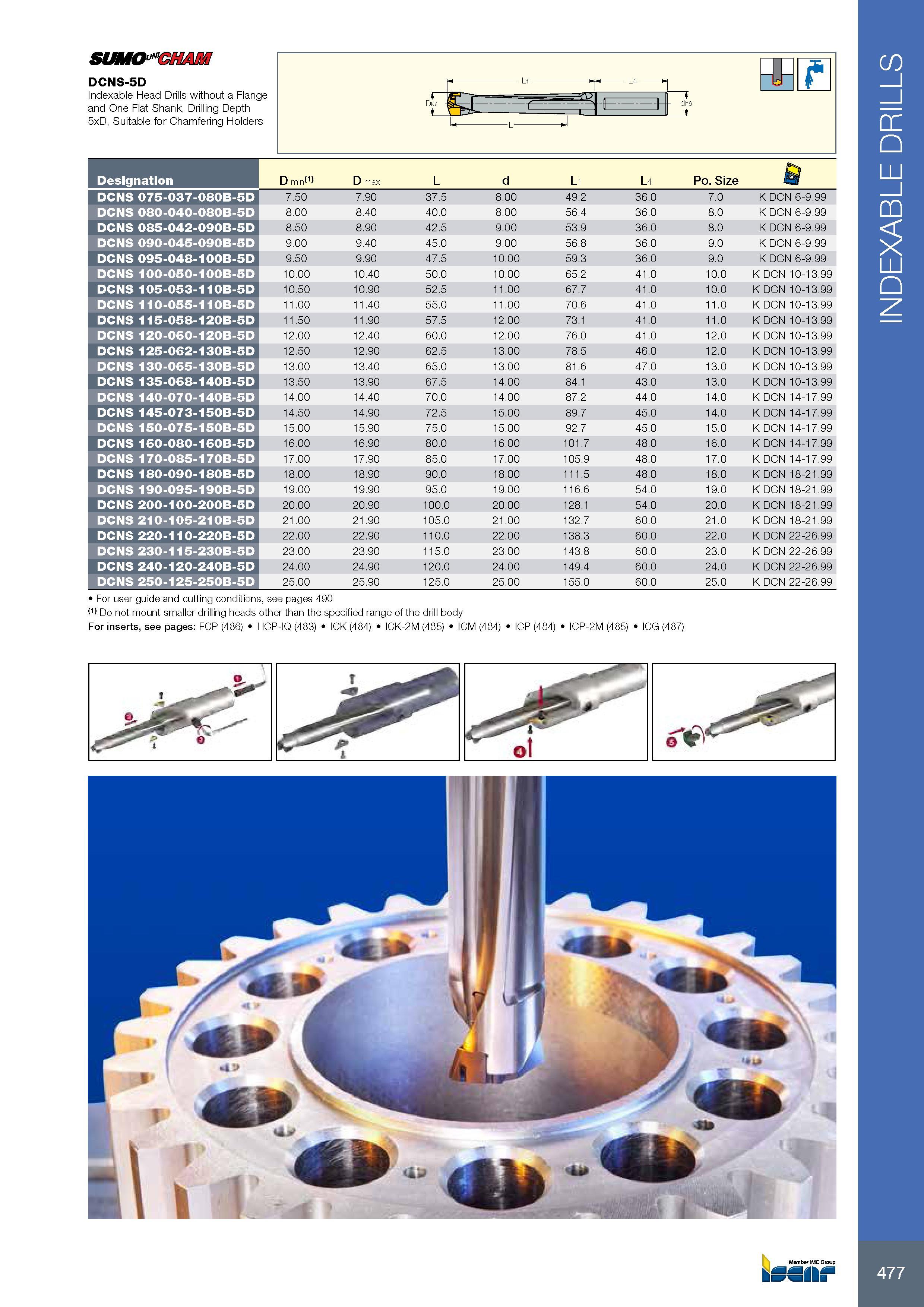

SUMO DCNS-5D Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 5xD, Suitable for Chamfering Holders Обозначение Designation D min(1) D max L d L1 L4 Po. Size DCNS 075-037-080B-5D 7.50 7.90 37.5 8.00 49.2 36.0 7.0 K DCN 6-9.99 DCNS 080-040-080B-5D 8.00 8.40 40.0 8.00 56.4 36.0 8.0 K DCN 6-9.99 DCNS 085-042-090B-5D 8.50 8.90 42.5 9.00 53.9 36.0 8.0 K DCN 6-9.99 DCNS 090-045-090B-5D 9.00 9.40 45.0 9.00 56.8 36.0 9.0 K DCN 6-9.99 DCNS 095-048-100B-5D 9.50 9.90 47.5 10.00 59.3 36.0 9.0 K DCN 6-9.99 DCNS 100-050-100B-5D 10.00 10.40 50.0 10.00 65.2 41.0 10.0 K DCN 10-13.99 DCNS 105-053-110B-5D 10.50 10.90 52.5 11.00 67.7 41.0 10.0 K DCN 10-13.99 DCNS 110-055-110B-5D 11.00 11.40 55.0 11.00 70.6 41.0 11.0 K DCN 10-13.99 DCNS 115-058-120B-5D 11.50 11.90 57.5 12.00 73.1 41.0 11.0 K DCN 10-13.99 DCNS 120-060-120B-5D 12.00 12.40 60.0 12.00 76.0 41.0 12.0 K DCN 10-13.99 DCNS 125-062-130B-5D 12.50 12.90 62.5 13.00 78.5 46.0 12.0 K DCN 10-13.99 DCNS 130-065-130B-5D 13.00 13.40 65.0 13.00 81.6 47.0 13.0 K DCN 10-13.99 DCNS 135-068-140B-5D 13.50 13.90 67.5 14.00 84.1 43.0 13.0 K DCN 10-13.99 DCNS 140-070-140B-5D 14.00 14.40 70.0 14.00 87.2 44.0 14.0 K DCN 14-17.99 DCNS 145-073-150B-5D 14.50 14.90 72.5 15.00 89.7 45.0 14.0 K DCN 14-17.99 DCNS 150-075-150B-5D 15.00 15.90 75.0 15.00 92.7 45.0 15.0 K DCN 14-17.99 DCNS 160-080-160B-5D 16.00 16.90 80.0 16.00 101.7 48.0 16.0 K DCN 14-17.99 DCNS 170-085-170B-5D 17.00 17.90 85.0 17.00 105.9 48.0 17.0 K DCN 14-17.99 DCNS 180-090-180B-5D 18.00 18.90 90.0 18.00 111.5 48.0 18.0 K DCN 18-21.99 DCNS 190-095-190B-5D 19.00 19.90 95.0 19.00 116.6 54.0 19.0 K DCN 18-21.99 DCNS 200-100-200B-5D 20.00 20.90 100.0 20.00 128.1 54.0 20.0 K DCN 18-21.99 DCNS 210-105-210B-5D 21.00 21.90 105.0 21.00 132.7 60.0 21.0 K DCN 18-21.99 DCNS 220-110-220B-5D 22.00 22.90 110.0 22.00 138.3 60.0 22.0 K DCN 22-26.99 DCNS 230-115-230B-5D 23.00 23.90 115.0 23.00 143.8 60.0 23.0 K DCN 22-26.99 DCNS 240-120-240B-5D 24.00 24.90 120.0 24.00 149.4 60.0 24.0 K DCN 22-26.99 DCNS 250-125-250B-5D 25.00 25.90 125.0 25.00 155.0 60.0 25.0 K DCN 22-26.99 For user guide and cutting conditions, see pages 490 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: FCP (486) HCP-IQ (483) ICK (484) ICK-2M (485) ICM (484) ICP (484) ICP-2M (485) ICG (487) Member IMC Group kSSIIf INDEXABLE DRILLS
