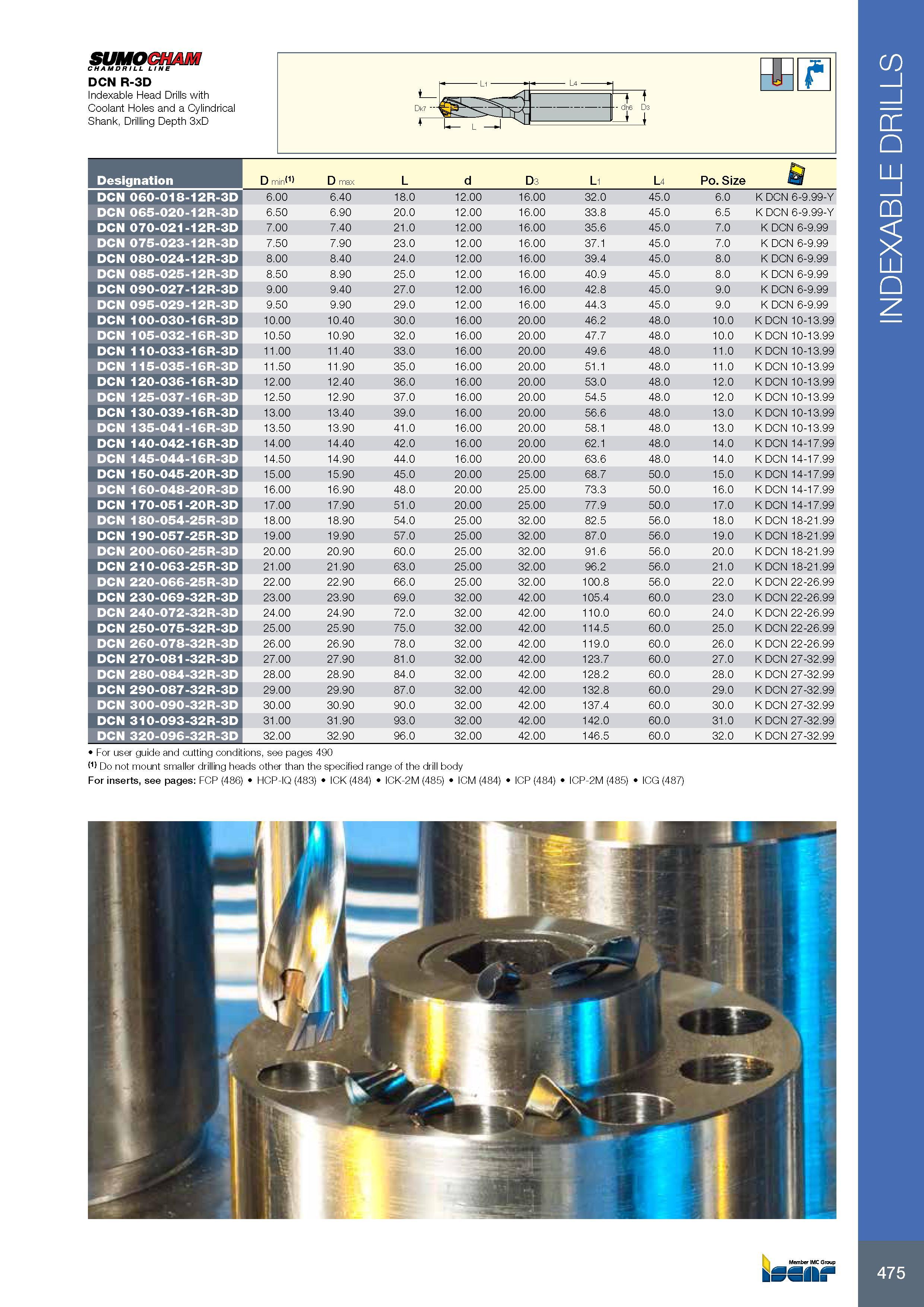

475 SUMOCHAM CHAM DR I LL LINE DCN R-3D Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 3xD Обозначение Designation D min(1) D max L d D3 L1 L4 Po. Size DCN 060-018-12R-3D 6.00 6.40 18.0 12.00 16.00 32.0 45.0 6.0 K DCN 6-9.99-Y DCN 065-020-12R-3D 6.50 6.90 20.0 12.00 16.00 33.8 45.0 6.5 K DCN 6-9.99-Y DCN 070-021-12R-3D 7.00 7.40 21.0 12.00 16.00 35.6 45.0 7.0 K DCN 6-9.99 DCN 075-023-12R-3D 7.50 7.90 23.0 12.00 16.00 37.1 45.0 7.0 K DCN 6-9.99 DCN 080-024-12R-3D 8.00 8.40 24.0 12.00 16.00 39.4 45.0 8.0 K DCN 6-9.99 DCN 085-025-12R-3D 8.50 8.90 25.0 12.00 16.00 40.9 45.0 8.0 K DCN 6-9.99 DCN 090-027-12R-3D 9.00 9.40 27.0 12.00 16.00 42.8 45.0 9.0 K DCN 6-9.99 DCN 095-029-12R-3D 9.50 9.90 29.0 12.00 16.00 44.3 45.0 9.0 K DCN 6-9.99 DCN 100-030-16R-3D 10.00 10.40 30.0 16.00 20.00 46.2 48.0 10.0 K DCN 10-13.99 DCN 105-032-16R-3D 10.50 10.90 32.0 16.00 20.00 47.7 48.0 10.0 K DCN 10-13.99 DCN 110-033-16R-3D 11.00 11.40 33.0 16.00 20.00 49.6 48.0 11.0 K DCN 10-13.99 DCN 115-035-16R-3D 11.50 11.90 35.0 16.00 20.00 51.1 48.0 11.0 K DCN 10-13.99 DCN 120-036-16R-3D 12.00 12.40 36.0 16.00 20.00 53.0 48.0 12.0 K DCN 10-13.99 DCN 125-037-16R-3D 12.50 12.90 37.0 16.00 20.00 54.5 48.0 12.0 K DCN 10-13.99 DCN 130-039-16R-3D 13.00 13.40 39.0 16.00 20.00 56.6 48.0 13.0 K DCN 10-13.99 DCN 135-041-16R-3D 13.50 13.90 41.0 16.00 20.00 58.1 48.0 13.0 K DCN 10-13.99 DCN 140-042-16R-3D 14.00 14.40 42.0 16.00 20.00 62.1 48.0 14.0 K DCN 14-17.99 DCN 145-044-16R-3D 14.50 14.90 44.0 16.00 20.00 63.6 48.0 14.0 K DCN 14-17.99 DCN 150-045-20R-3D 15.00 15.90 45.0 20.00 25.00 68.7 50.0 15.0 K DCN 14-17.99 DCN 160-048-20R-3D 16.00 16.90 48.0 20.00 25.00 73.3 50.0 16.0 K DCN 14-17.99 DCN 170-051-20R-3D 17.00 17.90 51.0 20.00 25.00 77.9 50.0 17.0 K DCN 14-17.99 DCN 180-054-25R-3D 18.00 18.90 54.0 25.00 32.00 82.5 56.0 18.0 K DCN 18-21.99 DCN 190-057-25R-3D 19.00 19.90 57.0 25.00 32.00 87.0 56.0 19.0 K DCN 18-21.99 DCN 200-060-25R-3D 20.00 20.90 60.0 25.00 32.00 91.6 56.0 20.0 K DCN 18-21.99 DCN 210-063-25R-3D 21.00 21.90 63.0 25.00 32.00 96.2 56.0 21.0 K DCN 18-21.99 DCN 220-066-25R-3D 22.00 22.90 66.0 25.00 32.00 100.8 56.0 22.0 K DCN 22-26.99 DCN 230-069-32R-3D 23.00 23.90 69.0 32.00 42.00 105.4 60.0 23.0 K DCN 22-26.99 DCN 240-072-32R-3D 24.00 24.90 72.0 32.00 42.00 110.0 60.0 24.0 K DCN 22-26.99 DCN 250-075-32R-3D 25.00 25.90 75.0 32.00 42.00 114.5 60.0 25.0 K DCN 22-26.99 DCN 260-078-32R-3D 26.00 26.90 78.0 32.00 42.00 119.0 60.0 26.0 K DCN 22-26.99 DCN 270-081-32R-3D 27.00 27.90 81.0 32.00 42.00 123.7 60.0 27.0 K DCN 27-32.99 DCN 280-084-32R-3D 28.00 28.90 84.0 32.00 42.00 128.2 60.0 28.0 K DCN 27-32.99 DCN 290-087-32R-3D 29.00 29.90 87.0 32.00 42.00 132.8 60.0 29.0 K DCN 27-32.99 DCN 300-090-32R-3D 30.00 30.90 90.0 32.00 42.00 137.4 60.0 30.0 K DCN 27-32.99 DCN 310-093-32R-3D 31.00 31.90 93.0 32.00 42.00 142.0 60.0 31.0 K DCN 27-32.99 DCN 320-096-32R-3D 32.00 32.90 96.0 32.00 42.00 146.5 60.0 32.0 K DCN 27-32.99 For user guide and cutting conditions, see pages 490 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: FCP (486) HCP-IQ (483) ICK (484) ICK-2M (485) ICM (484) ICP (484) ICP-2M (485) ICG (487) INDEXABLE DRILLS
