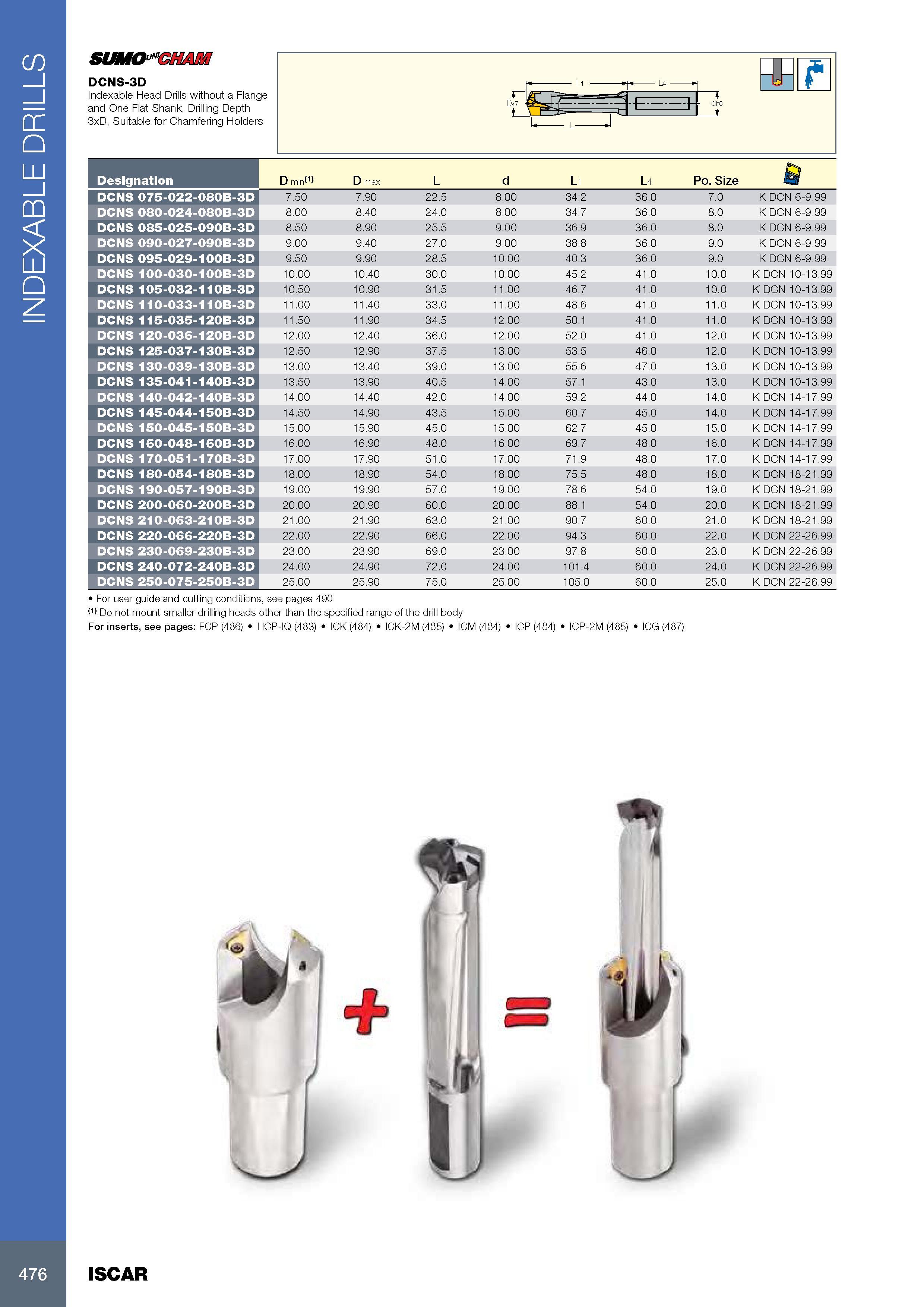

INDEXABLE DRILLS SUMON DCNS-3D Indexable Head Drills without a Flange and One Flat Shank, Drilling Depth 3xD, Suitable for Chamfering Holders Обозначение Designation D min(1) D max L d L1 L4 Po. Size DCNS 075-022-080B-3D 7.50 7.90 22.5 8.00 34.2 36.0 7.0 K DCN 6-9.99 DCNS 080-024-080B-3D 8.00 8.40 24.0 8.00 34.7 36.0 8.0 K DCN 6-9.99 DCNS 085-025-090B-3D 8.50 8.90 25.5 9.00 36.9 36.0 8.0 K DCN 6-9.99 DCNS 090-027-090B-3D 9.00 9.40 27.0 9.00 38.8 36.0 9.0 K DCN 6-9.99 DCNS 095-029-100B-3D 9.50 9.90 28.5 10.00 40.3 36.0 9.0 K DCN 6-9.99 DCNS 100-030-100B-3D 10.00 10.40 30.0 10.00 45.2 41.0 10.0 K DCN 10-13.99 DCNS 105-032-110B-3D 10.50 10.90 31.5 11.00 46.7 41.0 10.0 K DCN 10-13.99 DCNS 110-033-110B-3D 11.00 11.40 33.0 11.00 48.6 41.0 11.0 K DCN 10-13.99 DCNS 115-035-120B-3D 11.50 11.90 34.5 12.00 50.1 41.0 11.0 K DCN 10-13.99 DCNS 120-036-120B-3D 12.00 12.40 36.0 12.00 52.0 41.0 12.0 K DCN 10-13.99 DCNS 125-037-130B-3D 12.50 12.90 37.5 13.00 53.5 46.0 12.0 K DCN 10-13.99 DCNS 130-039-130B-3D 13.00 13.40 39.0 13.00 55.6 47.0 13.0 K DCN 10-13.99 DCNS 135-041-140B-3D 13.50 13.90 40.5 14.00 57.1 43.0 13.0 K DCN 10-13.99 DCNS 140-042-140B-3D 14.00 14.40 42.0 14.00 59.2 44.0 14.0 K DCN 14-17.99 DCNS 145-044-150B-3D 14.50 14.90 43.5 15.00 60.7 45.0 14.0 K DCN 14-17.99 DCNS 150-045-150B-3D 15.00 15.90 45.0 15.00 62.7 45.0 15.0 K DCN 14-17.99 DCNS 160-048-160B-3D 16.00 16.90 48.0 16.00 69.7 48.0 16.0 K DCN 14-17.99 DCNS 170-051-170B-3D 17.00 17.90 51.0 17.00 71.9 48.0 17.0 K DCN 14-17.99 DCNS 180-054-180B-3D 18.00 18.90 54.0 18.00 75.5 48.0 18.0 K DCN 18-21.99 DCNS 190-057-190B-3D 19.00 19.90 57.0 19.00 78.6 54.0 19.0 K DCN 18-21.99 DCNS 200-060-200B-3D 20.00 20.90 60.0 20.00 88.1 54.0 20.0 K DCN 18-21.99 DCNS 210-063-210B-3D 21.00 21.90 63.0 21.00 90.7 60.0 21.0 K DCN 18-21.99 DCNS 220-066-220B-3D 22.00 22.90 66.0 22.00 94.3 60.0 22.0 K DCN 22-26.99 DCNS 230-069-230B-3D 23.00 23.90 69.0 23.00 97.8 60.0 23.0 K DCN 22-26.99 DCNS 240-072-240B-3D 24.00 24.90 72.0 24.00 101.4 60.0 24.0 K DCN 22-26.99 DCNS 250-075-250B-3D 25.00 25.90 75.0 25.00 105.0 60.0 25.0 K DCN 22-26.99 For user guide and cutting conditions, see pages 490 (1) Do not mount smaller drilling heads other than the specified range of the For inserts, see pages: FCP (486) HCP-IQ (483) ICK (484) ICK-2M drill body (485) ICM (484) ICP (484) ICP-2M (485) ICG (487) 476 ISCAR
