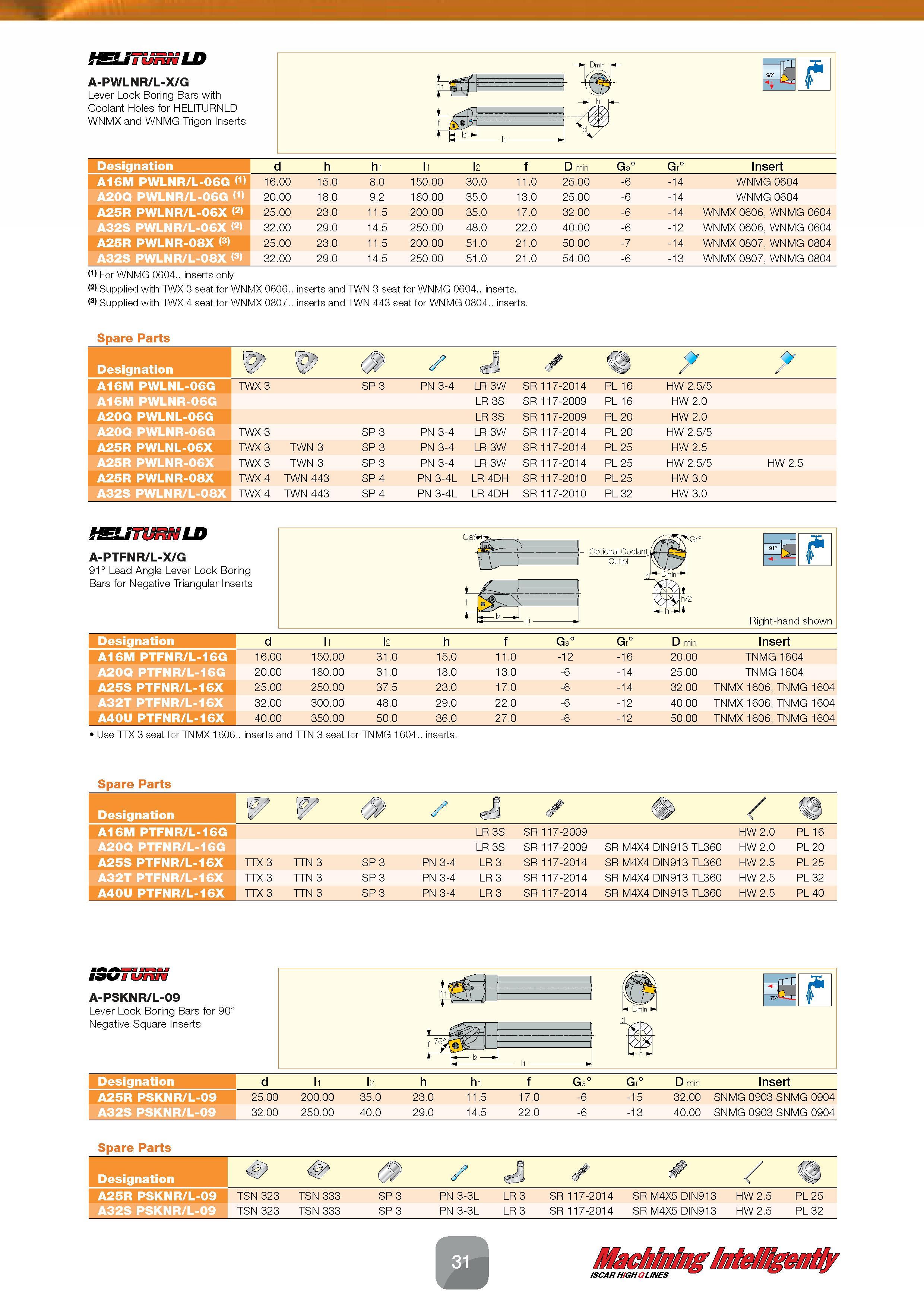

HELITURNLD A-PWLNR/L-X/G Lever Lock Boring Bars with Coolant Holes for HELITURNLD WNMX and WNMG Trigon Inserts Designation d h h1 l1 l2 f D min Ga° Gr° Insert A16M PWLNR/L-06G (1) 16.00 15.0 8.0 150.00 30.0 11.0 25.00 -6 -14 WNMG 0604 A20Q PWLNR/L-06G (1) 20.00 18.0 9.2 180.00 35.0 13.0 25.00 -6 -14 WNMG 0604 A25R PWLNR/L-06X (2) 25.00 23.0 11.5 200.00 35.0 17.0 32.00 -6 -14 WNMX 0606, WNMG 0604 A32S PWLNR/L-06X (2) 32.00 29.0 14.5 250.00 48.0 22.0 40.00 -6 -12 WNMX 0606, WNMG 0604 A25R PWLNR-08X (3) 25.00 23.0 11.5 200.00 51.0 21.0 50.00 -7 -14 WNMX 0807, WNMG 0804 A32S PWLNR/L-08X (3) 32.00 29.0 14.5 250.00 51.0 21.0 54.00 -6 -13 WNMX 0807, WNMG 0804 For WNMG 0604.. inserts only Supplied with TWX 3 seat for WNMX 0606.. inserts and TWN 3 seat for WNMG 0604.. inserts. (3) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts. Spare Parts Designation A16M PWLNL-06G A16M PWLNR-06G A20Q PWLNL-06G A20Q PWLNR-06G A25R PWLNL-06X A25R PWLNR-06X A25R PWLNR-08X A32S PWLNR/L-08X . TWX 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 16 HW 2.5/5 LR 3S SR 117-2009 PL 16 HW 2.0 LR 3S SR 117-2009 PL 20 HW 2.0 TWX 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 20 HW 2.5/5 TWX 3 TWN 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 25 HW 2.5 TWX 3 TWN 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 25 HW 2.5/5 TWX 4 TWN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 PL 25 HW 3.0 TWX 4 TWN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 PL 32 HW 3.0 . HW 2.5 TUnN LD A-PTFNR/L-X/G 91° Lead Angle Lever Lock Boring Bars for Negative Triangular Inserts Designation d l1 l2 h f Ga° Gr° D min Insert A16M PTFNR/L-16G 16.00 150.00 31.0 15.0 11.0 -12 -16 20.00 TNMG 1604 A20Q PTFNR/L-16G 20.00 180.00 31.0 18.0 13.0 -6 -14 25.00 TNMG 1604 A25S PTFNR/L-16X 25.00 250.00 37.5 23.0 17.0 -6 -14 32.00 TNMX 1606, TNMG 1604 A32T PTFNR/L-16X 32.00 300.00 48.0 29.0 22.0 -6 -12 40.00 TNMX 1606, TNMG 1604 A40U PTFNR/L-16X 40.00 350.00 50.0 36.0 27.0 -6 -12 50.00 TNMX 1606, TNMG 1604 Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts. Spare Parts Designation A16M PTFNR/L-16G A20Q PTFNR/L-16G A25S PTFNR/L-16X A32T PTFNR/L-16X A40U PTFNR/L-16X LR 3S SR 117-2009 HW 2.0 PL 16 LR 3S SR 117-2009 SR M4X4 DIN913 TL360 HW 2.0 PL 20 TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 25 TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 32 TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 40 m/i wn A-PSKNR/L-09 Lever Lock Boring Bars for 90° Negative Square Inserts Designation d l1 l2 h h1 f Ga° Gr° D min Insert A25R PSKNR/L-09 25.00 200.00 35.0 23.0 11.5 17.0 -6 -15 32.00 SNMG 0903 SNMG 0904 A32S PSKNR/L-09 32.00 250.00 40.0 29.0 14.5 22.0 -6 -13 40.00 SNMG 0903 SNMG 0904 Spare Parts Designation A25R PSKNR/L-09 A32S PSKNR/L-09 TSN 323 TSN 323 TSN 333 TSN 333 SP 3 SP 3 PN 3-3L PN 3-3L LR 3 LR 3 SR 117-2014 SR 117-2014 SR M4X5 DIN913 SR M4X5 DIN913 HW 2.5 HW 2.5 PL 25 PL 32 SCARHGH LINES
