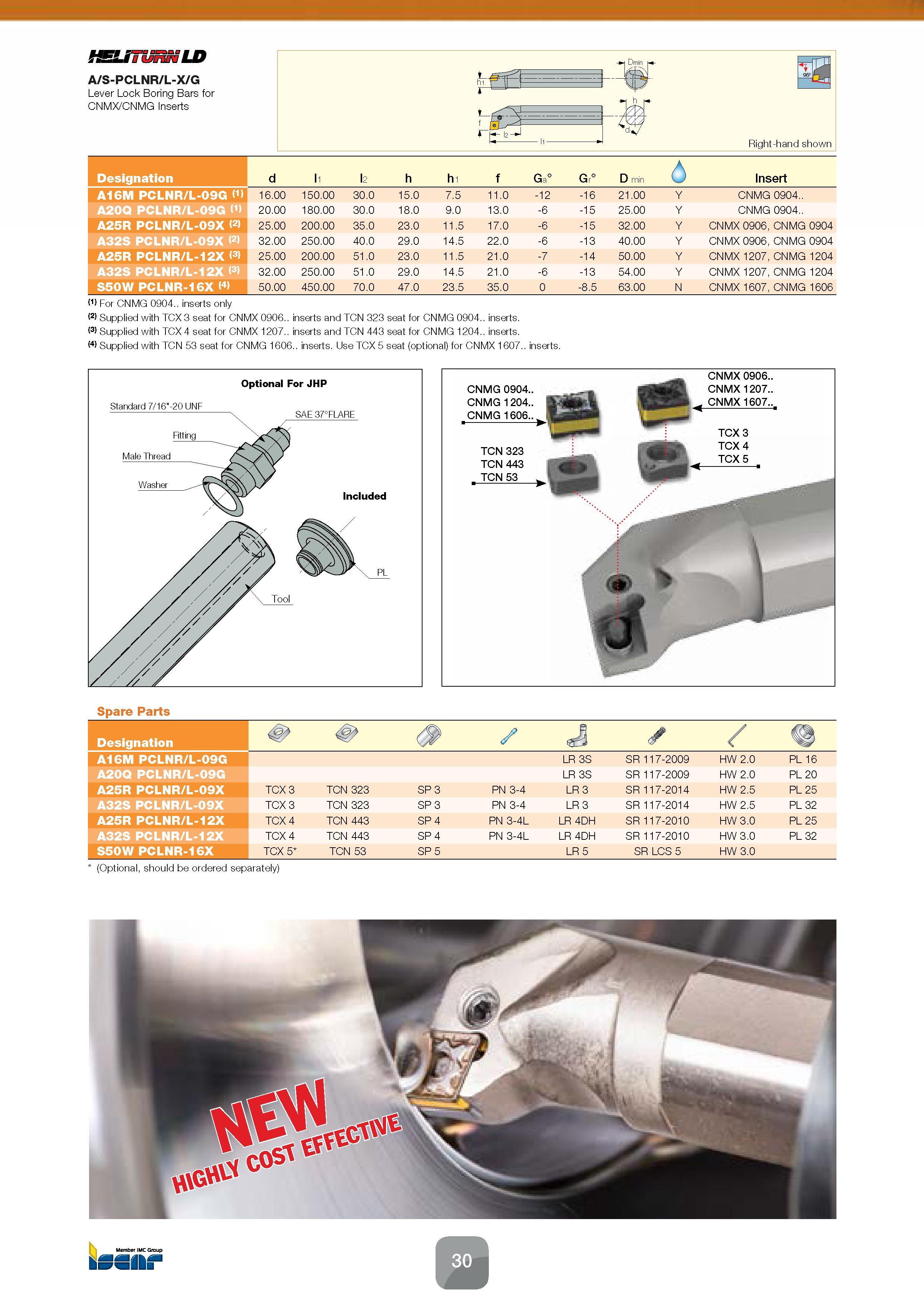

HELITURNLD A/S-PCLNR/L-X/G Lever Lock Boring Bars for CNMX/CNMG Inserts Designation d l1 l2 h h1 f Ga° Gr° D min 6 Insert A16M PCLNR/L-09G (1) 16.00 150.00 30.0 15.0 7.5 11.0 -12 -16 21.00 Y CNMG 0904.. A20Q PCLNR/L-09G (1) 20.00 180.00 30.0 18.0 9.0 13.0 -6 -15 25.00 Y CNMG 0904.. A25R PCLNR/L-09X (2) 25.00 200.00 35.0 23.0 11.5 17.0 -6 -15 32.00 Y CNMX 0906, CNMG 0904 A32S PCLNR/L-09X (2) 32.00 250.00 40.0 29.0 14.5 22.0 -6 -13 40.00 Y CNMX 0906, CNMG 0904 A25R PCLNR/L-12X (3) 25.00 200.00 51.0 23.0 11.5 21.0 -7 -14 50.00 Y CNMX 1207, CNMG 1204 A32S PCLNR/L-12X (3) 32.00 250.00 51.0 29.0 14.5 21.0 -6 -13 54.00 Y CNMX 1207, CNMG 1204 S50W PCLNR-16X (4) 50.00 450.00 70.0 47.0 23.5 35.0 0 -8.5 63.00 N CNMX 1607, CNMG 1606 For CNMG 0904.. inserts only Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. W Supplied with TCN 53 seat for CNMG 1606.. inserts. Use TCX 5 seat (optional) for CNMX 1607.. inserts. CNMG 0904.. CNMG 1204.. CNMG 1606... TCN 323 TCN 443 TCN 53 CNMX 0906.. CNMX 1207.. CNMX 1607.. TCX 3 TCX 4 TCX 5 Spare Parts Designation & A16M PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 16 A20Q PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 20 A25R PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 25 A32S PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 32 A25R PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 25 A32S PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 32 S50W PCLNR-16X TCX 5 TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0 (Optional, should be ordered separately)
