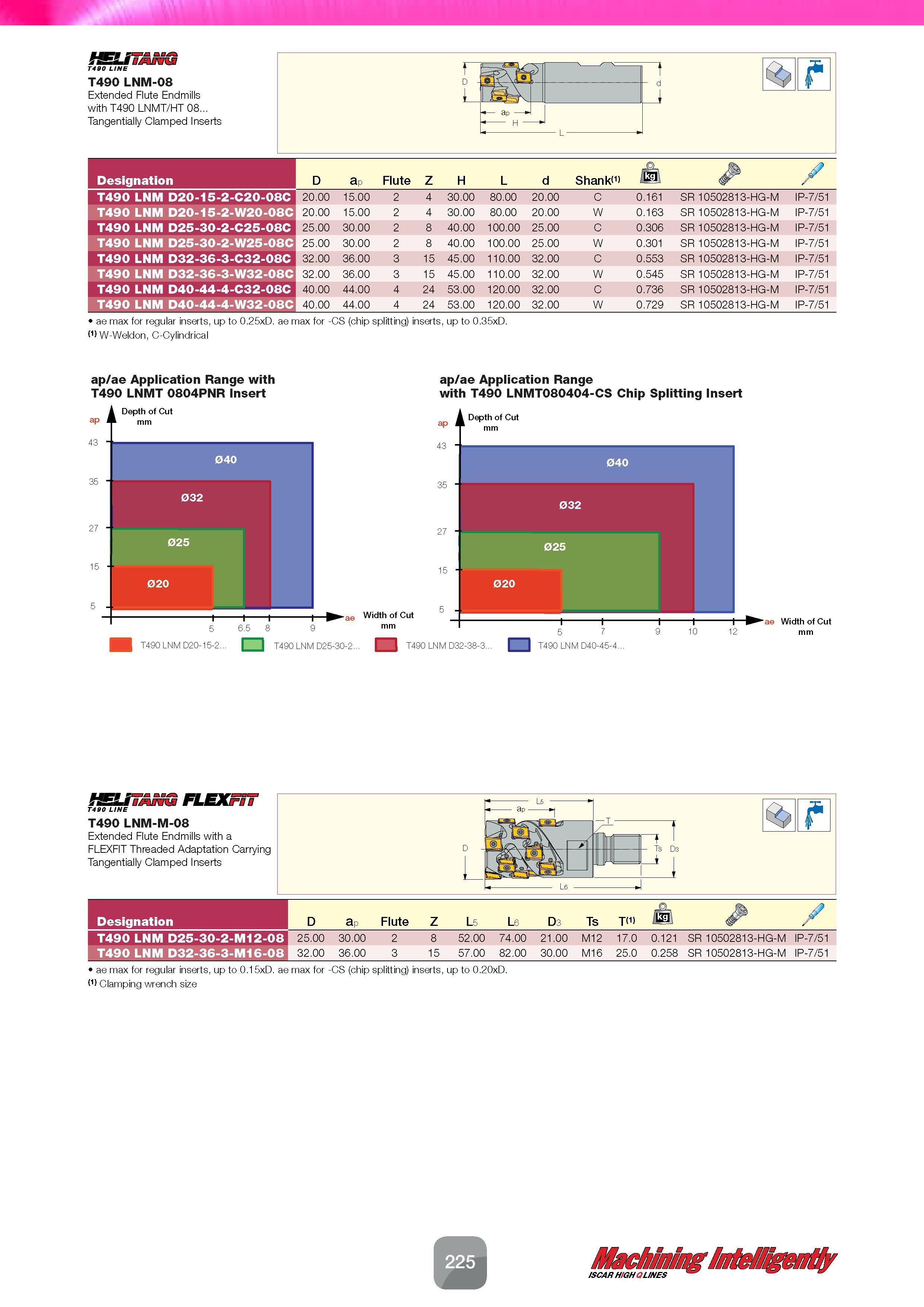

Designation D ap Flute Z H L d Shank(') /£ai\ y T490 LNM D20-15-2-C20-08C 20.00 15.00 2 4 30.00 80.00 20.00 C 0.161 SR 10502813-HG-M IP-7/51 T490 LNM D20-15-2-W20-08C 20.00 15.00 2 4 30.00 80.00 20.00 W 0.163 SR 10502813-HG-M IP-7/51 T490 LNM D25-30-2-C25-08C 25.00 30.00 2 8 40.00 100.00 25.00 C 0.306 SR 10502813-HG-M IP-7/51 T490 LNM D25-30-2-W25-08C 25.00 30.00 2 8 40.00 100.00 25.00 W 0.301 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-C32-08C 32.00 36.00 3 15 45.00 110.00 32.00 C 0.553 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-W32-08C 32.00 36.00 3 15 45.00 110.00 32.00 W 0.545 SR 10502813-HG-M IP-7/51 T490 LNM D40-44-4-C32-08C 40.00 44.00 4 24 53.00 120.00 32.00 C 0.736 SR 10502813-HG-M IP-7/51 T490 LNM D40-44-4-W32-08C 40.00 44.00 4 24 53.00 120.00 32.00 W 0.729 SR 10502813-HG-M IP-7/51 ae max for regular inserts, up to 0.25xD. ae max for -CS (chip splitting) inserts, up to 0.35xD. (1) W-Weldon, C-Cylindrical ap/ae Application Range with T490 LNMT 0804PNR Insert Depth of Cut mm T490 LNM D20-15-2.. 6.5 8 9 T490 LNM D25-30-2 ae Width of Cut mm ap/ae Application Range with T490 LNMT080404-CS Chip Splitting Insert Depth of Cut mm 5 7 9 I T490 LNM D32-38-3... T490 LNM D40-45-4... ae Width of Cut 12 mm 5 tSLSTANG FLEXriT T490 LINE T490 LNM-M-08 Extended Flute Endmills with a FLEXFIT Threaded Adaptation Carrying Tangentially Clamped Inserts P L5 p aP -T f6 3 n mm -. . + C L6 J Designation T490 LNM D25-30-2-M12-08 T490 LNM D32-36-3-M16-08 ap Flute Z L5 L6 D3 Ts T(1) 25.00 32.00 30.00 36.00 8 15 52.00 57.00 74.00 82.00 21.00 30.00 M12 M16 17.0 25.0 0.121 0.258 SR 10502813-HG-M SR 10502813-HG-M IP-7/51 IP-7/51 ae max for regular inserts, up to 0.15xD. ae max for -CS (chip splitting) inserts, up to 0.20xD. (1) Clamping wrench size D
