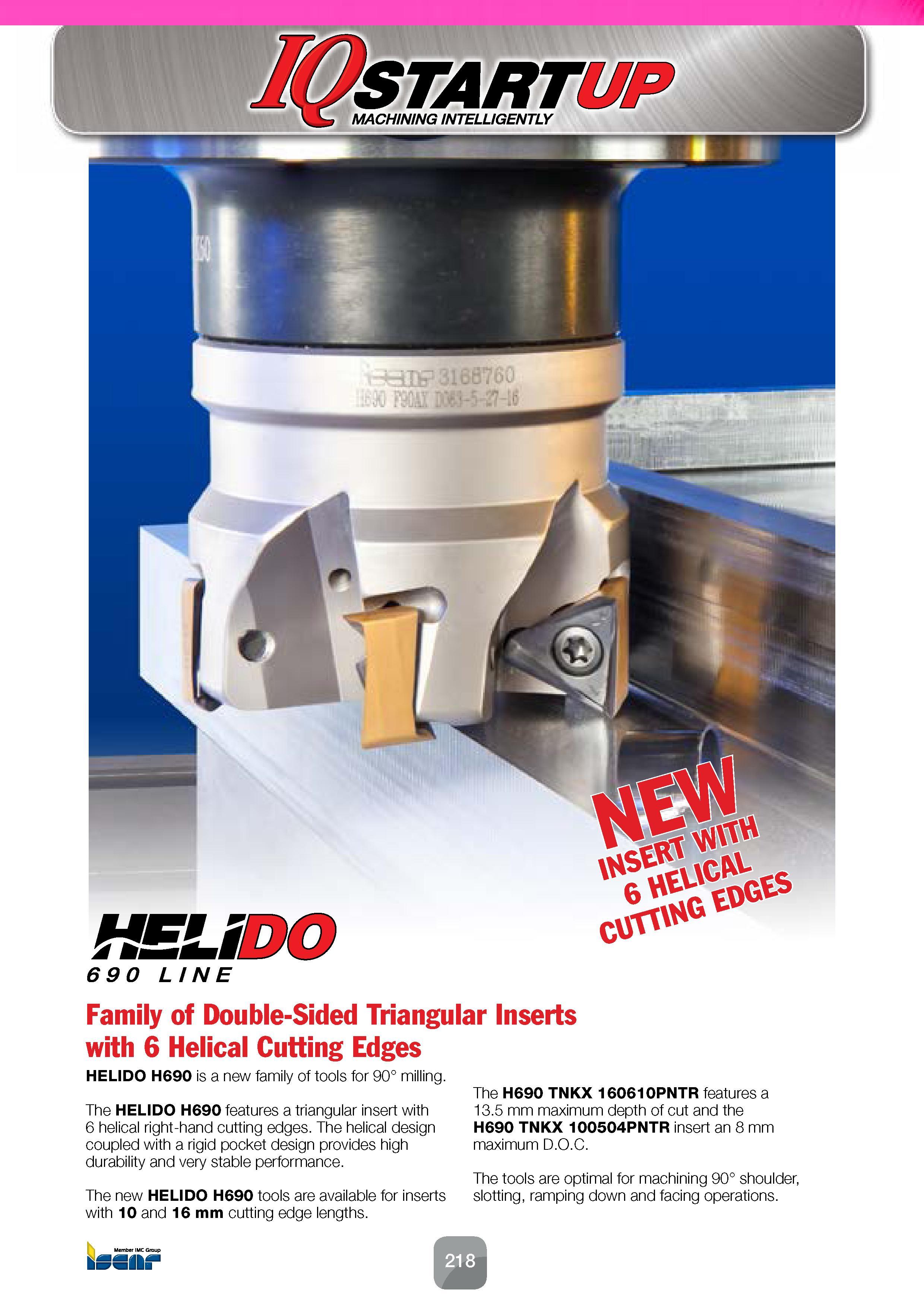

690 LINE Family of Double-Sided Triangular Inserts with 6 Helical Cutting Edges HELIDO H690 is a new family of tools for 90° milling. The HELIDO H690 features a triangular insert with 6 helical right-hand cutting edges. The helical design coupled with a rigid pocket design provides high durability and very stable performance. The new HELIDO H690 tools are available for inserts with 10 and 16 mm cutting edge lengths. The H690 TNKX 160610PNTR features a 13.5 mm maximum depth of cut and the H690 TNKX 100504PNTR insert an 8 mm maximum D.O.C. The tools are optimal for machining 90° shoulder, slotting, ramping down and facing operations. JS Member IMC Group
