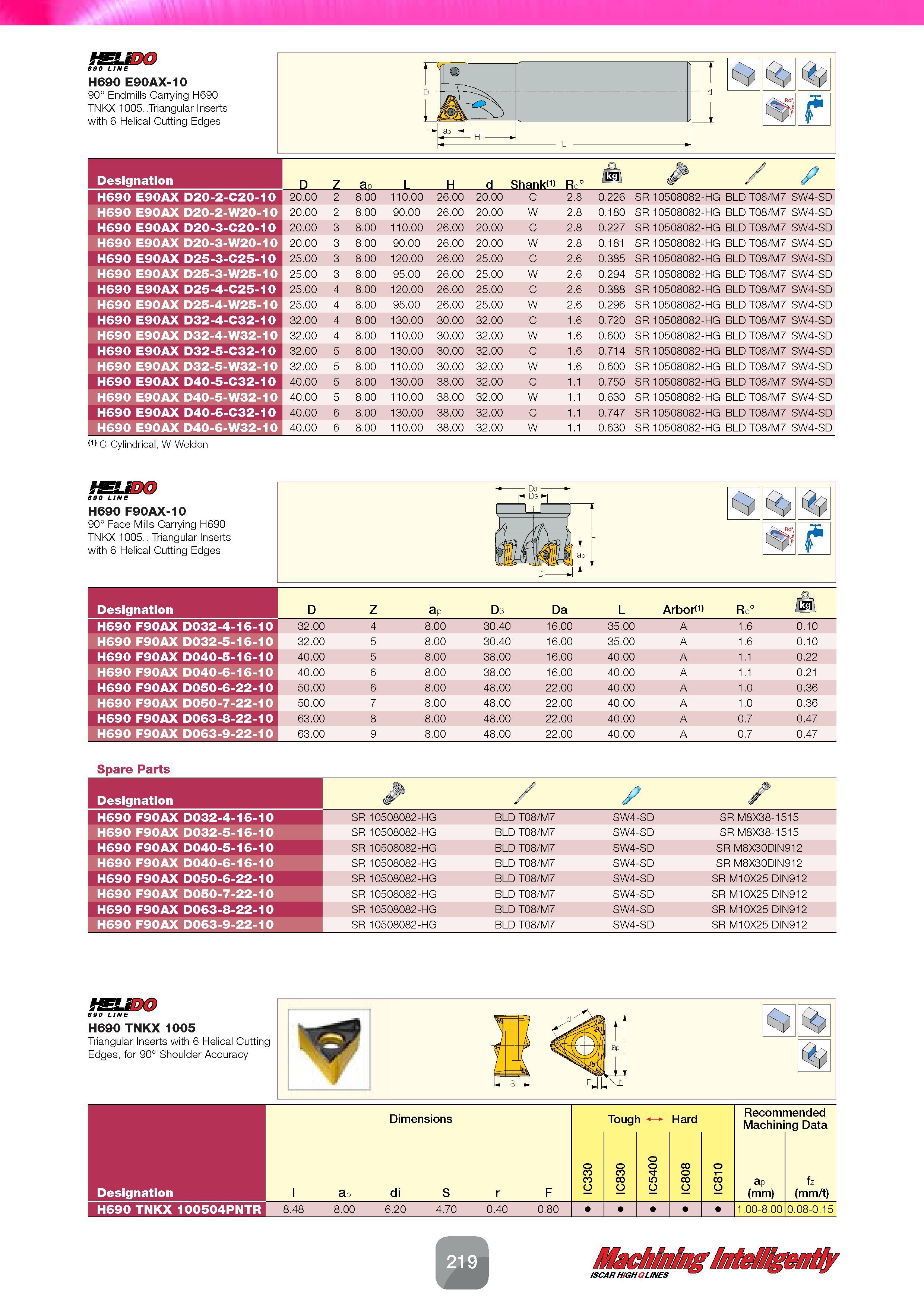

221 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.219

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 219 0221 Lab2u

w tSLSD 690 LINE H690 E90AX-10 90° Endmills Carrying H690 TNKX 1005..Triangular Inserts with 6 Helical Cutting Edges V D - L< i d \ I f 1 L Designation D 7 ap L H d ShankM) Rd° / H690 E90AX D20-2-C20-10 20.00 2 8.00 110.00 26.00 20.00 C 2.8 0.226 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D20-2-W20-10 20.00 2 8.00 90.00 26.00 20.00 W 2.8 0.180 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D20-3-C20-10 20.00 3 8.00 110.00 26.00 20.00 C 2.8 0.227 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D20-3-W20-10 20.00 3 8.00 90.00 26.00 20.00 W 2.8 0.181 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D25-3-C25-10 25.00 3 8.00 120.00 26.00 25.00 C 2.6 0.385 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D25-3-W25-10 25.00 3 8.00 95.00 26.00 25.00 W 2.6 0.294 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D25-4-C25-10 25.00 4 8.00 120.00 26.00 25.00 C 2.6 0.388 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D25-4-W25-10 25.00 4 8.00 95.00 26.00 25.00 W 2.6 0.296 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D32-4-C32-10 32.00 4 8.00 130.00 30.00 32.00 C 1.6 0.720 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D32-4-W32-10 32.00 4 8.00 110.00 30.00 32.00 W 1.6 0.600 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D32-5-C32-10 32.00 5 8.00 130.00 30.00 32.00 C 1.6 0.714 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D32-5-W32-10 32.00 5 8.00 110.00 30.00 32.00 W 1.6 0.600 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D40-5-C32-10 40.00 5 8.00 130.00 38.00 32.00 C 1.1 0.750 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D40-5-W32-10 40.00 5 8.00 110.00 38.00 32.00 W 1.1 0.630 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D40-6-C32-10 40.00 6 8.00 130.00 38.00 32.00 C 1.1 0.747 SR 10508082-HG BLD T08/M7 SW4-SD H690 E90AX D40-6-W32-10 40.00 6 8.00 110.00 38.00 32.00 W 1.1 0.630 SR 10508082-HG BLD T08/M7 SW4-SD (1) C-Cylindrical, W-Weldon 690 LINE H690 F90AX-10 90° Face Mills Carrying H690 TNKX 1005.. Triangular Inserts with 6 Helical Cutting Edges Da- j-1 t f Designation D Z ap D3 Da L Arbors Rd° /n\ H690 F90AX D032-4-16-10 32.00 4 8.00 30.40 16.00 35.00 A 1.6 0.10 H690 F90AX D032-5-16-10 32.00 5 8.00 30.40 16.00 35.00 A 1.6 0.10 H690 F90AX D040-5-16-10 40.00 5 8.00 38.00 16.00 40.00 A 1.1 0.22 H690 F90AX D040-6-16-10 40.00 6 8.00 38.00 16.00 40.00 A 1.1 0.21 H690 F90AX D050-6-22-10 50.00 6 8.00 48.00 22.00 40.00 A 1.0 0.36 H690 F90AX D050-7-22-10 50.00 7 8.00 48.00 22.00 40.00 A 1.0 0.36 H690 F90AX D063-8-22-10 63.00 8 8.00 48.00 22.00 40.00 A 0.7 0.47 H690 F90AX D063-9-22-10 63.00 9 8.00 48.00 22.00 40.00 A 0.7 0.47 Spare Parts Designation / H690 F90AX D032-4-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X38-1515 H690 F90AX D032-5-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X38-1515 H690 F90AX D040-5-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912 H690 F90AX D040-6-16-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M8X30DIN912 H690 F90AX D050-6-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912 H690 F90AX D050-7-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912 H690 F90AX D063-8-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912 H690 F90AX D063-9-22-10 SR 10508082-HG BLD T08/M7 SW4-SD SR M10X25 DIN912 690 LINE H690 TNKX 1005 Triangular Inserts with 6 Helical Cutting Edges, for 90° Shoulder Accuracy t j Dimensions Recommended Machining Data Designation l ap di S r F IC330 IC830 IC5400 IC808 IC810 ap (mm) fz (mm/t) H690 TNKX 100504PNTR 8.48 8.00 6.20 4.70 0.40 0.80 1.00-8.00 0.08-0.15 /SCAR HGH LINES
