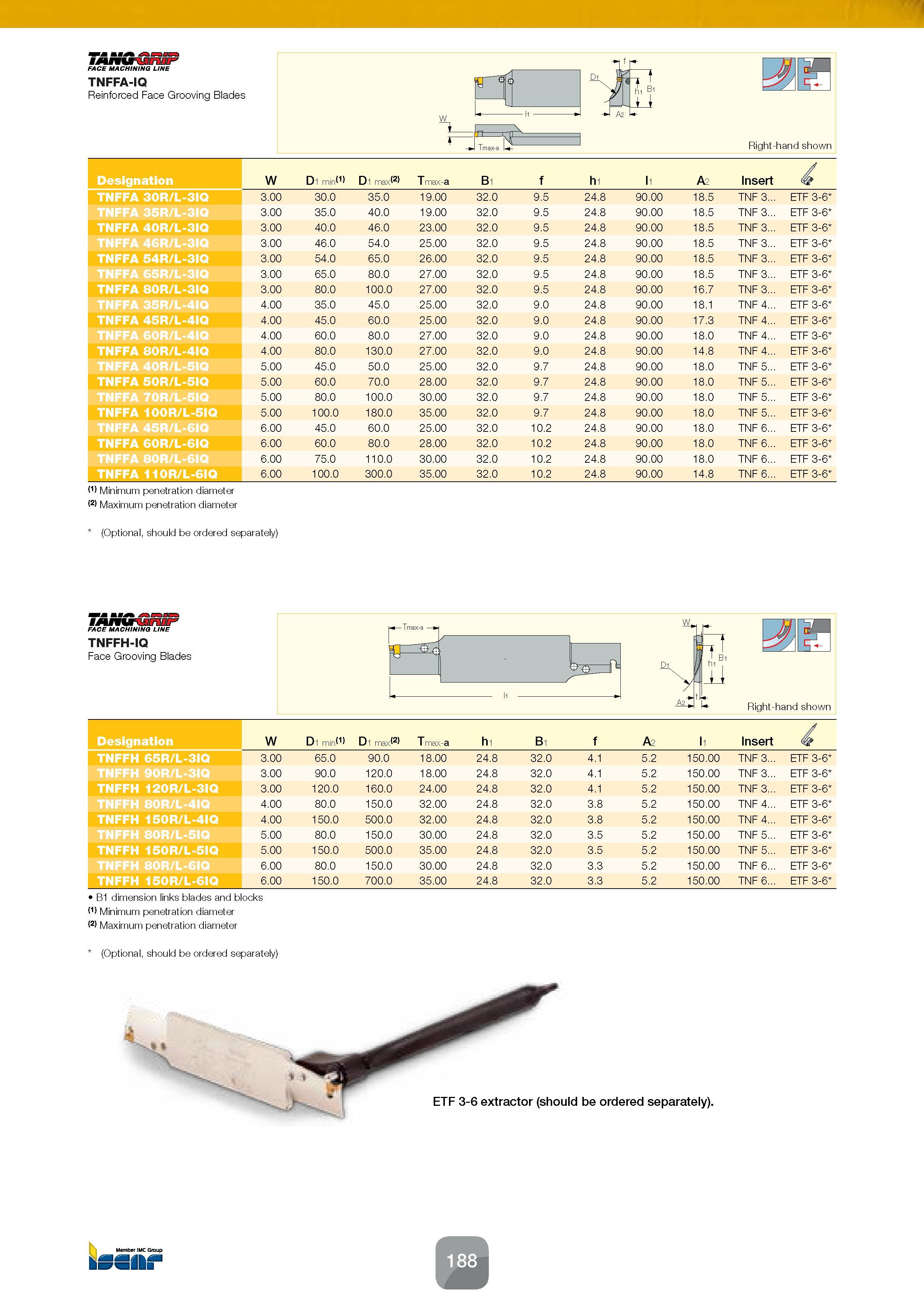

FACE MACHINING LINE TNFFA-IQ Reinforced Face Grooving Blades Designation TNFFA 30R/L-3IQ TNFFA 35R/L-3IQ TNFFA 40R/L-3IQ TNFFA 46R/L-3IQ TNFFA 54R/L-3IQ TNFFA 65R/L-3IQ TNFFA 80R/L-3IQ TNFFA 35R/L-4IQ TNFFA 45R/L-4IQ TNFFA 60R/L-4IQ TNFFA 80R/L-4IQ TNFFA 40R/L-5IQ TNFFA 50R/L-5IQ TNFFA 70R/L-5IQ TNFFA 100R/L-5IQ TNFFA 45R/L-6IQ TNFFA 60R/L-6IQ TNFFA 80R/L-6IQ TNFFA 110R/L-6IQ W D1 min(1) D1 max(2) Tmax-a B1 f h1 l1 A2 Insert 4 3.00 30.0 35.0 19.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 35.0 40.0 19.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 40.0 46.0 23.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 46.0 54.0 25.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 54.0 65.0 26.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 65.0 80.0 27.00 32.0 9.5 24.8 90.00 18.5 TNF 3... ETF 3-6 3.00 80.0 100.0 27.00 32.0 9.5 24.8 90.00 16.7 TNF 3... ETF 3-6 4.00 35.0 45.0 25.00 32.0 9.0 24.8 90.00 18.1 TNF 4... ETF 3-6 4.00 45.0 60.0 25.00 32.0 9.0 24.8 90.00 17.3 TNF 4... ETF 3-6 4.00 60.0 80.0 27.00 32.0 9.0 24.8 90.00 18.0 TNF 4... ETF 3-6 4.00 80.0 130.0 27.00 32.0 9.0 24.8 90.00 14.8 TNF 4... ETF 3-6 5.00 45.0 50.0 25.00 32.0 9.7 24.8 90.00 18.0 TNF 5... ETF 3-6 5.00 60.0 70.0 28.00 32.0 9.7 24.8 90.00 18.0 TNF 5... ETF 3-6 5.00 80.0 100.0 30.00 32.0 9.7 24.8 90.00 18.0 TNF 5... ETF 3-6 5.00 100.0 180.0 35.00 32.0 9.7 24.8 90.00 18.0 TNF 5... ETF 3-6 6.00 45.0 60.0 25.00 32.0 10.2 24.8 90.00 18.0 TNF 6... ETF 3-6 6.00 60.0 80.0 28.00 32.0 10.2 24.8 90.00 18.0 TNF 6... ETF 3-6 6.00 75.0 110.0 30.00 32.0 10.2 24.8 90.00 18.0 TNF 6... ETF 3-6 6.00 100.0 300.0 35.00 32.0 10.2 24.8 90.00 14.8 TNF 6... ETF 3-6 (1) Minimum penetration diameter (2) Maximum penetration diameter (Optional, should be ordered separately) FACE MACHINING LINE TNFFH-IQ Face Grooving Blades Right-hand shown Designation TNFFH 65R/L-3IQ TNFFH 90R/L-3IQ TNFFH 120R/L-3IQ TNFFH 80R/L-4IQ TNFFH 150R/L-4IQ TNFFH 80R/L-5IQ TNFFH 150R/L-5IQ TNFFH 80R/L-6IQ TNFFH 150R/L-6IQ W D1 min(1) D1 max(2) Tmax-a hi B1 f A2 l1 Insert 3.00 65.0 90.0 18.00 24.8 32.0 4.1 5.2 150.00 TNF 3... ETF 3-6 3.00 90.0 120.0 18.00 24.8 32.0 4.1 5.2 150.00 TNF 3... ETF 3-6 3.00 120.0 160.0 24.00 24.8 32.0 4.1 5.2 150.00 TNF 3... ETF 3-6 4.00 80.0 150.0 32.00 24.8 32.0 3.8 5.2 150.00 TNF 4... ETF 3-6 4.00 150.0 500.0 32.00 24.8 32.0 3.8 5.2 150.00 TNF 4... ETF 3-6 5.00 80.0 150.0 30.00 24.8 32.0 3.5 5.2 150.00 TNF 5... ETF 3-6 5.00 150.0 500.0 35.00 24.8 32.0 3.5 5.2 150.00 TNF 5... ETF 3-6 6.00 80.0 150.0 30.00 24.8 32.0 3.3 5.2 150.00 TNF 6... ETF 3-6 6.00 150.0 700.0 35.00 24.8 32.0 3.3 5.2 150.00 TNF 6... ETF 3-6 B1 dimension links blades and blocks (1) Minimum penetration diameter (2) Maximum penetration diameter (Optional, should be ordered separately)
