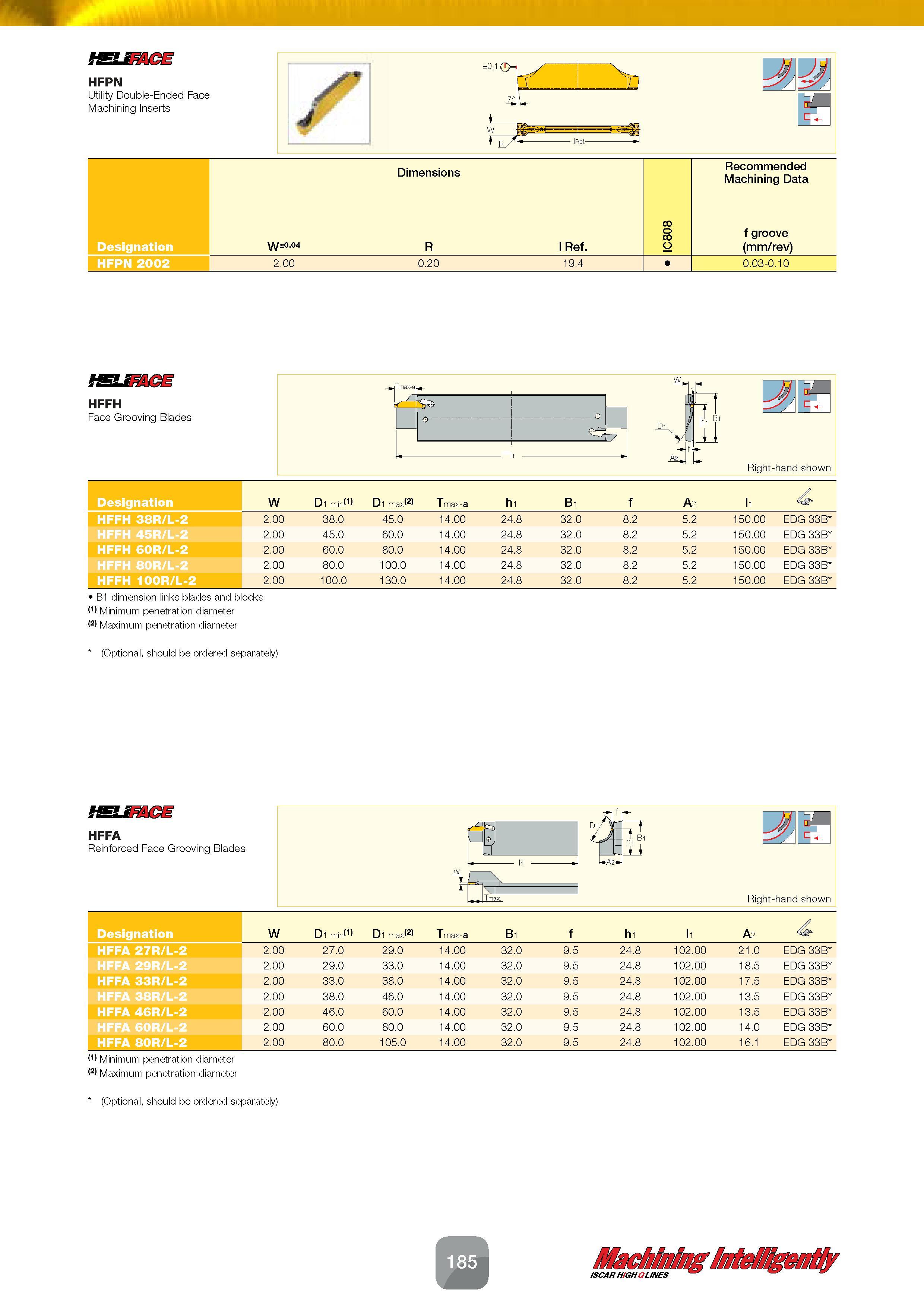

fsuacE HFPN Utility Double-Ended Face Machining Inserts ±0.10= w Ife p 1 Dimensions Recommended Machining Data Designation W±0.04 R i Ref. IC808 f groove (mm/rev) HFPN 2002 2.00 0.20 19.4 0.03-0.10 Ref mumcs HFFH Face Grooving Blades Designation HFFH 38R/L-2 HFFH 45R/L-2 HFFH 60R/L-2 HFFH 80R/L-2 HFFH 100R/L-2 W D1 min(1) D1 max(2) Tmax-a h1 B1 f A2 l1 2.00 38.0 45.0 14.00 24.8 32.0 8.2 5.2 150.00 EDG 33B 2.00 45.0 60.0 14.00 24.8 32.0 8.2 5.2 150.00 EDG 33B 2.00 60.0 80.0 14.00 24.8 32.0 8.2 5.2 150.00 EDG 33B 2.00 80.0 100.0 14.00 24.8 32.0 8.2 5.2 150.00 EDG 33B 2.00 100.0 130.0 14.00 24.8 32.0 8.2 5.2 150.00 EDG 33B B1 dimension links blades and blocks Minimum penetration diameter Maximum penetration diameter (Optional, should be ordered separately) fSUKACE HFFA Reinforced Face Grooving Blades Designation HFFA 27R/L-2 HFFA 29R/L-2 HFFA 33R/L-2 HFFA 38R/L-2 HFFA 46R/L-2 HFFA 60R/L-2 HFFA 80R/L-2 W D1 min(1) Di max(2) Tmax-a Bi f hi ii A2 2.00 27.0 29.0 14.00 32.0 9.5 24.8 102.00 21.0 EDG 33B 2.00 29.0 33.0 14.00 32.0 9.5 24.8 102.00 18.5 EDG 33B 2.00 33.0 38.0 14.00 32.0 9.5 24.8 102.00 17.5 EDG 33B 2.00 38.0 46.0 14.00 32.0 9.5 24.8 102.00 13.5 EDG 33B 2.00 46.0 60.0 14.00 32.0 9.5 24.8 102.00 13.5 EDG 33B 2.00 60.0 80.0 14.00 32.0 9.5 24.8 102.00 14.0 EDG 33B 2.00 80.0 105.0 14.00 32.0 9.5 24.8 102.00 16.1 EDG 33B (1) Minimum penetration diameter (2) Maximum penetration diameter (Optional, should be ordered separately)
