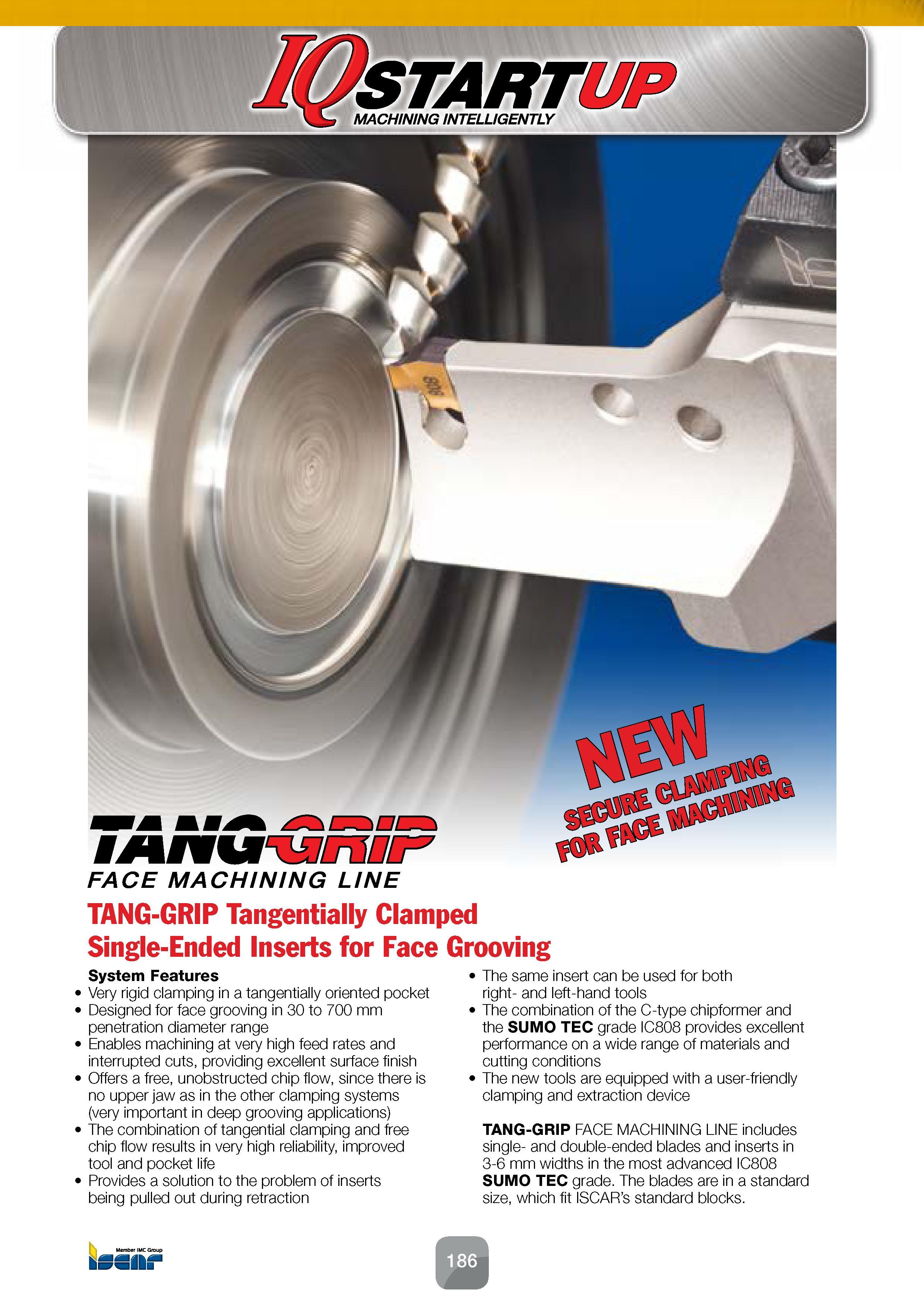

Mivuvnir FACE MACHINING LINE TANG-GRIP Tangentially Clamped Single-Ended Inserts for Face Grooving System Features Very rigid clamping in a tangentially oriented pocket Designed for face grooving in 30 to 700 mm penetration diameter range Enables machining at very high feed rates and interrupted cuts, providing excellent surface finish Offers a free, unobstructed chip flow, since there is no upper jaw as in the other clamping systems (very important in deep grooving applications) The combination of tangential clamping and free chip flow results in very high reliability, improved tool and pocket life Provides a solution to the problem of inserts being pulled out during retraction The same insert can be used for both right- and left-hand tools The combination of the C-type chipformer and the SUMO TEC grade IC808 provides excellent performance on a wide range of materials and cutting conditions The new tools are equipped with a user-friendly clamping and extraction device TANG-GRIP FACE MACHINING LINE includes single- and double-ended blades and inserts in 3-6 mm widths in the most advanced IC808 SUMO TEC grade. The blades are in a standard size, which fit ISCAR’s standard blocks. JS Member IMC Group 186
