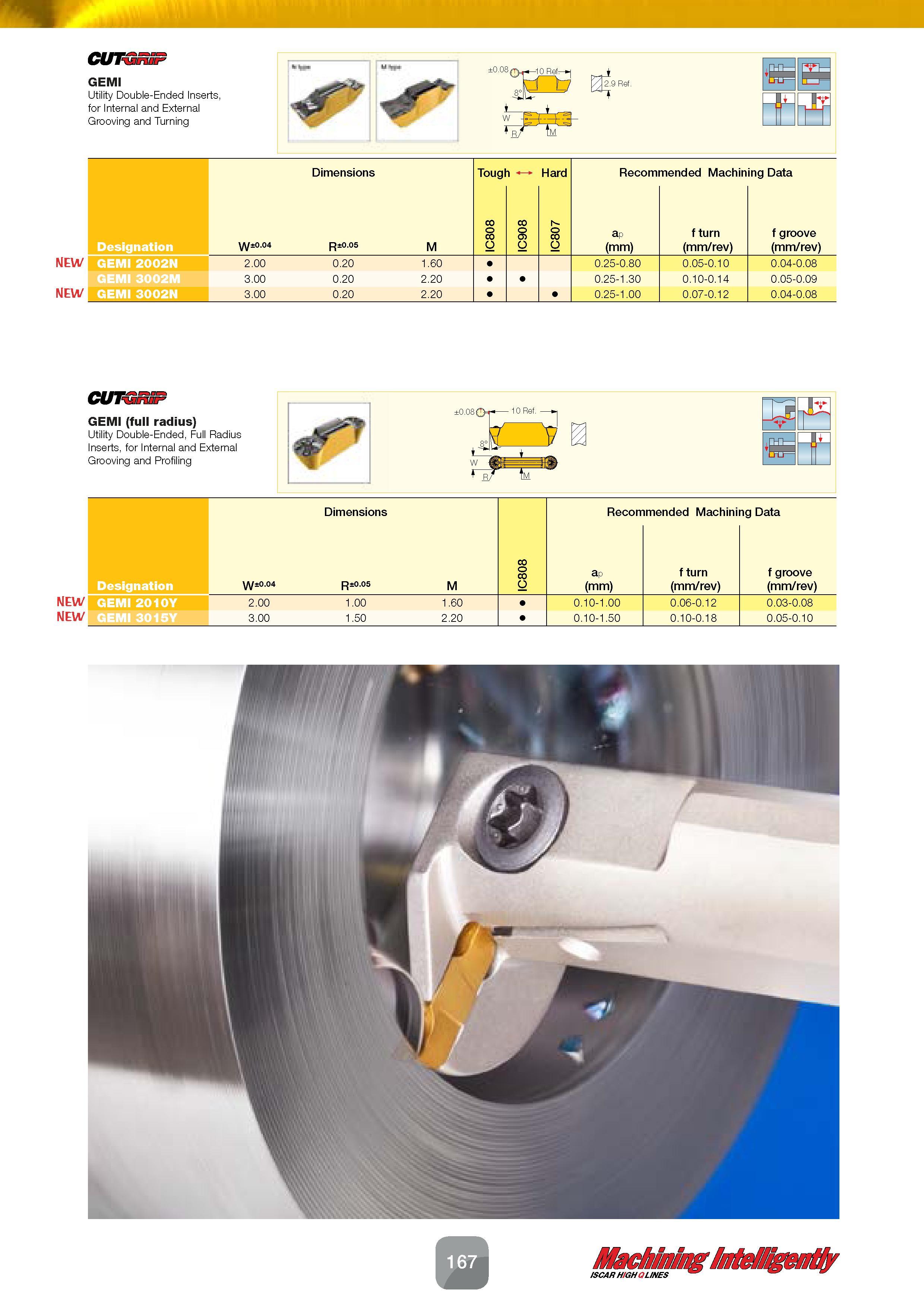

CUTSnir GEMI Utility Double-Ended Inserts, for Internal and External Grooving and Turning ±a08 =r -10 Ref & IM m & Dimensions Recommended Machining Data Designation W±0.04 R±005 M IC808 IC908 0 8 IC ap (mm) f turn (mm/rev) f groove (mm/rev) GEMI 2002N 2.00 0.20 1.60 0.25-0.80 0.05-0.10 0.04-0.08 GEMI3002M 3.00 0.20 2.20 0.25-1.30 0.10-0.14 0.05-0.09 GEMI3002N 3.00 0.20 2.20 0.25-1.00 0.07-0.12 0.04-0.08 NEW CUTGRiP GEMI (full radius) Utility Double-Ended, Full Radius Inserts, for Internal and External Grooving and Profiling ±0.08(>p" y W±0.04 2.00 3.00 Dimensions R±°.°5 M 1.00 1.50 1.60 2.20 co 0 8 C Recommended Machining Data ap (mm) 0.10-1.00 0.10-1.50 f turn (mm/rev) 0.06-0.12 0.10-0.18 f groove (mm/rev) 0.03-0.08 0.05-0.10 Designation GEMI 2010Y GEMI 3015Y
