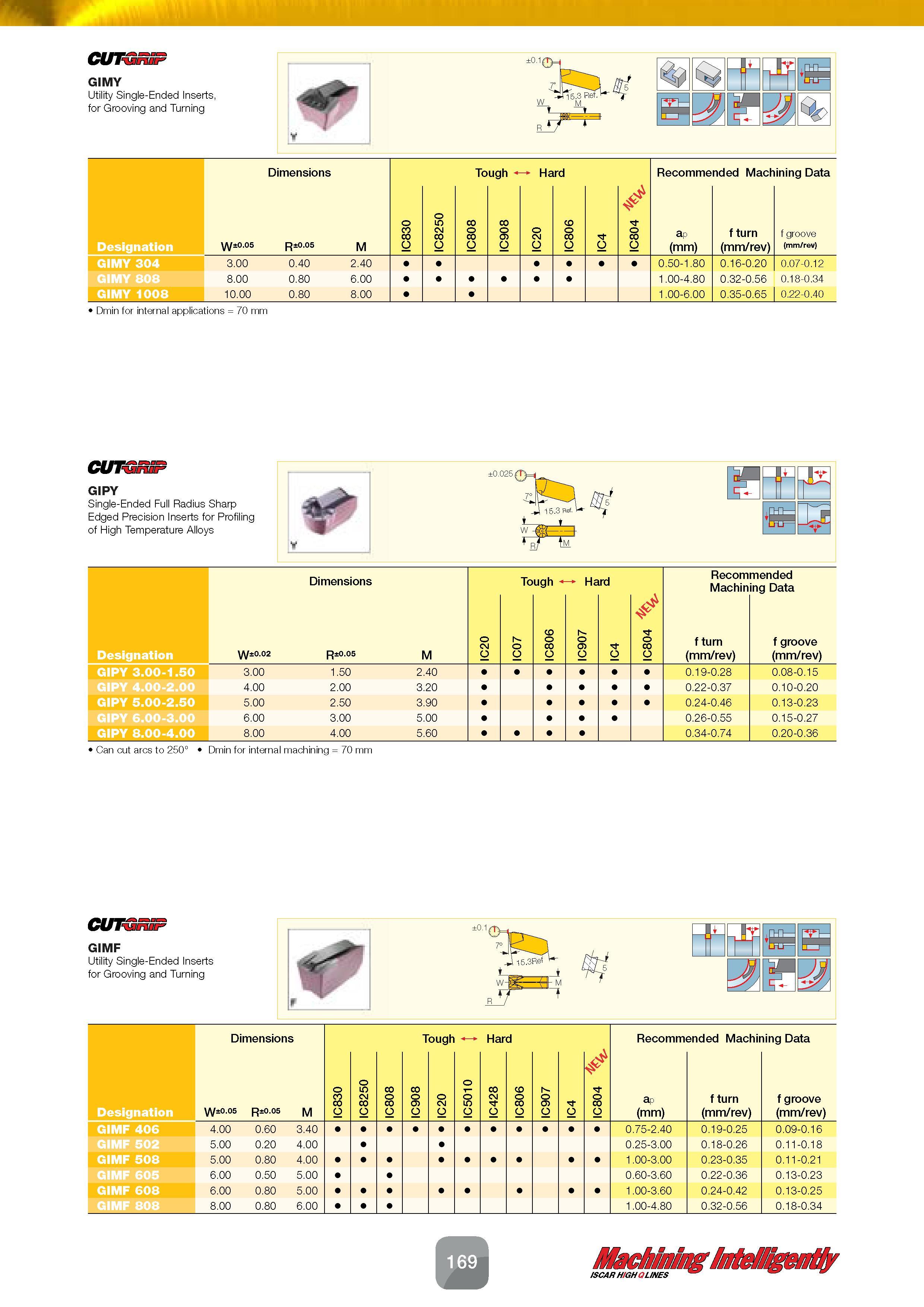

CUTSnir GIMY Utility Single-Ended Inserts, for Grooving and Turning ±0'1dH 7 W 15.3 Ref.' M '4' ct;: H ‘ES Hi J ¥ Designation GIMY 304 GIMY 808 GIMY 1008 Dmin for internal applications = 70 mm Dimensions Recommended Machining Data W±0.05 R±005 M IC830 IC8250 IC808 IC908 IC20 IC806 IC4 IC804 ap (mm) f turn (mm/rev) f groove (mm/rev) 3.00 0.40 2.40 0.50-1.80 0.16-0.20 0.07-0.12 8.00 0.80 6.00 1.00-4.80 0.32-0.56 0.18-0.34 10.00 0.80 8.00 1.00-6.00 0.35-0.65 0.22-0.40 CUTGRiF GIPY Single-Ended Full Radius Sharp Edged Precision Inserts for Profiling of High Temperature Alloys I f -v Designation Dimensions Recommended Machining Data W±0.02 R±°.°5 M IC20 IC07 IC806 IC907 4 IC IC804 f turn (mm/rev) f groove (mm/rev) GIPY 3.00-1.50 3.00 1.50 2.40 0.19-0.28 0.08-0.15 GIPY 4.00-2.00 4.00 2.00 3.20 0.22-0.37 0.10-0.20 GIPY 5.00-2.50 5.00 2.50 3.90 0.24-0.46 0.13-0.23 GIPY 6.00-3.00 6.00 3.00 5.00 0.26-0.55 0.15-0.27 GIPY 8.00-4.00 8.00 4.00 5.60 0.34-0.74 0.20-0.36 Can cut arcs to 250° Dmin for internal machining = 70 mm CUTGnSF GIMF Utility Single-Ended Inserts for Grooving and Turning KsrW M i & J, It Dimensions Tough 1 Hard Recommended Machining Data Designation W±005 R±005 M IC830 IC8250 IC808 IC908 IC20 IC5010 IC428 IC806 0 9 IC IC4 IC804 ap (mm) f turn (mm/rev) f groove (mm/rev) GIMF 406 4.00 0.60 3.40 0.75-2.40 0.19-0.25 0.09-0.16 GIMF 502 5.00 0.20 4.00 0.25-3.00 0.18-0.26 0.11-0.18 GIMF 508 5.00 0.80 4.00 1.00-3.00 0.23-0.35 0.11-0.21 GIMF 605 6.00 0.50 5.00 0.60-3.60 0.22-0.36 0.13-0.23 GIMF 608 6.00 0.80 5.00 1.00-3.60 0.24-0.42 0.13-0.25 GIMF 808 8.00 0.80 6.00 1.00-4.80 0.32-0.56 0.18-0.34 ISCAR HGH LINES 5 5
