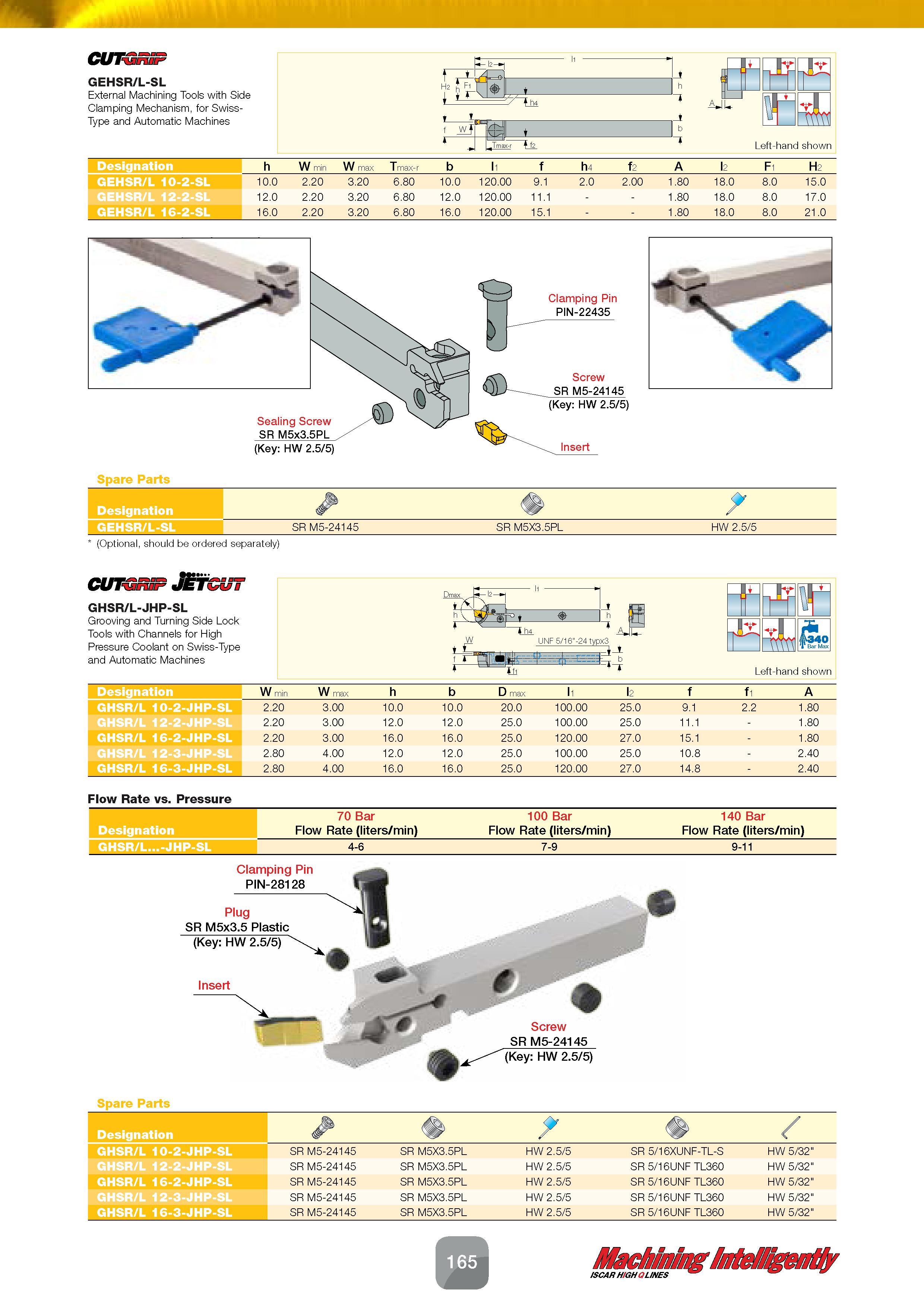

CUTGniF GEHSR/L-SL External Machining Tools with Side Clamping Mechanism, for Swiss-Type and Automatic Machines i - I2-+- ll j r 1 i dl h i Csf h4 AJ „ . t u r f Wj b Tmax-r f Left-hand shown Designation h W min W max Tmax-r b l1 f h4 f2 A l2 F1 H2 GEHSR/L 10-2-SL 10.0 2.20 3.20 6.80 10.0 120.00 9.1 2.0 2.00 1.80 18.0 8.0 15.0 GEHSR/L 12-2-SL 12.0 2.20 3.20 6.80 12.0 120.00 11.1 - - 1.80 18.0 8.0 17.0 GEHSR/L 16-2-SL 16.0 2.20 3.20 6.80 16.0 120.00 15.1 - - 1.80 18.0 8.0 21.0 Clamping Pin PIN-22435 (Key: HW 2.5/5) Spare Parts Designation . GEHSR/L-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 (Optional, should be ordered separately) CUTGniF JifCUT GHSR/L-JHP-SL Grooving and Turning Side Lock Tools with Channels for High Pressure Coolant on Swiss-Type and Automatic Machines h t H r Sio 1 Bar Max Left-hand shown Designation W min W max h b D max l1 l2 f f1 A GHSR/L 10-2-JHP-SL 2.20 3.00 10.0 10.0 20.0 100.00 25.0 9.1 2.2 1.80 GHSR/L 12-2-JHP-SL 2.20 3.00 12.0 12.0 25.0 100.00 25.0 11.1 - 1.80 GHSR/L 16-2-JHP-SL 2.20 3.00 16.0 16.0 25.0 120.00 27.0 15.1 - 1.80 GHSR/L 12-3-JHP-SL 2.80 4.00 12.0 12.0 25.0 100.00 25.0 10.8 - 2.40 GHSR/L 16-3-JHP-SL 2.80 4.00 16.0 16.0 25.0 120.00 27.0 14.8 - 2.40 Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) GHSR/L...-JHP-SL 4-6 7-9 9-11 Clamping Pin PIN-28128 (Key: HW 2.5/5) Spare Parts Designation > GHSR/L 10-2-JHP-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16XUNF-TL-S HW 5/32" GHSR/L 12-2-JHP-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32" GHSR/L 16-2-JHP-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32" GHSR/L 12-3-JHP-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32" GHSR/L 16-3-JHP-SL SR M5-24145 SR M5X3.5PL HW 2.5/5 SR 5/16UNF TL360 HW 5/32" SCARHGH LINES
