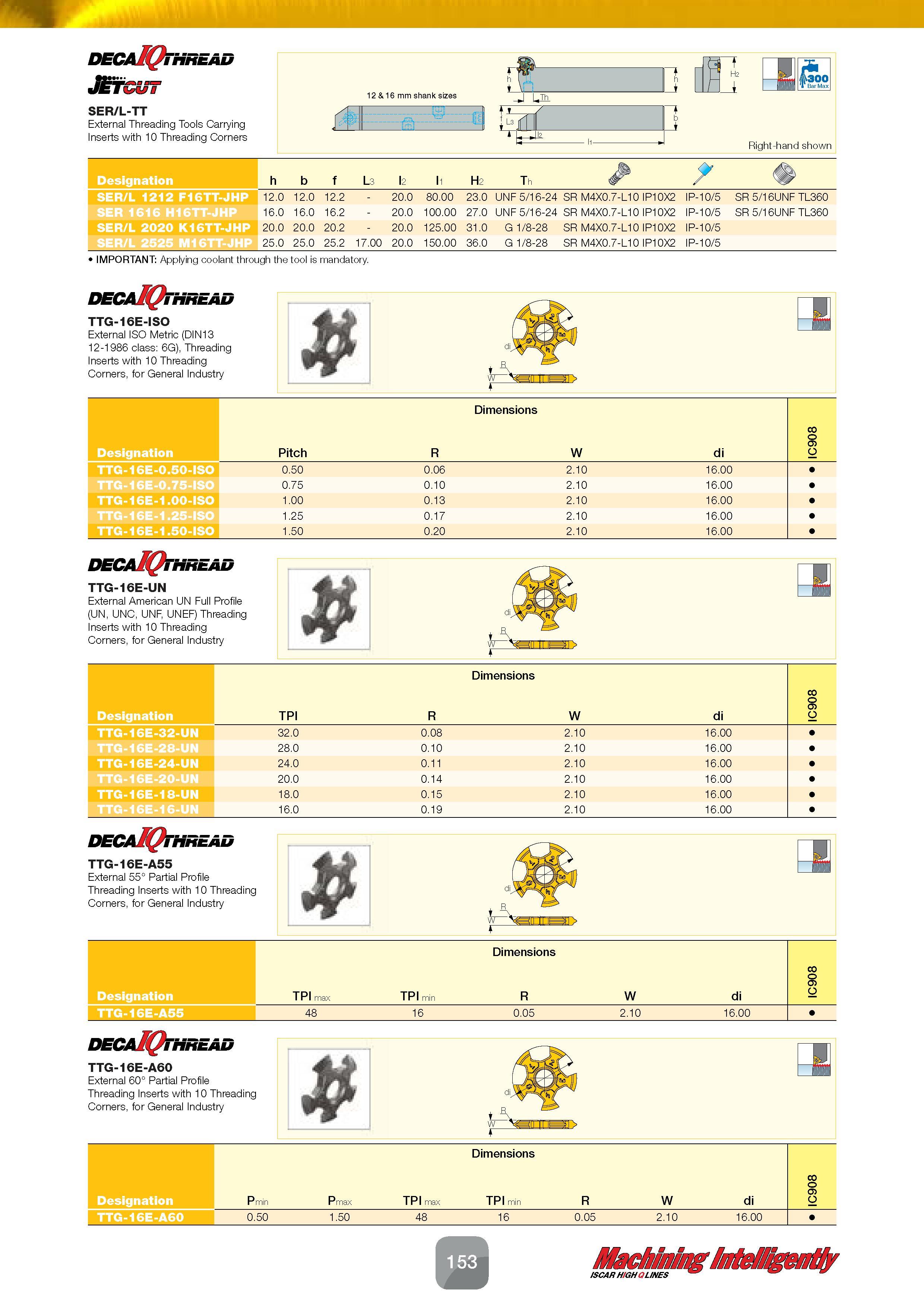

DECaIQi Jetcut Tithejuj SER/L-TT External Threading Tools Carrying Inserts with 10 Threading Corners Designation h b f L3 l2 l1 H2 Th . SER/L 1212 F16TT-JHP 12.0 12.0 12.2 - 20.0 80.00 23.0 UNF 5/16-24 SR M4X0.7-L10 IP10X2 IP-10/5 SR 5/16UNF TL360 SER 1616 H16TT-JHP 16.0 16.0 16.2 - 20.0 100.00 27.0 UNF 5/16-24 SR M4X0.7-L10 IP10X2 IP-10/5 SR 5/16UNF TL360 SER/L 2020 K16TT-JHP 20.0 20.0 20.2 - 20.0 125.00 31.0 G 1/8-28 SR M4X0.7-L10 IP10X2 IP-10/5 SER/L 2525 M16TT-JHP 25.0 25.0 25.2 17.00 20.0 150.00 36.0 G 1/8-28 SR M4X0.7-L10 IP10X2 IP-10/5 IMPORTANT: Applying coolant through the tool is mandatory. DECaIQi inifEAU TTG-16E-ISO External ISO Metric (DIN13 12-1986 class: 6G), Threading Inserts with 10 Threading Corners, for General Industry W \p TT Dimensions Designation Pitch R W di co o 05 IC TTG-16E-0.50-ISO 0.50 0.06 2.10 16.00 TTG-16E-0.75-ISO 0.75 0.10 2.10 16.00 TTG-16E-1.00-ISO 1.00 0.13 2.10 16.00 TTG-16E-1.25-ISO 1.25 0.17 2.10 16.00 TTG-16E-1.50-ISO 1.50 0.20 2.10 16.00 DECaH THheAu TTG-16E-UN External American UN Full Profile (UN, UNC, UNF, UNEF) Threading Inserts with 10 Threading Corners, for General Industry Dimensions Designation TPI R W di co 0 05 IC TTG-16E-32-UN 32.0 0.08 2.10 16.00 TTG-16E-28-UN 28.0 0.10 2.10 16.00 TTG-16E-24-UN 24.0 0.11 2.10 16.00 TTG-16E-20-UN 20.0 0.14 2.10 16.00 TTG-16E-18-UN 18.0 0.15 2.10 16.00 TTG-16E-16-UN 16.0 0.19 2.10 16.00 DECaT THmeAu TTG-16E-A55 External 55° Partial Profile Threading Inserts with 10 Threading Corners, for General Industry Dimensions Designation TPI max TPI min R W di co o 05 IC TTG-16E-A55 48 16 0.05 2.10 16.00 decaIQthread TTG-16E-A60 External 60° Partial Profile Threading Inserts with 10 Threading Corners, for General Industry Dimensions Designation Pmin Pmax TPI max TPI min R W di IC908 TTG-16E-A60 0.50 1.50 48 16 0.05 2.10 16.00 /SCAR HGH LINES di
