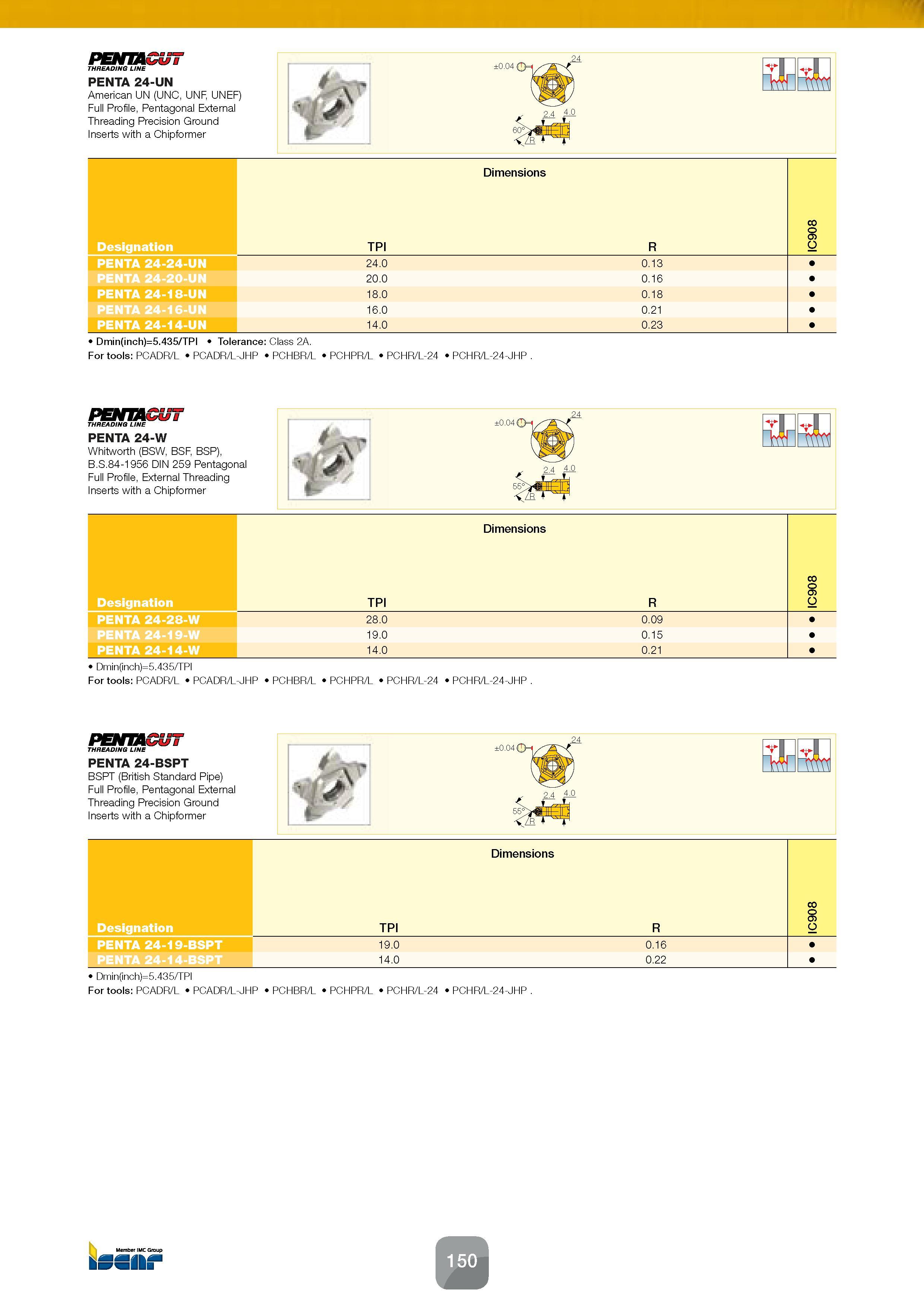

PENTACUT THREADING LINE PENTA 24-UN American UN (UNC, UNF, UNEF) Full Profile, Pentagonal External Threading Precision Ground Inserts with a Chipformer Dimensions Designation TPI R IC908 PENTA 24-24-UN 24.0 0.13 PENTA 24-20-UN 20.0 0.16 PENTA 24-18-UN 18.0 0.18 PENTA 24-16-UN 16.0 0.21 PENTA 24-14-UN 14.0 0.23 Dmin(inch)=5.435/TPI Tolerance: Class 2A. For tools: PCADR/L PCADR/L-JHP PCHBR/L PCHPR/L PCHR/L-24 PCHR/L-24-JHP . PENTACUT THREADING LINE PENTA 24-W Whitworth (BSW, BSF, BSP), B.S.84-1956 DIN 259 Pentagonal Full Profile, External Threading Inserts with a Chipformer Dimensions Designation PENTA 24-28-W PENTA 24-19-W PENTA 24-14-W 8 0 9 TPI _O 28.0 0.09 19.0 0.15 14.0 0.21 Dmin(inch)=5.435/TPI For tools: PCADR/L PCADR/L-JHP PCHBR/L PCHPR/L PCHR/L-24 PCHR/L-24-JHP . PENTACUT THREADING LINE PENTA 24-BSPT BSPT (British Standard Pipe) Full Profile, Pentagonal External Threading Precision Ground Inserts with a Chipformer Dimensions Designation TPI R IC908 PENTA 24-19-BSPT 19.0 0.16 PENTA 24-14-BSPT 14.0 0.22 Dmin(inch)=5.435/TPI For tools: PCADR/L PCADR/L-JHP PCHBR/L PCHPR/L PCHR/L-24 PCHR/L-24-JHP . JS Member IMC Group 24
