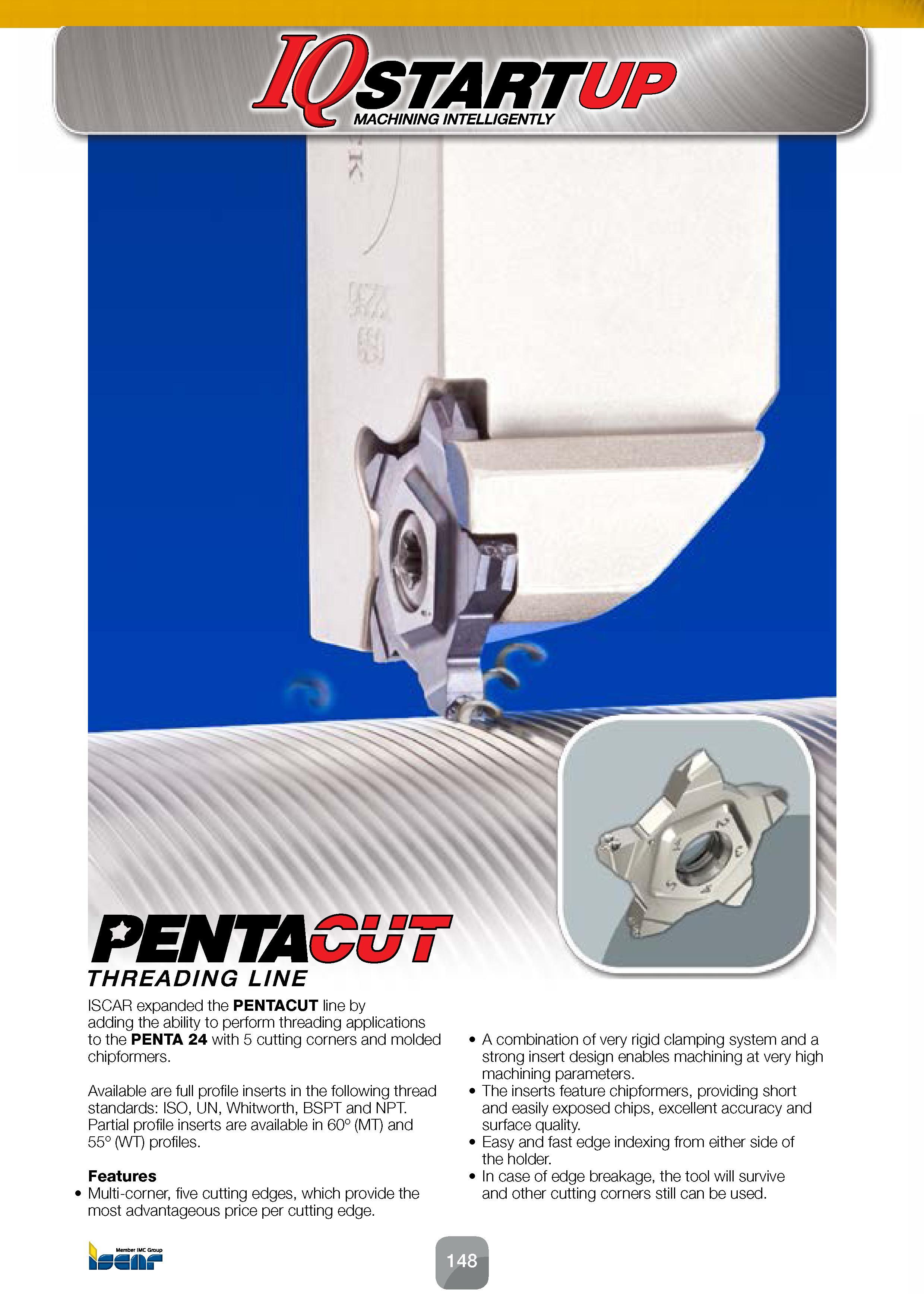

THREADING LINE ISCAR expanded the PENTACUT line by adding the ability to perform threading applications to the PENTA 24 with 5 cutting corners and molded chipformers. Available are full profile inserts in the following thread standards: ISO, UN, Whitworth, BSPT and NPT. Partial profile inserts are available in 60° (MT) and 55° (WT) profiles. Features Multi-corner, five cutting edges, which provide the most advantageous price per cutting edge. A combination of very rigid clamping system and a strong insert design enables machining at very high machining parameters. The inserts feature chipformers, providing short and easily exposed chips, excellent accuracy and surface quality. Easy and fast edge indexing from either side of the holder. In case of edge breakage, the tool will survive and other cutting corners still can be used. Member IMC Group
