276 Каталог ISCAR 2012 Режущий осевой инструмент для обработки отверстий в металлах Стр.E26

Каталог ISCAR 2012 Обработка отверстий Стр. E26 0276 Lab2u

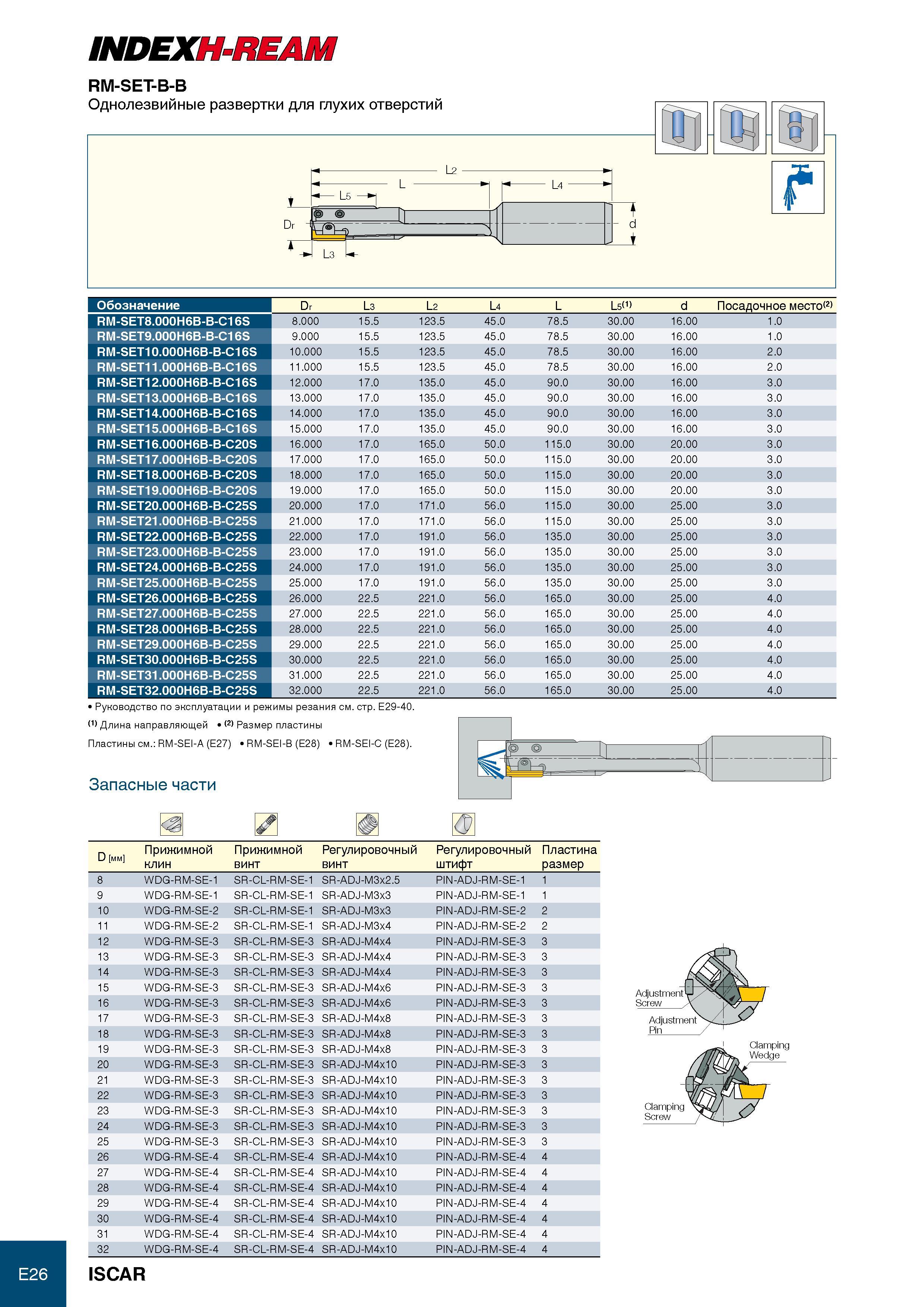

INDEXH-REAM RM-SET-B-B Обозначение Dr L3 L2 L4 L Ls(1) d Посадочное место(2) RM-SET8.000H6B-B-C16S 8.000 15.5 123.5 45.0 78.5 30.00 16.00 1.0 RM-SET9.000H6B-B-C16S 9.000 15.5 123.5 45.0 78.5 30.00 16.00 1.0 RM-SET10.000H6B-B-C16S 10.000 15.5 123.5 45.0 78.5 30.00 16.00 2.0 RM-SET11.000H6B-B-C16S 11.000 15.5 123.5 45.0 78.5 30.00 16.00 2.0 RM-SET12.000H6B-B-C16S 12.000 17.0 135.0 45.0 90.0 30.00 16.00 3.0 RM-SET13.000H6B-B-C16S 13.000 17.0 135.0 45.0 90.0 30.00 16.00 3.0 RM-SET14.000H6B-B-C16S 14.000 17.0 135.0 45.0 90.0 30.00 16.00 3.0 RM-SET15.000H6B-B-C16S 15.000 17.0 135.0 45.0 90.0 30.00 16.00 3.0 RM-SET16.000H6B-B-C20S 16.000 17.0 165.0 50.0 115.0 30.00 20.00 3.0 RM-SET17.000H6B-B-C20S 17.000 17.0 165.0 50.0 115.0 30.00 20.00 3.0 RM-SET18.000H6B-B-C20S 18.000 17.0 165.0 50.0 115.0 30.00 20.00 3.0 RM-SET19.000H6B-B-C20S 19.000 17.0 165.0 50.0 115.0 30.00 20.00 3.0 RM-SET20.000H6B-B-C25S 20.000 17.0 171.0 56.0 115.0 30.00 25.00 3.0 RM-SET21.000H6B-B-C25S 21.000 17.0 171.0 56.0 115.0 30.00 25.00 3.0 RM-SET22.000H6B-B-C25S 22.000 17.0 191.0 56.0 135.0 30.00 25.00 3.0 RM-SET23.000H6B-B-C25S 23.000 17.0 191.0 56.0 135.0 30.00 25.00 3.0 RM-SET24.000H6B-B-C25S 24.000 17.0 191.0 56.0 135.0 30.00 25.00 3.0 RM-SET25.000H6B-B-C25S 25.000 17.0 191.0 56.0 135.0 30.00 25.00 3.0 RM-SET26.000H6B-B-C25S 26.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET27.000H6B-B-C25S 27.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET28.000H6B-B-C25S 28.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET29.000H6B-B-C25S 29.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET30.000H6B-B-C25S 30.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET31.000H6B-B-C25S 31.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 RM-SET32.000H6B-B-C25S 32.000 22.5 221.0 56.0 165.0 30.00 25.00 4.0 Руководство по эксплуатации и режимы резания см. стр. E29-40. (1) Длина направляющей (2) Размер пластины Пластины см. RM-SEI-A (E27) RM-SEI-B (E28) RM-SEI-C (E28). Запасные части о) to) j j D мм Прижимной клин Прижимной винт Регулировочный винт Регулировочный штифт Пластина размер 8 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x2.5 PIN-ADJ-RM-SE-1 1 9 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-1 1 10 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-2 2 11 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x4 PIN-ADJ-RM-SE-2 2 12 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 13 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 14 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3 15 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3 16 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3 17 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 18 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 19 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3 20 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 21 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 22 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 23 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 24 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 25 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3 26 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 27 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 28 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 29 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 30 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 31 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 32 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4 ISCAR
