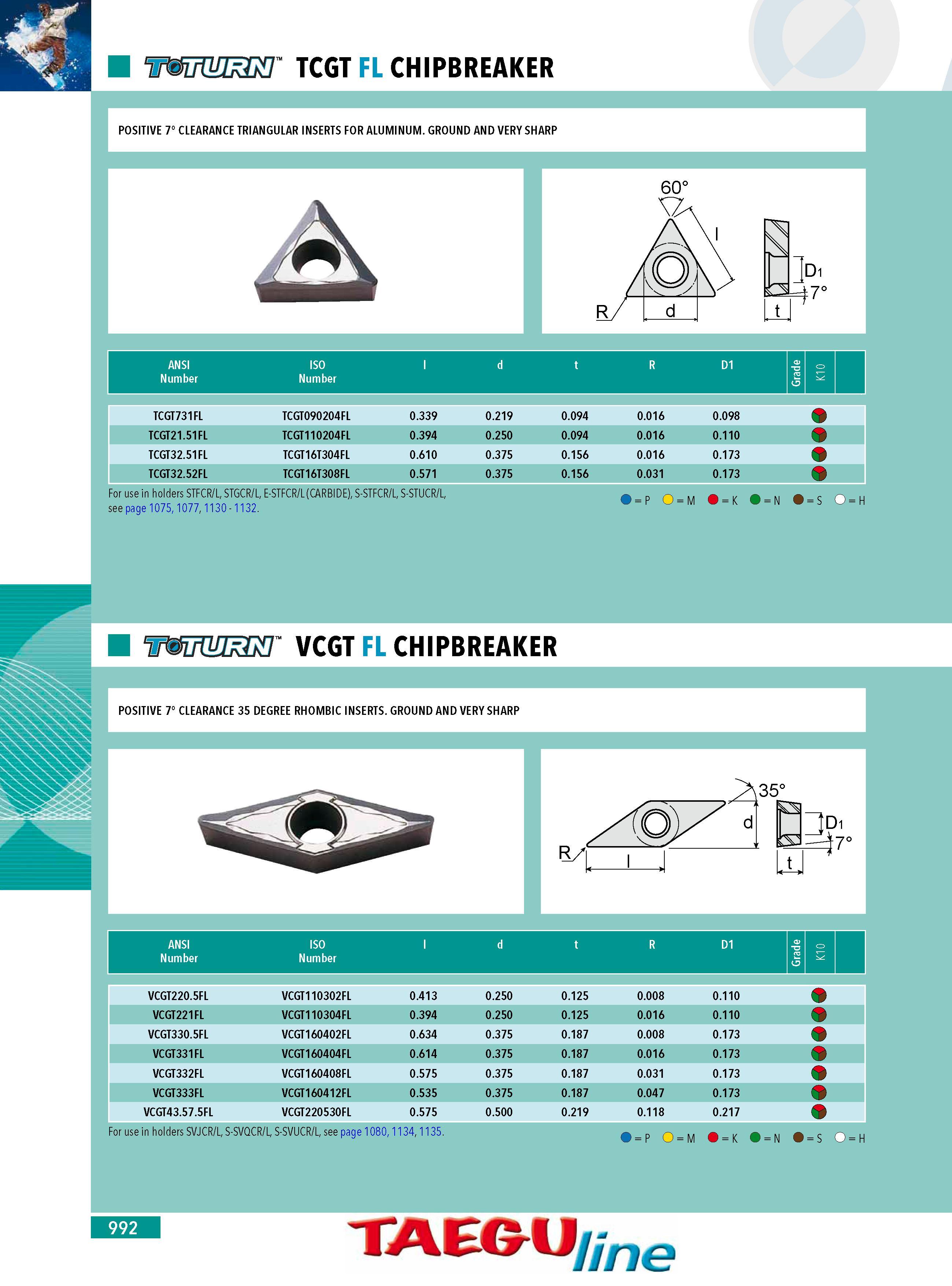

TCGT FL CHIPBREAKER POSITIVE 7 CLEARANCE TRIANGULAR INSERTS FOR ALUMINUM. GROUND AND VERY SHARP ANASNISI ISO l d tt RR D1 e o 0 NuNmumbebrer Number c Gr I TCGT731FL TCGT090204FL 0.339 0.219 0.094 0.016 0.098 TCGT21.51FL TCGT110204FL 0.394 0.250 0.094 0.016 0.110 TCGT32.51FL TCGT16T304FL 0.610 0.375 0.156 0.016 0.173 TCGT32.52FL TCGT16T308FL 0.571 0.375 0.156 0.031 0.173 For use in holders STFCR L STGCR L E-STFCR L (CARBIDE) S-STFCR L S-STUCR L see page 1075 1077 1130 - 1132. O P O M O K O N O S O H VCGT FL CHIPBREAKER POSITIVE 7 CLEARANCE 35 DEGREE RHOMBIC INSERTS. GROUND AND VERY SHARP ANSI Number ISO Number 2i35 d VCGT220.5FL VCGT110302FL 0.413 0.250 0.125 0.008 0.110 VCGT221FL VCGT110304FL 0.394 0.250 0.125 0.016 0.110 VCGT330.5FL VCGT160402FL 0.634 0.375 0.187 0.008 0.173 VCGT331FL VCGT160404FL 0.614 0.375 0.187 0.016 0.173 VCGT332FL VCGT160408FL 0.575 0.375 0.187 0.031 0.173 VCGT333FL VCGT160412FL 0.535 0.375 0.187 0.047 0.173 VCGT43.57.5FL VCGT220530FL 0.575 0.500 0.219 0.118 0.217 For use in holders SVJCR L S-SVQCR L S-SVUCR L see page 1080 1134 1135. O P O M ) N S O H d R D1 t K 992 TAEGU line
