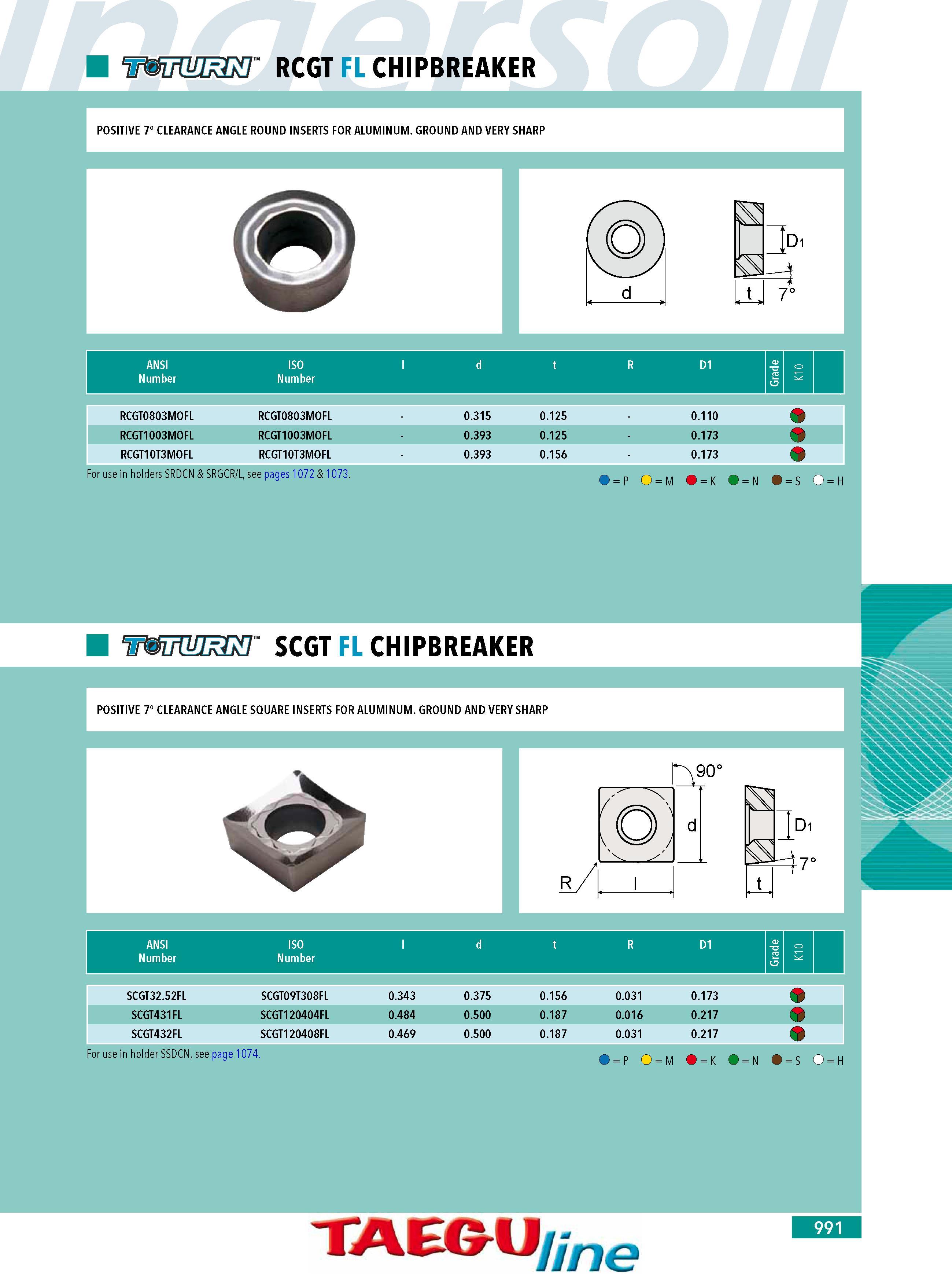

989 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.991

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 991 0989 Lab2u

RCGT FL CHIPBREAKER POSITIVE 7 CLEARANCE ANGLE ROUND INSERTS FOR ALUMINUM. GROUND AND VERY SHARP ANSI ISO l d t R D1 e Number Number c Gr I RCGT0803MOFL RCGT0803MOFL - 0.315 0.125 - 0.110 RCGT1003MOFL RCGT1003MOFL - 0.393 0.125 - 0.173 RCGT10T3MOFL RCGT10T3MOFL - 0.393 0.156 - 0.173 For use in holders SRDCN & SRGCR L see pages 1072 & 1073. O P O M O K O N O S O H ANSI ISO l d tt RR D1 Grade 0 NuNmumbebrer NNmber SCGT32.52FL SCGT09T308FL 0.343 0.375 0.156 0.031 0.173 SCGT431FL SCGT120404FL 0.484 0.500 0.187 0.016 0.217 SCGT432FL SCGT120408FL 0.469 0.500 0.187 0.031 0.217 For use in holder SSDCN see page 1074. P o M O K O N S o H TAE HJ 7e 991
