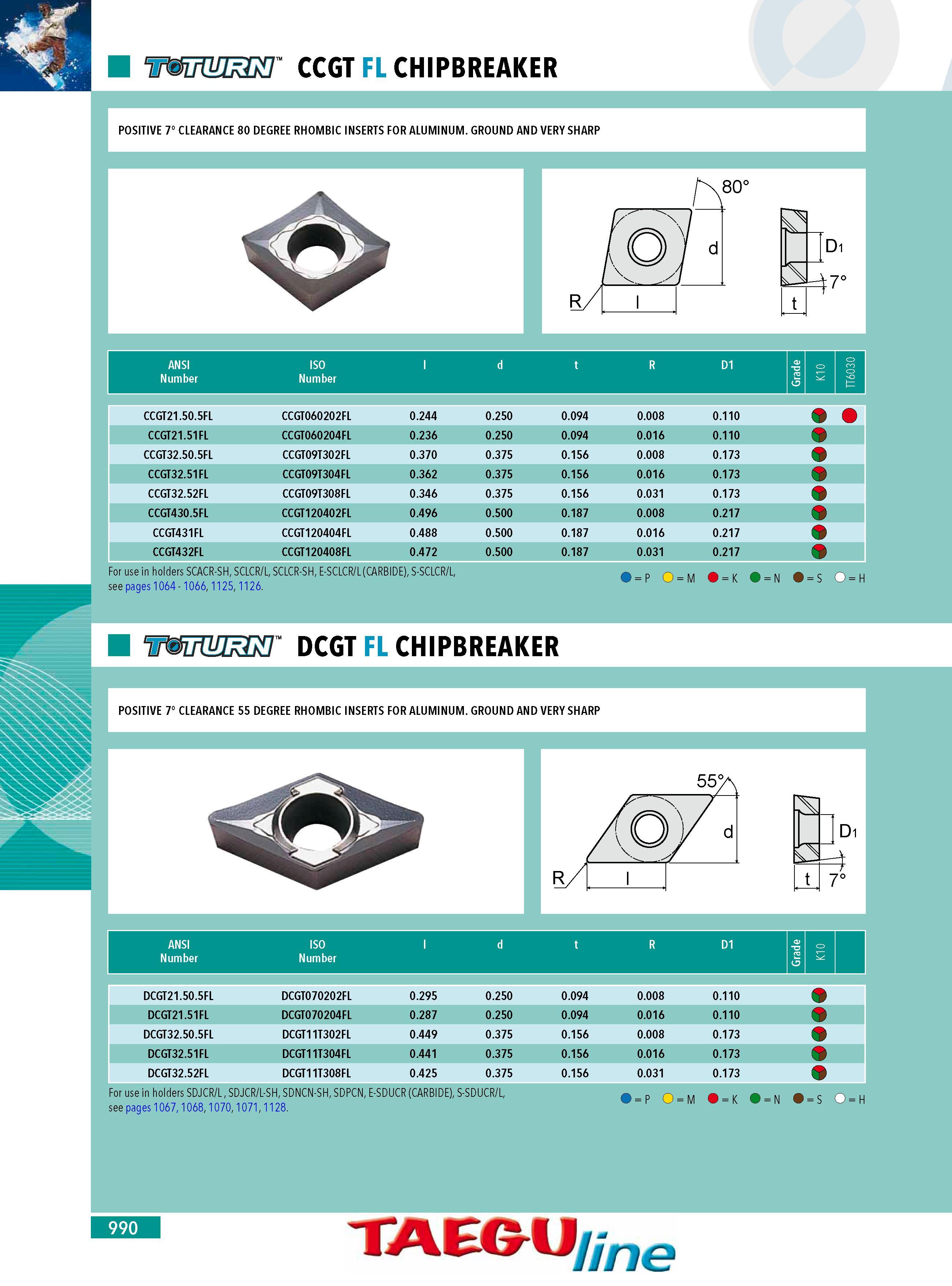

CCGT FL CHIPBREAKER POSITIVE 7 CLEARANCE 80 DEGREE RHOMBIC INSERTS FOR ALUMINUM. GROUND AND VERY SHARP p k -4 t Di ANASNISI ISO l d t RR D1 e o c Gr 0 TT6030 Number NNmber CCGT21.50.5FL CCGT060202FL 0.244 0.250 0.094 0.008 0.110 CCGT21.51FL CCGT060204FL 0.236 0.250 0.094 0.016 0.110 CCGT32.50.5FL CCGT09T302FL 0.370 0.375 0.156 0.008 0.173 CCGT32.51FL CCGT09T304FL 0.362 0.375 0.156 0.016 0.173 CCGT32.52FL CCGT09T308FL 0.346 0.375 0.156 0.031 0.173 CCGT430.5FL CCGT120402FL 0.496 0.500 0.187 0.008 0.217 CCGT431FL CCGT120404FL 0.488 0.500 0.187 0.016 0.217 CCGT432FL CCGT120408FL 0.472 0.500 0.187 0.031 0.217 For use in holders SCACR-SH SCLCR L SCLCR-SH E-SCLCR L (CARBIDE) S-SCLCR L see pages 1064 - 1066 1125 1126. O P O M O K O N O S O H VMJMkIZ DCGT FL CHIPBREAKER POSITIVE 7 CLEARANCE 55 DEGREE RHOMBIC INSERTS FOR ALUMINUM. GROUND AND VERY SHARP IS t Di ANSI ISO l d t R D1 e o Gr 0 Number Number I DCGT21.50.5FL DCGT070202FL 0.295 0.250 0.094 0.008 0.110 DCGT21.51FL DCGT070204FL 0.287 0.250 0.094 0.016 0.110 DCGT32.50.5FL DCGT11T302FL 0.449 0.375 0.156 0.008 0.173 DCGT32.51FL DCGT11T304FL 0.441 0.375 0.156 0.016 0.173 DCGT32.52FL DCGT11T308FL 0.425 0.375 0.156 0.031 0.173 For use in holders SDJCR L SDJCR L-SH SDNCN-SH SDPCN E-SDUCR (CARBIDE) S-SDUCR L see pages 1067 1068 1070 1071 1128. O P O M ) N O S O H K 990 TAEGU line
