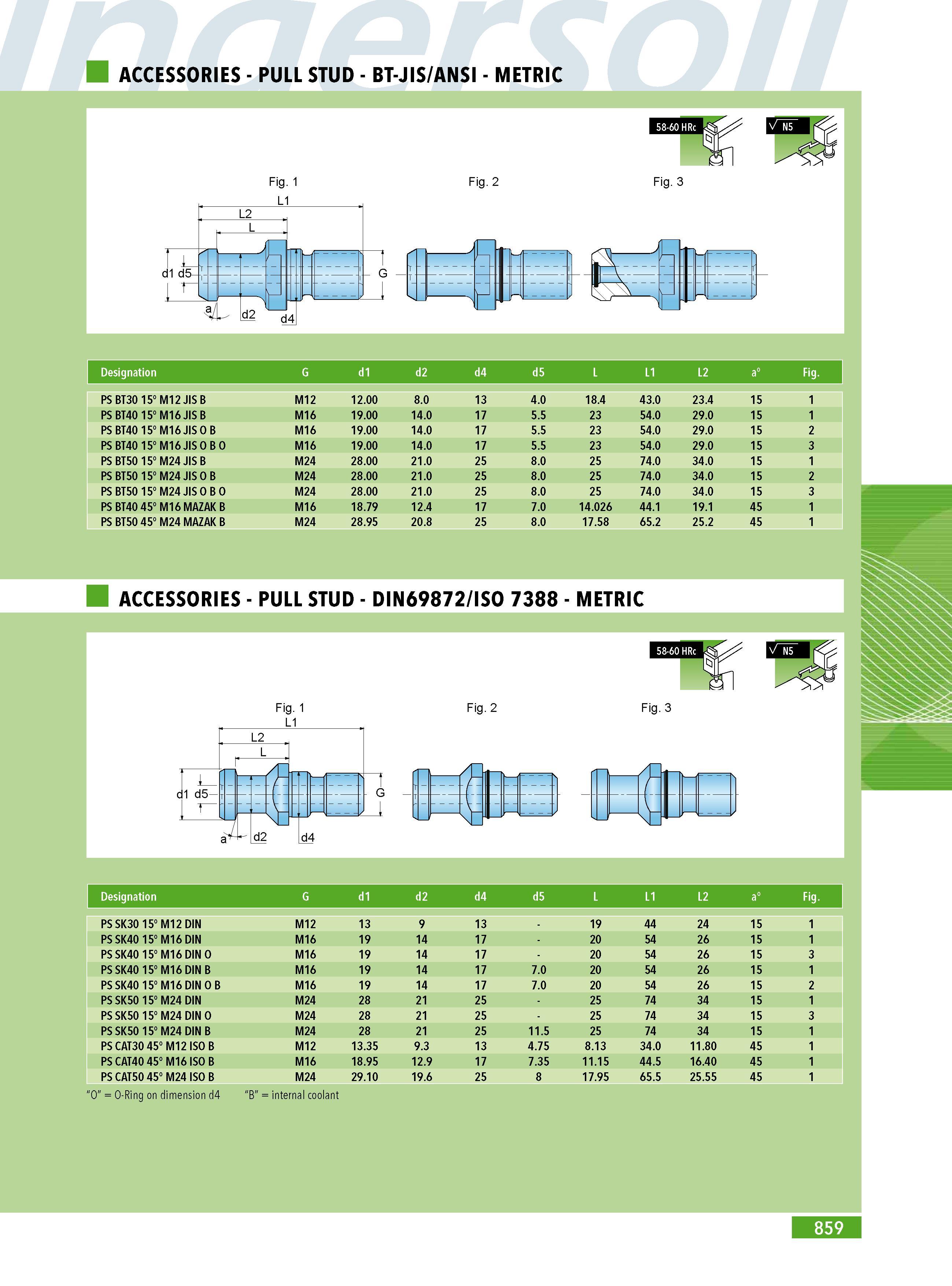

ACCESSORIES - PULL STUD - BT-JIS ANSI - METRIC Designation ACCESSORIES - PULL STUD - DIN69872 ISO 7388 - METRIC Fig. 1 Fig. 2 Fig. 3 PS BT30 15 M12 JIS B M12 12.00 8.0 13 4.0 18.4 43.0 23.4 15 1 PS BT40 15 M16 JIS B M16 19.00 14.0 17 5.5 23 54.0 29.0 15 1 PS BT40 15 M16 JIS O B M16 19.00 14.0 17 5.5 23 54.0 29.0 15 2 PS BT40 15 M16 JIS O B O M16 19.00 14.0 17 5.5 23 54.0 29.0 15 3 PS BT50 15 M24 JIS B M24 28.00 21.0 25 8.0 25 74.0 34.0 15 1 PS BT50 15 M24 JIS O B M24 28.00 21.0 25 8.0 25 74.0 34.0 15 2 PS BT50 15 M24 JIS O B O M24 28.00 21.0 25 8.0 25 74.0 34.0 15 3 PS BT40 45 M16 MAZAK B M16 18.79 12.4 17 7.0 14.026 44.1 19.1 45 1 PS BT50 45 M24 MAZAK B M24 28.95 20.8 25 8.0 17.58 65.2 25.2 45 1 Designation PS SK30 15 M12 DIN M12 13 9 13 19 44 24 15 1 PS SK40 15 M16 DIN M16 19 14 17 20 54 26 15 1 PS SK40 15 M16 DIN O M16 19 14 17 20 54 26 15 3 PS SK40 15 M16 DIN B M16 19 14 17 7.0 20 54 26 15 1 PS SK40 15 M16 DIN O B M16 19 14 17 7.0 20 54 26 15 2 PS SK50 15 M24 DIN M24 28 21 25 25 74 34 15 1 PS SK50 15 M24 DIN O M24 28 21 25 25 74 34 15 3 PS SK50 15 M24 DIN B M24 28 21 25 11.5 25 74 34 15 1 PS CAT30 45 M12 ISO B M12 13.35 9.3 13 4.75 8.13 34.0 11.80 45 1 PS CAT40 45 M16 ISO B M16 18.95 12.9 17 7.35 11.15 44.5 16.40 45 1 PS CAT50 45 M24 ISO B M24 29.10 19.6 25 8 17.95 65.5 25.55 45 1 d1 d2 d4 d5 G L L1 L2 Fig d1 d2 d4 d5 G L L1 L2 Fig 'O" O-Ring on dimension d4 B" internal coolant 859
