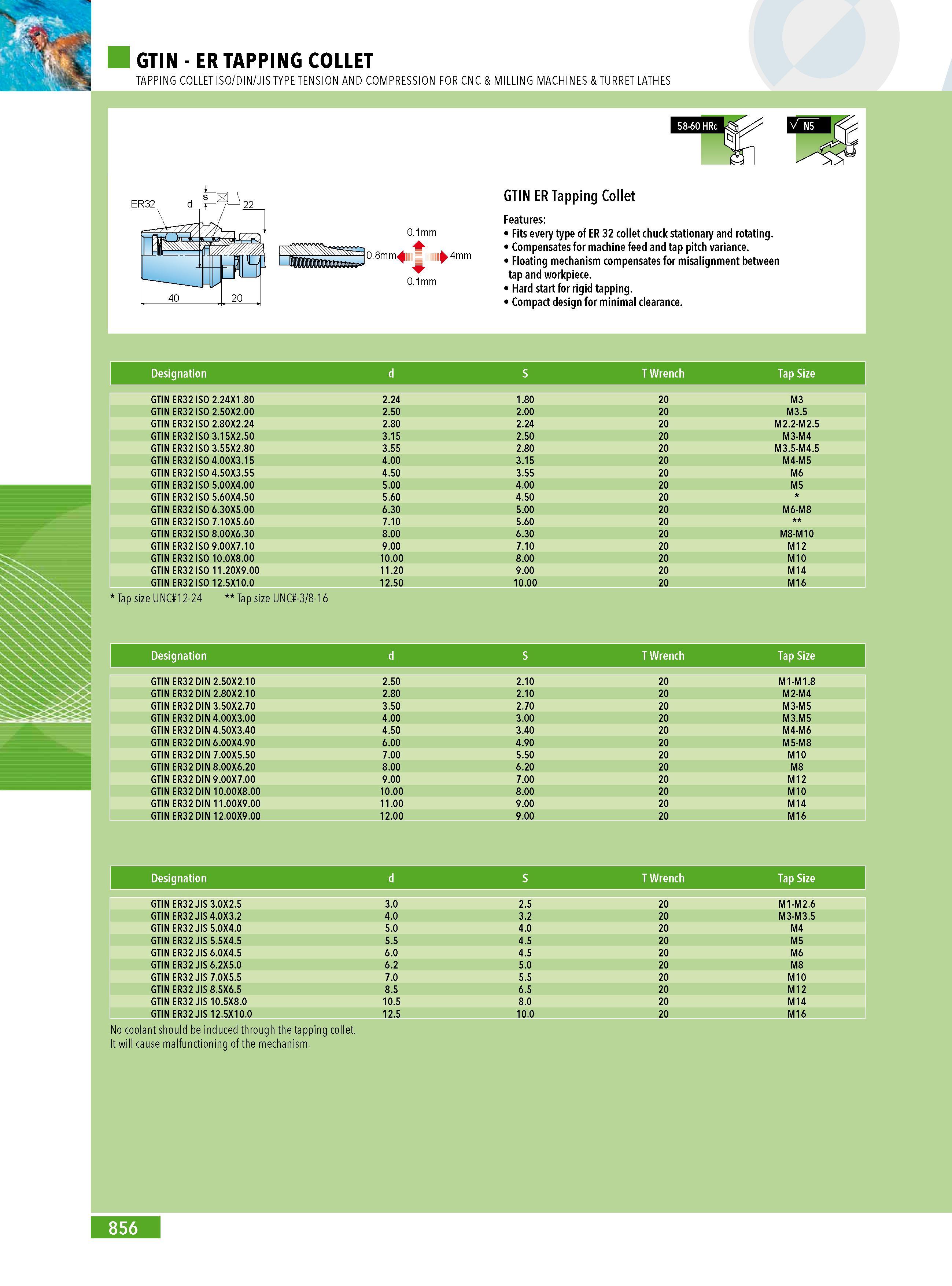

GTIN - ER TAPPING COLLET TAPPING COLLET ISO DIN JIS TYPE TENSION AND COMPRESSION FOR CNC & MILLING MACHINES & TURRET LATHES 0.1mm a j0.8mm 4mm 0.1mm GTIN ER Tapping Collet Features: Fits every type of ER 32 collet chuck stationary and rotating. Compensates for machine feed and tap pitch variance. Floating mechanism compensates for misalignment between tap and workpiece. Hard start for rigid tapping. Compact design for minimal clearance. Designation d S T Wrench Tap Size GTIN ER32 ISO 2.24X1.80 2.24 1.80 20 M3 GTIN ER32 ISO 2.50X2.00 2.50 2.00 20 M3.5 GTIN ER32 ISO 2.80X2.24 2.80 2.24 20 M2.2-M2.5 GTIN ER32 ISO 3.15X2.50 3.15 2.50 20 M3-M4 GTIN ER32 ISO 3.55X2.80 3.55 2.80 20 M3.5-M4.5 GTIN ER32 ISO 4.00X3.15 4.00 3.15 20 M4-M5 GTIN ER32 ISO 4.50X3.55 4.50 3.55 20 M6 GTIN ER32 ISO 5.00X4.00 5.00 4.00 20 M5 GTIN ER32 ISO 5.60X4.50 5.60 4.50 20 GTIN ER32 ISO 6.30X5.00 6.30 5.00 20 M6-M8 GTIN ER32 ISO 7.10X5.60 7.10 5.60 20 GTIN ER32 ISO 8.00X6.30 8.00 6.30 20 M8-M10 GTIN ER32 ISO 9.00X7.10 9.00 7.10 20 M12 GTIN ER32 ISO 10.0X8.00 10.00 8.00 20 M10 GTIN ER32 ISO 11.20X9.00 11.20 9.00 20 M14 GTIN ER32 ISO 12.5X10.0 12.50 10.00 20 M16 k Tap size UNC 12-24 Tap size UNC -3 8-16 Designation GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 GTIN ER32 DIN 2.50X2.10 DIN 2.80X2.10 DIN 3.50X2.70 DIN 4.00X3.00 DIN 4.50X3.40 DIN 6.00X4.90 DIN 7.00X5.50 DIN 8.00X6.20 DIN 9.00X7.00 DIN 10.00X8.00 DIN 11.00X9.00 DIN 12.00X9.00 2.50 2.80 3.50 4.00 4.50 6.00 7.00 8.00 9.00 10.00 11.00 12.00 2.10 2.10 2.70 3.00 3.40 4.90 5.50 6.20 7.00 8.00 9.00 9.00 T Wrench 20 20 20 20 20 20 20 20 20 20 20 20 Tap Size M1-M1.8 M2-M4 M3-M5 M3.M5 M4-M6 M5-M8 M10 M8 M12 M10 M14 M16 S Designation d S T Wrench Tap Size GTIN ER32 JIS 3.0X2.5 3.0 2.5 20 M1-M2.6 GTIN ER32 JIS 4.0X3.2 4.0 3.2 20 M3-M3.5 GTIN ER32 JIS 5.0X4.0 5.0 4.0 20 M4 GTIN ER32 JIS 5.5X4.5 5.5 4.5 20 M5 GTIN ER32 JIS 6.0X4.5 6.0 4.5 20 M6 GTIN ER32 JIS 6.2X5.0 6.2 5.0 20 M8 GTIN ER32 JIS 7.0X5.5 7.0 5.5 20 M10 GTIN ER32 JIS 8.5X6.5 8.5 6.5 20 M12 GTIN ER32 JIS 10.5X8.0 10.5 8.0 20 M14 GTIN ER32 JIS 12.5X10.0 12.5 10.0 20 M16 No coolant should be induced through the tapping collet. It will cause malfunctioning of the mechanism. 856
