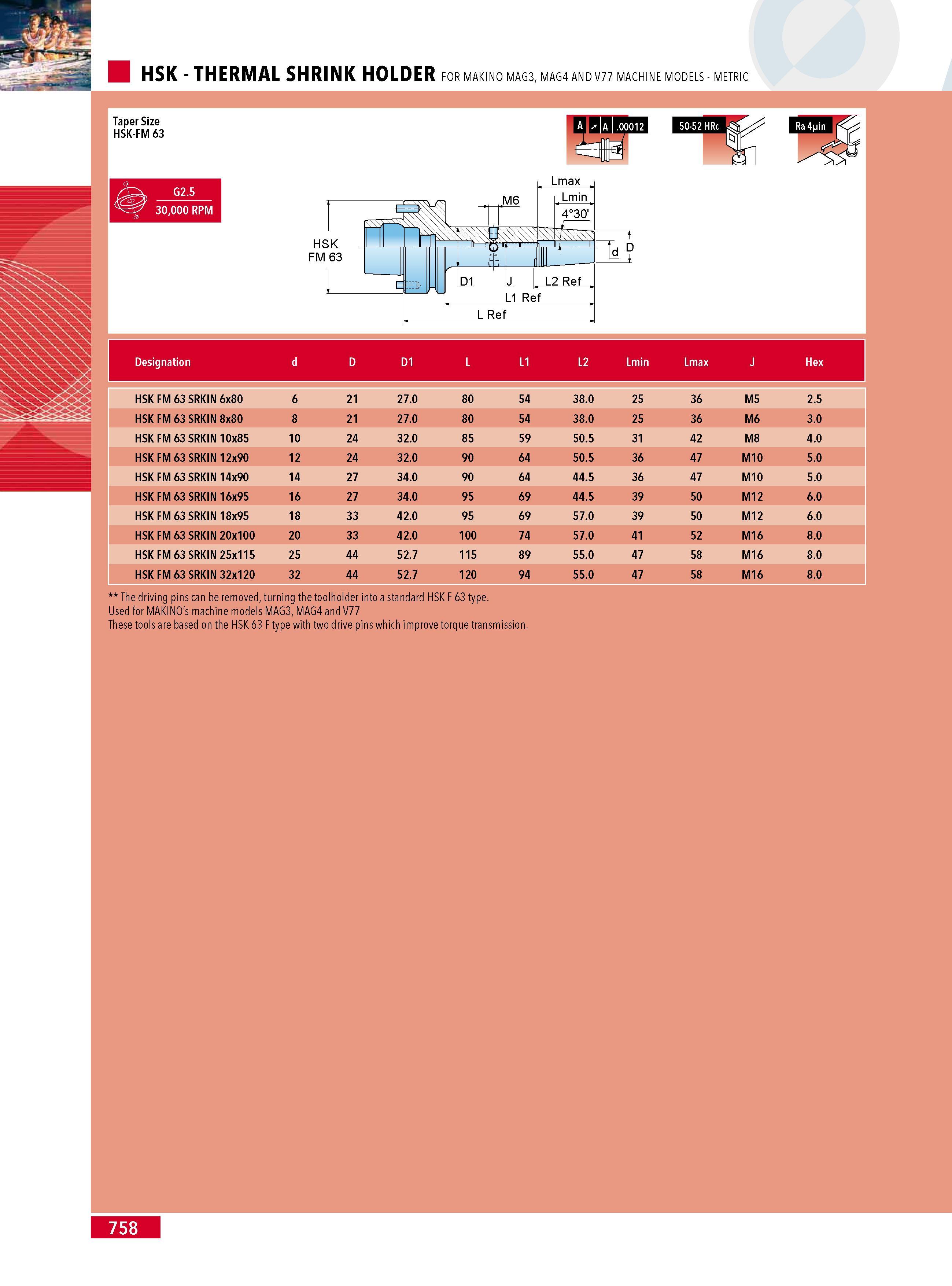

HSK - THERMAL SHRINK HOLDER FOR MAKINO MAG3 MAG4 AND V77 MACHINE MODELS - METRIC Taper Size HSK-FM 63 30000 RPM Designation HSK FM HSK FM HSK FM HSK FM HSK FM HSK FM HSK FM HSK FM HSK FM HSK FM 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN 63 SRKIN HSK FM 63 6x80 8x80 10x85 12x90 14x90 16x95 18x95 20x100 25x115 32x120 6 8 10 12 14 16 18 20 25 32 21 21 24 24 27 27 33 33 44 44 27.0 27.0 32.0 32.0 34.0 34.0 42.0 42.0 52.7 52.7 80 80 85 90 90 95 95 100 115 120 54 54 59 64 64 69 69 74 89 94 38.0 38.0 50.5 50.5 44.5 44.5 57.0 57.0 55.0 55.0 25 25 31 36 36 39 39 41 47 47 36 36 42 47 47 50 50 52 58 58 M5 M6 M8 M10 M10 M12 M12 M16 M16 M16 2.5 3.0 4.0 5.0 5.0 6.0 6.0 8.0 8.0 8.0 The driving pins can be removed turning the toolholder into a standard HSK F 63 type. Used for MAKiNo's machine models MAG3 MAG4 and V77 These tools are based on the HSK 63 F type with two drive pins which improve torque transmission. 758
