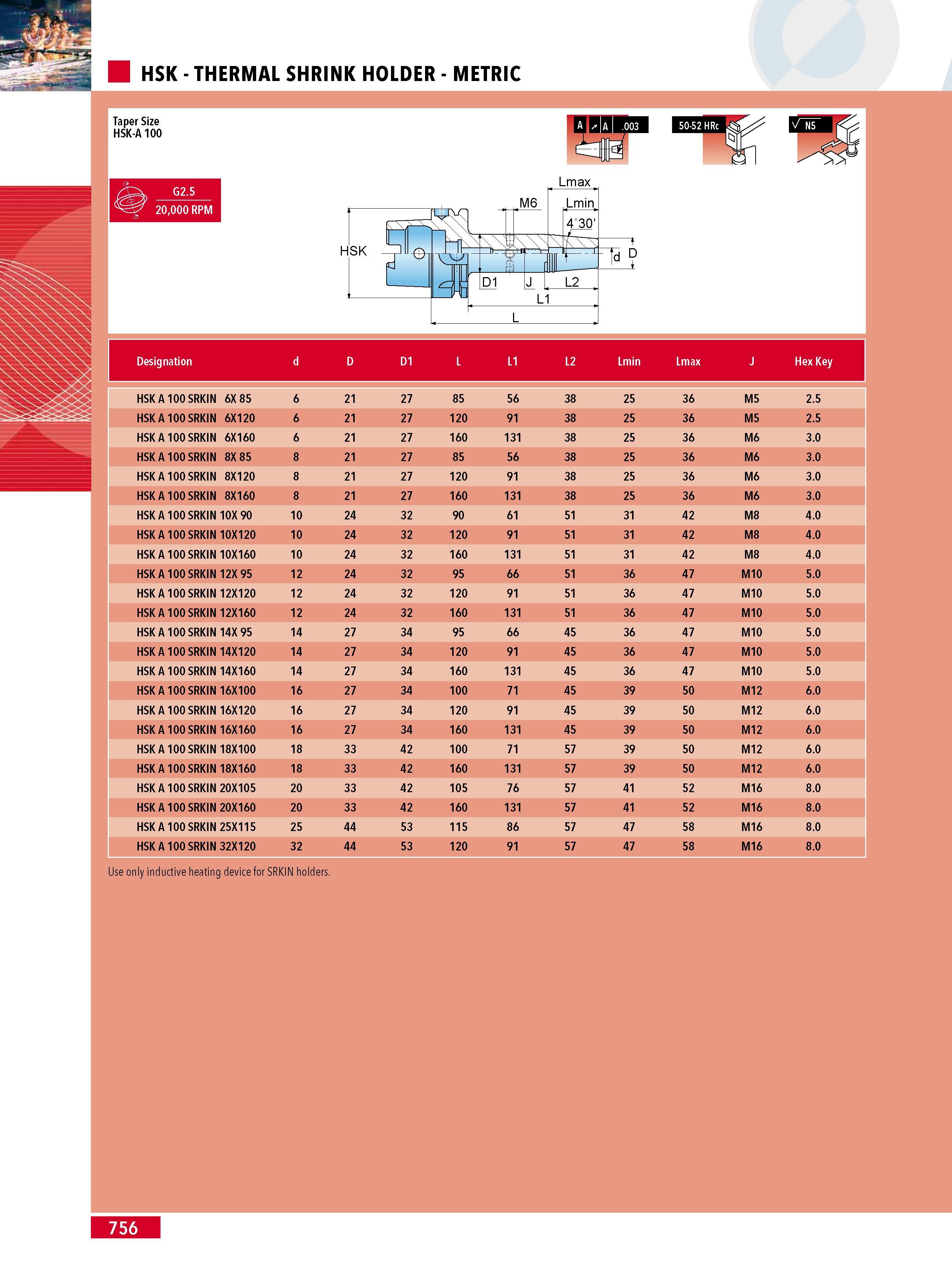

HSK - THERMAL SHRINK HOLDER - METRIC Taper Size HSK-A 100 G2.5 20000 RPM Lmax Designation d D D1 L L1 L2 Lmin Lmax J Hex Key HSK A 100 SRKIN 6X 85 6 21 27 85 56 38 25 36 M5 2.5 HSK A 100 SRKIN 6X120 6 21 27 120 91 38 25 36 M5 2.5 HSK A 100 SRKIN 6X160 6 21 27 160 131 38 25 36 M6 3.0 HSK A 100 SRKIN 8X 85 8 21 27 85 56 38 25 36 M6 3.0 HSK A 100 SRKIN 8X120 8 21 27 120 91 38 25 36 M6 3.0 HSK A 100 SRKIN 8X160 8 21 27 160 131 38 25 36 M6 3.0 HSK A 100 SRKIN 10X 90 10 24 32 90 61 51 31 42 M8 4.0 HSK A 100 SRKIN 10X120 10 24 32 120 91 51 31 42 M8 4.0 HSK A 100 SRKIN 10X160 10 24 32 160 131 51 31 42 M8 4.0 HSK A 100 SRKIN 12X 95 12 24 32 95 66 51 36 47 M10 5.0 HSK A 100 SRKIN 12X120 12 24 32 120 91 51 36 47 M10 5.0 HSK A 100 SRKIN 12X160 12 24 32 160 131 51 36 47 M10 5.0 HSK A 100 SRKIN 14X 95 14 27 34 95 66 45 36 47 M10 5.0 HSK A 100 SRKIN 14X120 14 27 34 120 91 45 36 47 M10 5.0 HSK A 100 SRKIN 14X160 14 27 34 160 131 45 36 47 M10 5.0 HSK A 100 SRKIN 16X100 16 27 34 100 71 45 39 50 M12 6.0 HSK A 100 SRKIN 16X120 16 27 34 120 91 45 39 50 M12 6.0 HSK A 100 SRKIN 16X160 16 27 34 160 131 45 39 50 M12 6.0 HSK A 100 SRKIN 18X100 18 33 42 100 71 57 39 50 M12 6.0 HSK A 100 SRKIN 18X160 18 33 42 160 131 57 39 50 M12 6.0 HSK A 100 SRKIN 20X105 20 33 42 105 76 57 41 52 M16 8.0 HSK A 100 SRKIN 20X160 20 33 42 160 131 57 41 52 M16 8.0 HSK A 100 SRKIN 25X115 25 44 53 115 86 57 47 58 M16 8.0 HSK A 100 SRKIN 32X120 32 44 53 120 91 57 47 58 M16 8.0 Use only inductive heating device for SRKIN holders. 756
