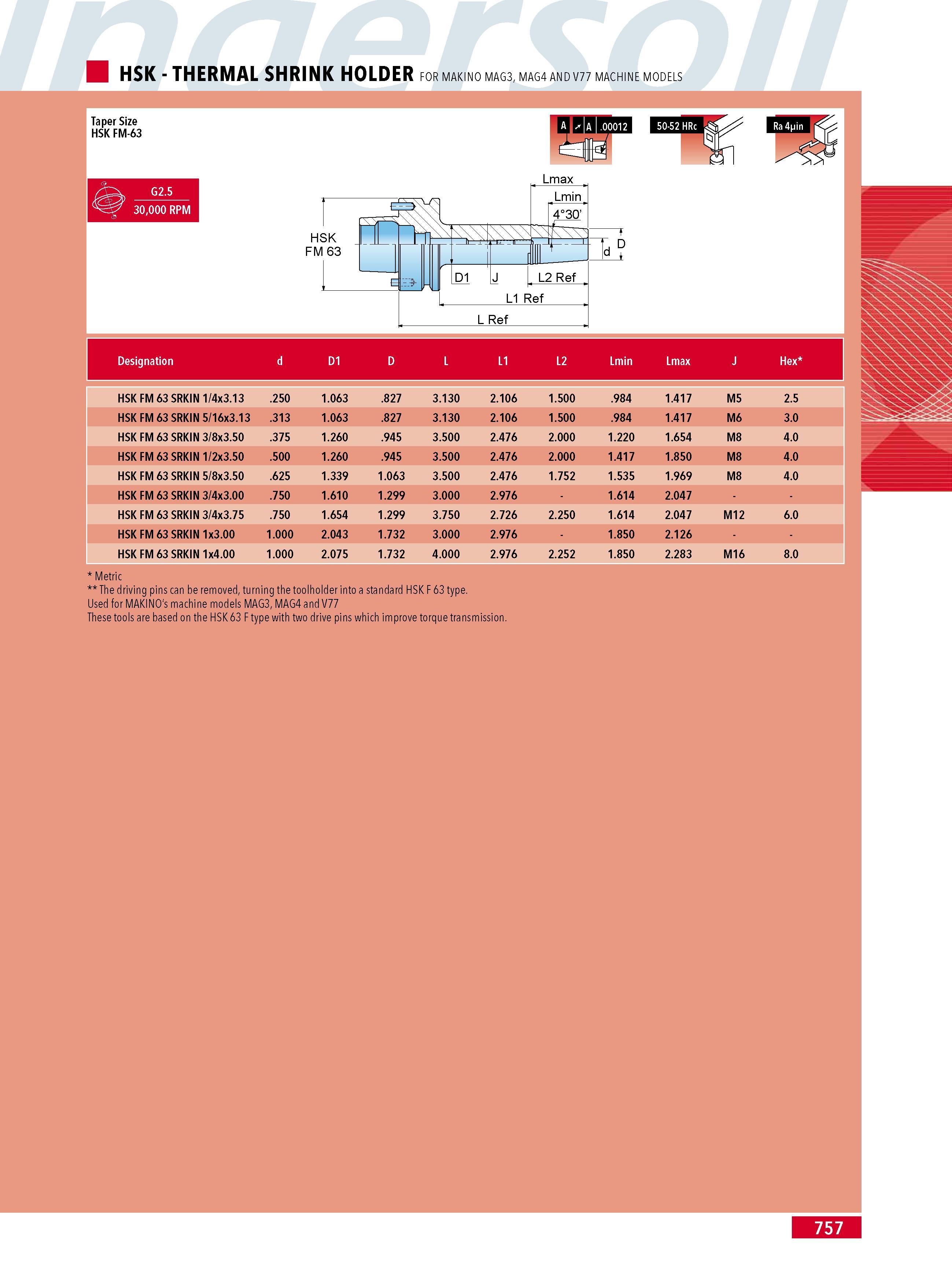

HSK - THERMAL SHRINK HOLDER FOR MAKINO MAG3 MAG4 AND V77 MACHINE MODELS Taper Size HSK FM-63 G2.5 30000 RPM Lmax Designation HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 HSK FM 63 SRKIN 1 4x3.13 SRKIN 5 16x3.13 SRKIN 3 8x3.50 SRKIN 1 2x3.50 SRKIN 5 8x3.50 SRKIN 3 4x3.00 SRKIN 3 4x3.75 SRKIN 1x3.00 SRKIN 1x4.00 .250 .313 .375 .500 .625 .750 .750 1.000 1.000 1.063 1.063 1.260 1.260 1.339 1.610 1.654 2.043 2.075 .827 .827 .945 .945 1.063 1.299 1.299 1.732 1.732 3.130 3.130 3.500 3.500 3.500 3.000 3.750 3.000 4.000 2.106 2.106 2.476 2.476 2.476 2.976 2.726 2.976 2.976 1.500 1.500 2.000 2.000 1.752 2.250 2.252 .984 .984 1.220 1.417 1.535 1.614 1.614 1.850 1.850 1.417 1.417 1.654 1.850 1.969 2.047 2.047 2.126 2.283 M5 M6 M8 M8 M8 M12 M16 2.5 3.0 4.0 4.0 4.0 6.0 8.0 Metric The driving pins can be removed turning the toolholder into a standard HSK F 63 type. Used for MAKiNo's machine models MAG3 MAG4 and V77 These tools are based on the HSK 63 F type with two drive pins which improve torque transmission. 757
