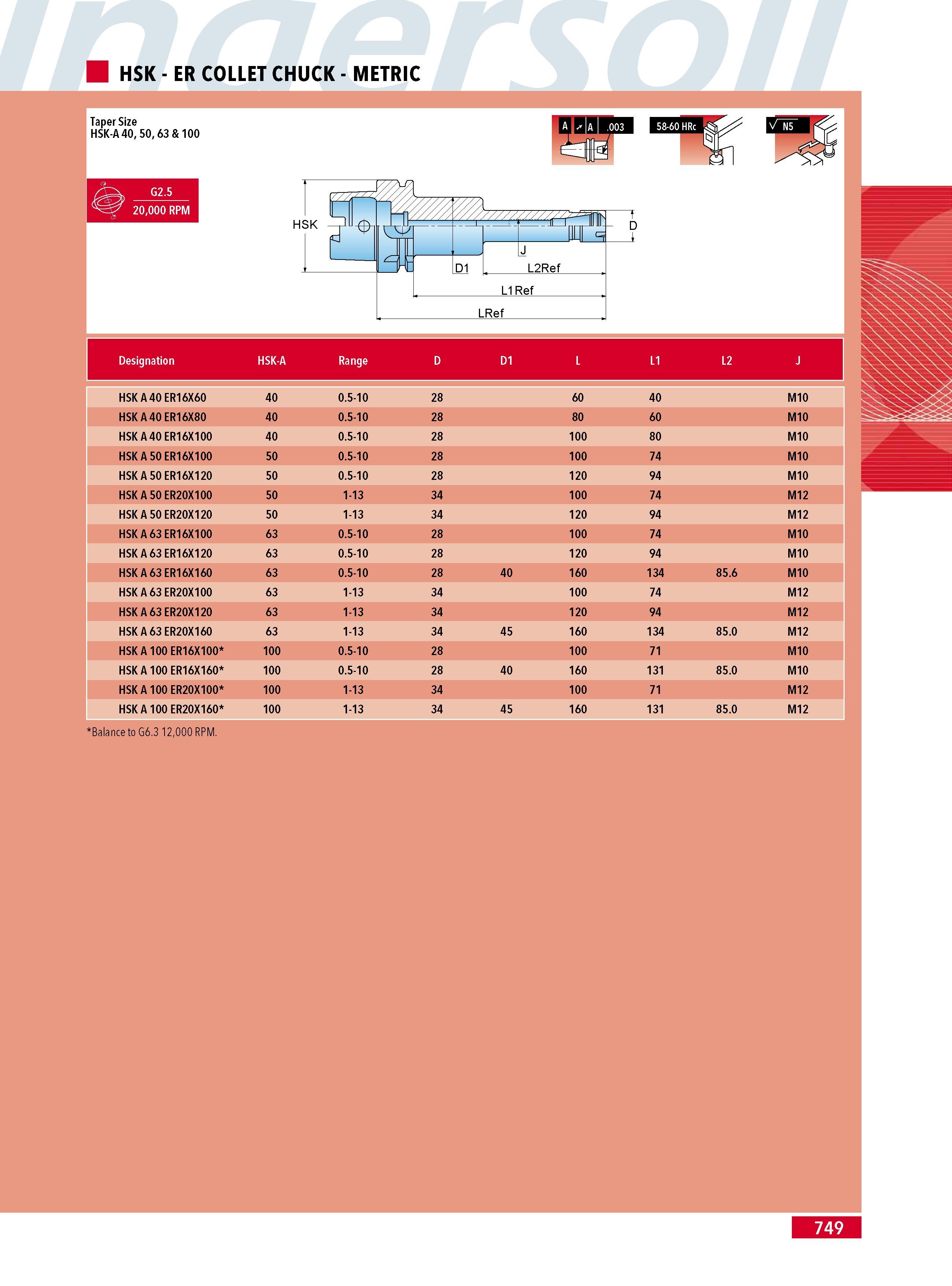

HSK - ER COLLET CHUCK - METRIC Taper Size HSK-A 40 50 63 & 100 G2.5 20000 RPM Designation HSK-A Range D D1 L L1 L2 J HSKA 40ER16X60 40 0.5-10 28 60 40 M10 HSKA 40ER16X80 40 0.5-10 28 80 60 M10 HSKA 40ER16X100 40 0.5-10 28 100 80 M10 HSKA 50ER16X100 50 0.5-10 28 100 74 M10 HSKA 50ER16X120 50 0.5-10 28 120 94 M10 HSK A 50 ER20X100 50 1-13 34 100 74 M12 HSKA 50ER20X120 50 1-13 34 120 94 M12 HSKA 63ER16X100 63 0.5-10 28 100 74 M10 HSKA 63ER16X120 63 0.5-10 28 120 94 M10 HSKA 63ER16X160 63 0.5-10 28 40 160 134 85.6 M10 HSKA 63ER20X100 63 1-13 34 100 74 M12 HSKA 63ER20X120 63 1-13 34 120 94 M12 HSKA 63ER20X160 63 1-13 34 45 160 134 85.0 M12 HSKA 100ER16X100 100 0.5-10 28 100 71 M10 HSKA 100ER16X160 100 0.5-10 28 40 160 131 85.0 M10 HSKA 100ER20X100 100 1-13 34 100 71 M12 HSKA 100ER20X160 100 1-13 34 45 160 131 85.0 M12 Balance to G6.3 12000 RPM. 749
