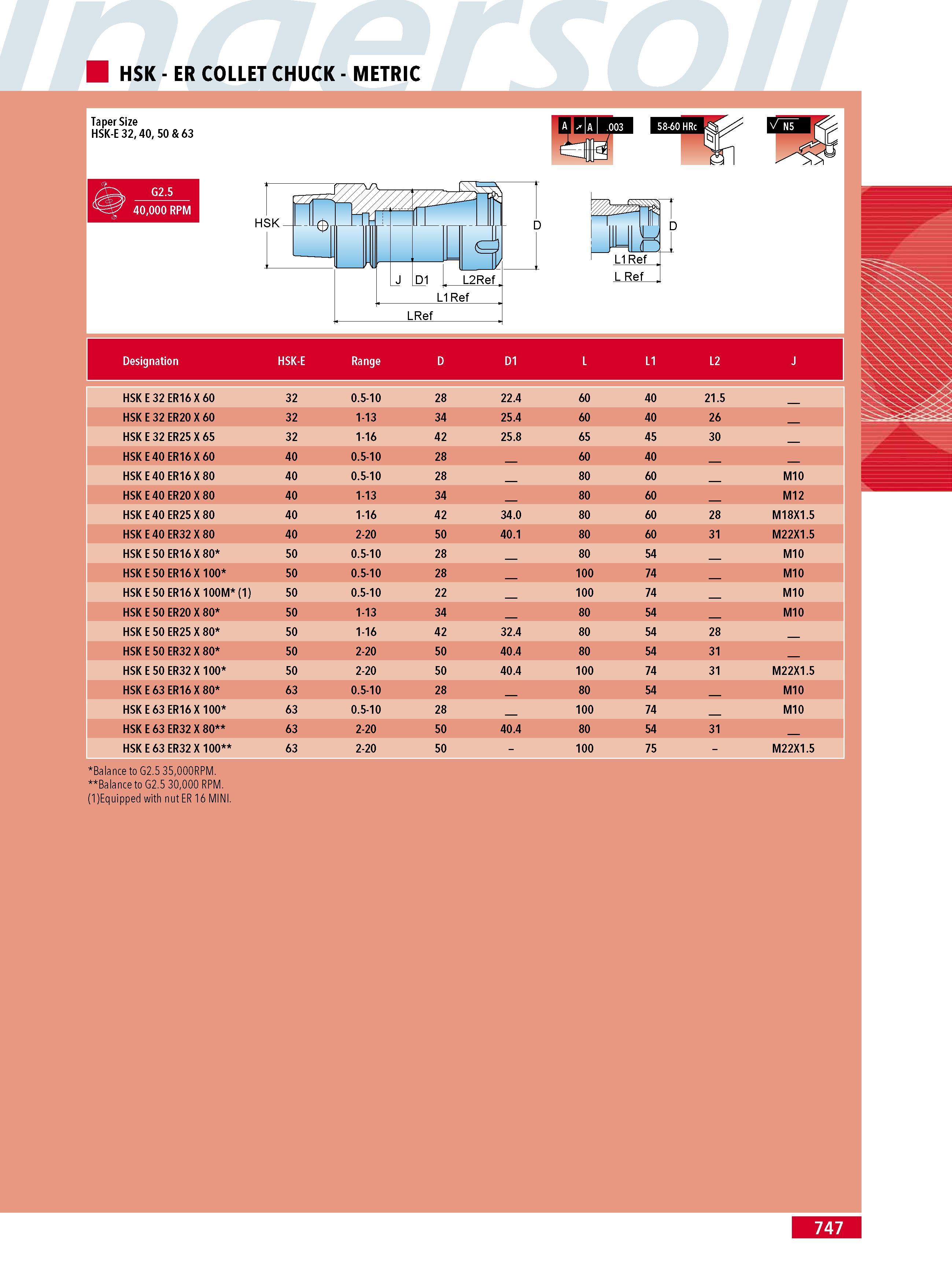

HSK - ER COLLET CHUCK - METRIC Taper Size HSK-E 32 40 50 & 63 G2.5 40000 RPM Designation HSK-E Range D D1 L L1 L2 J HSK E 32 ER16 X 60 32 0.5-10 28 22.4 60 40 21.5 HSK E 32 ER20 X 60 32 1-13 34 25.4 60 40 26 HSK E 32 ER25 X 65 32 1-16 42 25.8 65 45 30 HSK E 40 ER16 X 60 40 0.5-10 28 60 40 HSK E 40 ER16 X 80 40 0.5-10 28 80 60 M10 HSK E 40 ER20 X 80 40 1-13 34 80 60 M12 HSK E 40 ER25 X 80 40 1-16 42 34.0 80 60 28 M18X1.5 HSK E 40 ER32 X 80 40 2-20 50 40.1 80 60 31 M22X1.5 HSK E 50 ER16 X 80 50 0.5-10 28 80 54 M10 HSK E 50 ER16 X 100 50 0.5-10 28 100 74 M10 HSK E 50 ER16 X 100M (1) 50 0.5-10 22 100 74 M10 HSK E 50 ER20 X 80 50 1-13 34 80 54 M10 HSK E 50 ER25 X 80 50 1-16 42 32.4 80 54 28 HSK E 50 ER32 X 80 50 2-20 50 40.4 80 54 31 HSK E 50 ER32 X 100 50 2-20 50 40.4 100 74 31 M22X1.5 HSK E 63 ER16 X 80 63 0.5-10 28 80 54 M10 HSK E 63 ER16 X 100 63 0.5-10 28 100 74 M10 HSK E 63 ER32 X 80 63 2-20 50 40.4 80 54 31 HSK E 63 ER32 X 100 63 2-20 50 - 100 75 - M22X1.5 Balance to G2.5 35000RPM. Balance to G2.5 30000 RPM. (1)Equipped with nut ER 16 MINI. 747
