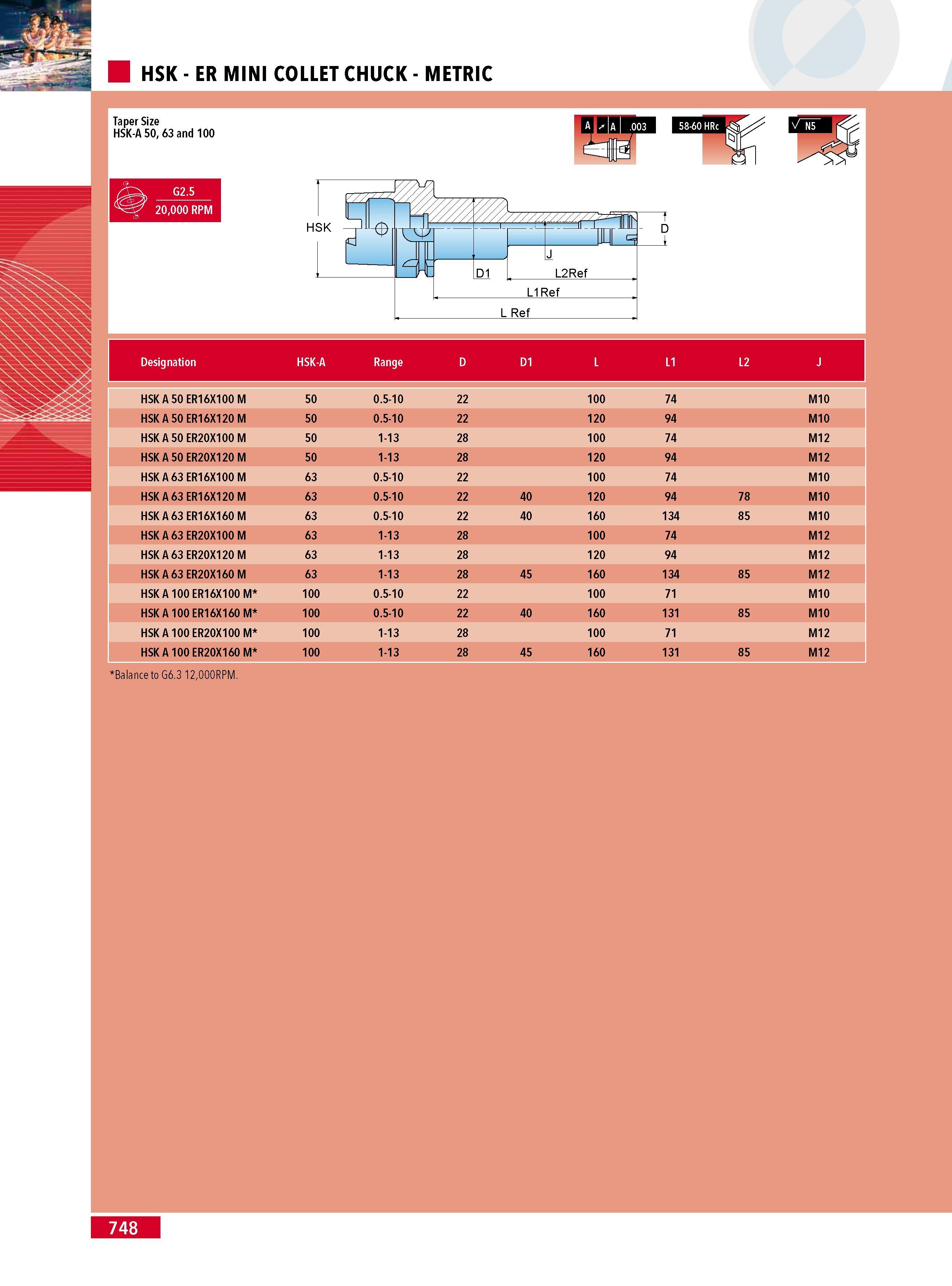

HSK - ER MINI COLLET CHUCK - METRIC Taper Size HSK-A 50 63 and 100 G2.5 20000 RPM Designation HSK-A Range D D1 L L1 L2 HSKA 50ER16X100M 50 0.5-10 22 100 74 M10 HSKA 50ER16X120M 50 0.5-10 22 120 94 M10 HSKA 50ER20X100M 50 1-13 28 100 74 M12 HSKA 50ER20X120M 50 1-13 28 120 94 M12 HSKA 63ER16X100M 63 0.5-10 22 100 74 M10 HSKA 63ER16X120M 63 0.5-10 22 40 120 94 78 M10 HSKA 63ER16X160M 63 0.5-10 22 40 160 134 85 M10 HSKA 63ER20X100M 63 1-13 28 100 74 M12 HSKA 63ER20X120M 63 1-13 28 120 94 M12 HSKA 63ER20X160M 63 1-13 28 45 160 134 85 M12 HSKA 100ER16X100M 100 0.5-10 22 100 71 M10 HSKA 100ER16X160M 100 0.5-10 22 40 160 131 85 M10 HSKA 100ER20X100M 100 1-13 28 100 71 M12 HSKA 100ER20X160M 100 1-13 28 45 160 131 85 M12 Balance to G6.3 12000RPM. 748
