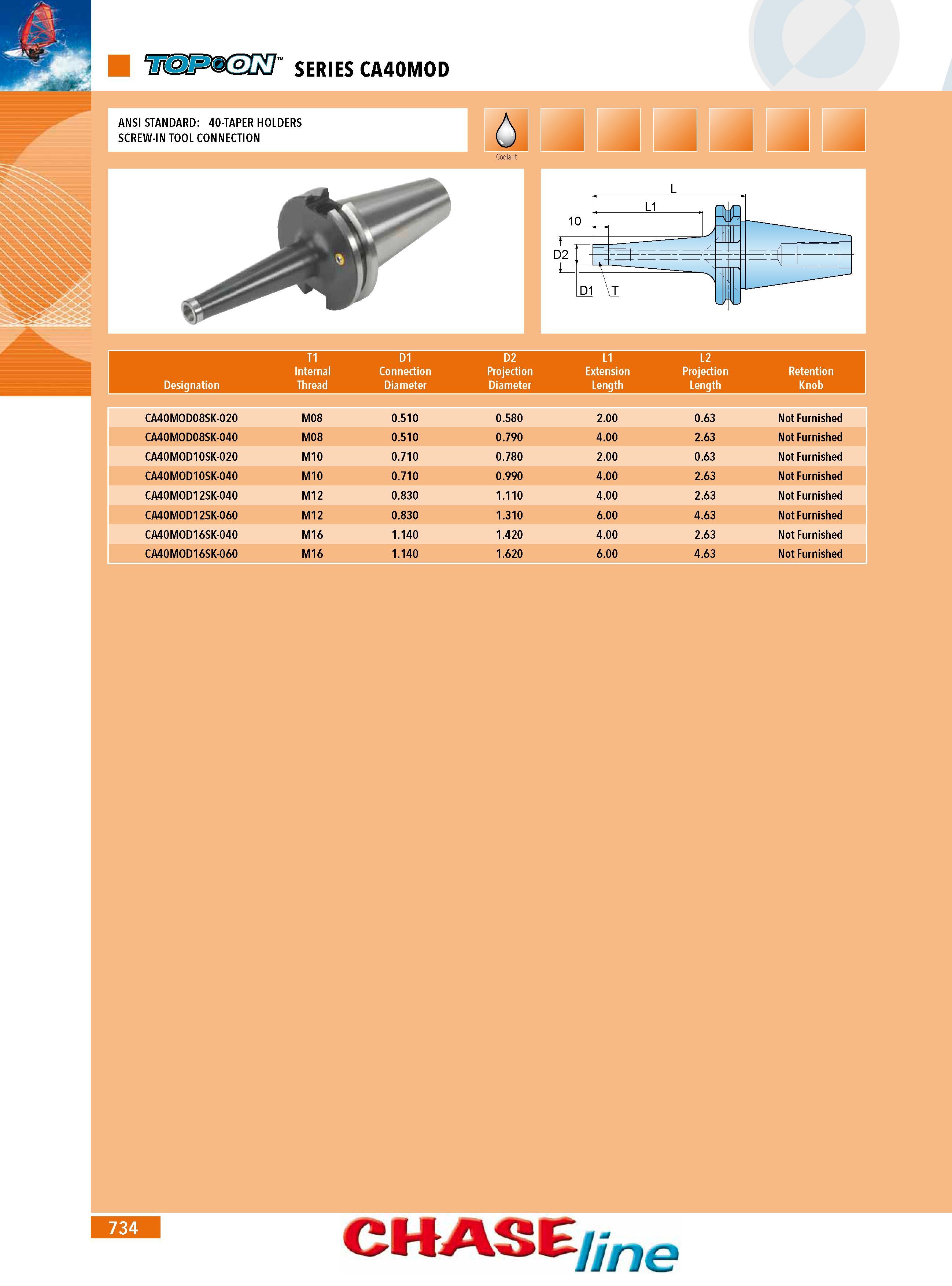

XDN SERIES CA40MOD ANSI STANDARD: 40-TAPER HOLDERS SCREW-IN TOOL CONNECTION Designation T1 Internal Thread D1 Connection Diameter D2 Projection Diameter L1 Extension Length L2 Projection Length Retention Knob CA40MOD08SK-020 M08 0.510 0.580 2.00 0.63 Not Furnished CA40MOD08SK-040 M08 0.510 0.790 4.00 2.63 Not Furnished CA40MOD10SK-020 M10 0.710 0.780 2.00 0.63 Not Furnished CA40MOD10SK-040 M10 0.710 0.990 4.00 2.63 Not Furnished CA40MOD12SK-040 M12 0.830 1.110 4.00 2.63 Not Furnished CA40MOD12SK-060 M12 0.830 1.310 6.00 4.63 Not Furnished CA40MOD16SK-040 M16 1.140 1.420 4.00 2.63 Not Furnished CA40MOD16SK-060 M16 1.140 1.620 6.00 4.63 Not Furnished 734 CHASE ne
