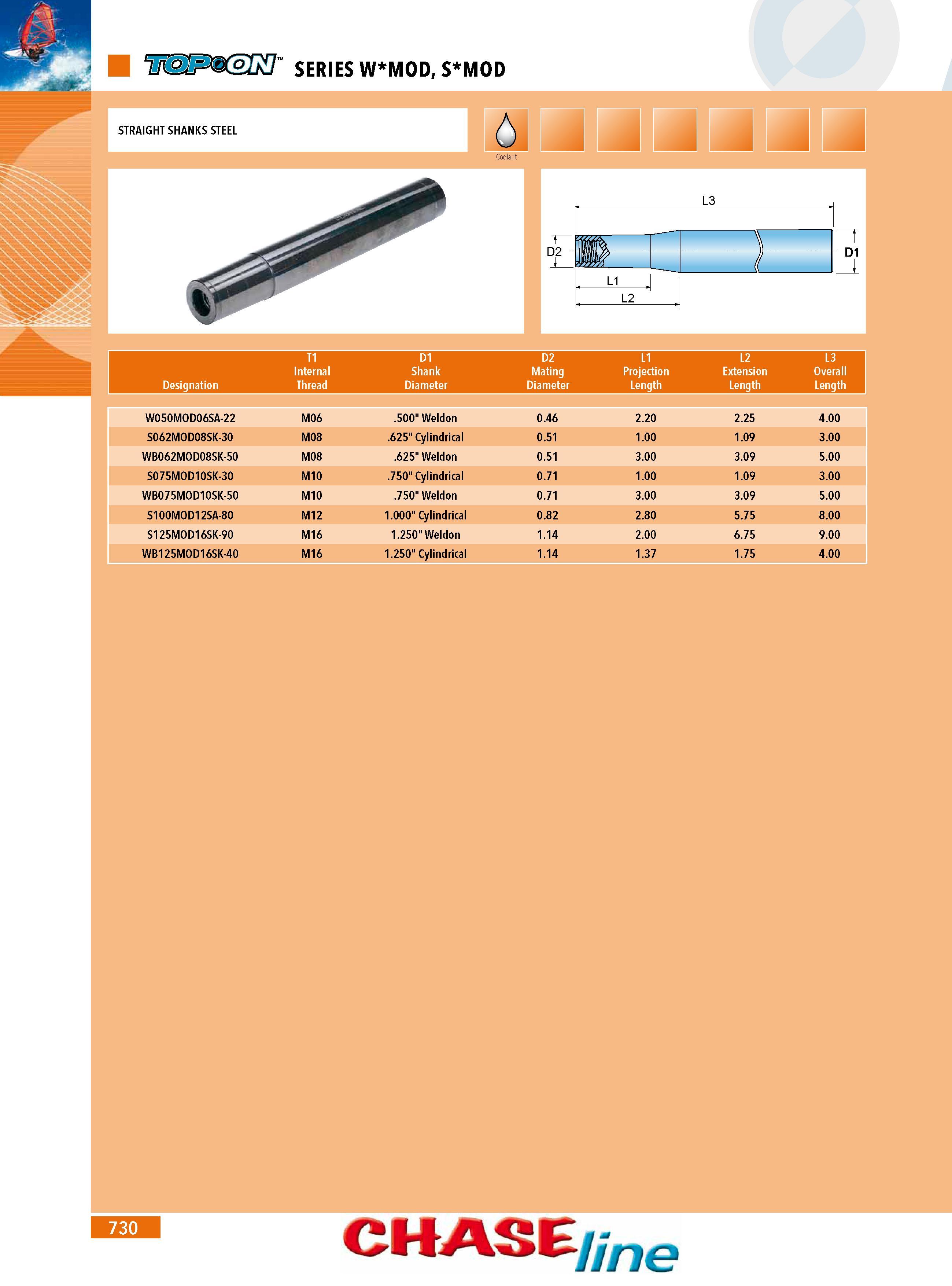

728 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.730

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 730 0728 Lab2u

mOR XDN SERIES W MOD S MOD A L3 L1 L2 D1 Designation T1 Internal Thread D1 Shank Diameter D2 Mating Diameter L1 Projection Length L2 Extension Length L3 Overall Length W050MOD06SA-22 M06 .500" Weldon 0.46 2.20 2.25 4.00 S062MOD08SK-30 M08 .625" Cylindrical 0.51 1.00 1.09 3.00 WB062MOD08SK-50 M08 .625" Weldon 0.51 3.00 3.09 5.00 S075MOD10SK-30 M10 .750" Cylindrical 0.71 1.00 1.09 3.00 WB075MOD10SK-50 M10 .750" Weldon 0.71 3.00 3.09 5.00 S100MOD12SA-80 M12 1.000" Cylindrical 0.82 2.80 5.75 8.00 S125MOD16SK-90 M16 1.250" Weldon 1.14 2.00 6.75 9.00 WB125MOD16SK-40 M16 1.250" Cylindrical 1.14 1.37 1.75 4.00 730 CHASE ne
