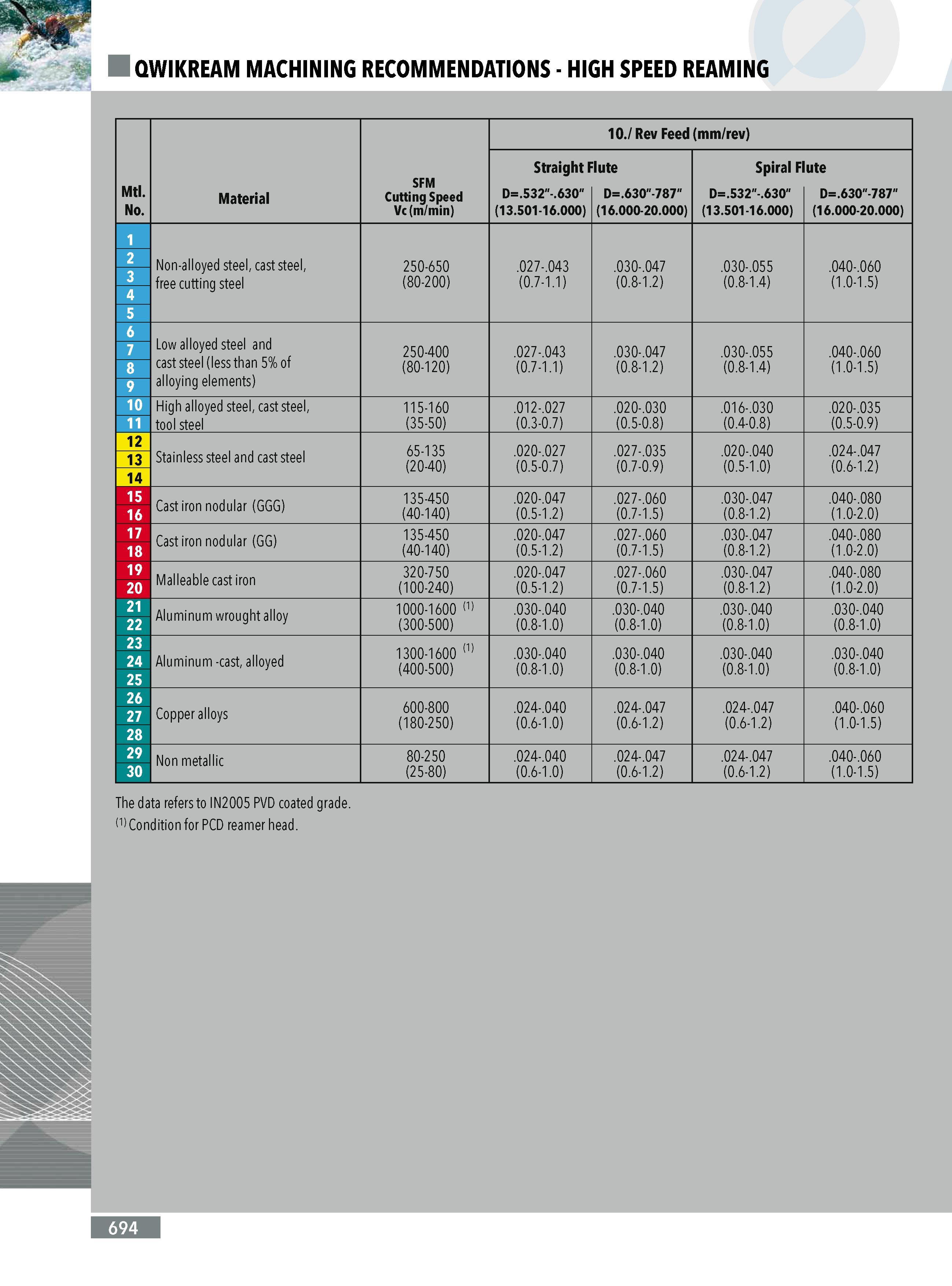

QWIKREAM MACHINING RECOMMENDATIONS - HIGH SPEED REAMING Mtl. No. Material SFM Cutting Speed Vc (m min) 10. Rev Feed (mm rev) Straight F D.532"-.630" (13.501-16.000) lute D.630"-787" (16.000-20.000) Spiral Fl D.532"-.630" (13.501-16.000) ute D.630"-787" (16.000-20.000) 1 Non-alloyed steel cast steel free cutting steel 250-650 (80-200) .027-.043 (0.7-1.1) .030-.047 (0.8-1.2) .030-.055 (0.8-1.4) .040-.060 (1.0-1.5) 4 5 6 7 Low alloyed steel and cast steel (less than 5% of alloying elements) 250-400 (80-120) .027-.043 (0.7-1.1) .030-.047 (0.8-1.2) .030-.055 (0.8-1.4) .040-.060 (1.0-1.5) 8 9 10 High alloyed steel cast steel tool steel 115-160 (35-50) .012-.027 (0.3-0.7) (0..02 -0.. 0 OO CO O .016-.030 (0.4-0.8) .020-.035 (0.5-0.9) 11 12 13 14 Stainless steel and cast steel 65-135 (20-40) 7) 27 cb LH Ss .027-.035 (0.7-0.9) .020-.040 (0.5-1.0) .024-.047 (0.6-1.2) H Cast iron nodular (GGG) 135-450 (40-140) .020-.047 (0.5-1.2) .027-.060 (0.7-1.5) .030-.047 (0.8-1.2) .040-.080 (1.0-2.0) 17 18 Cast iron nodular (GG) 135-450 (40-140) .020-.047 (0.5-1.2) .027-.060 (0.7-1.5) .030-.047 (0.8-1.2) .040-.080 (1.0-2.0) 19 20 Malleable cast iron 320-750 (100-240) .020-.047 (0.5-1.2) .027-.060 (0.7-1.5) .030-.047 (0.8-1.2) .040-.080 (1.0-2.0) 21 22 Aluminum wrought alloy 1000-1600 (1) (300-500) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) 23 24 25 Aluminum -cast alloyed 1300-1600 (1) (400-500) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) .030-.040 (0.8-1.0) 26 27 28 Copper alloys 600-800 (180-250) .024-.040 (0.6-1.0) .024-.047 (0.6-1.2) .024-.047 (0.6-1.2) .040-.060 (1.0-1.5) 29 30 Non metallic 80-250 (25-80) .024-.040 (0.6-1.0) .024-.047 (0.6-1.2) .024-.047 (0.6-1.2) .040-.060 (1.0-1.5) The data refers to IN2005 PVD coated grade. (1) Condition for PCD reamer head. 694
