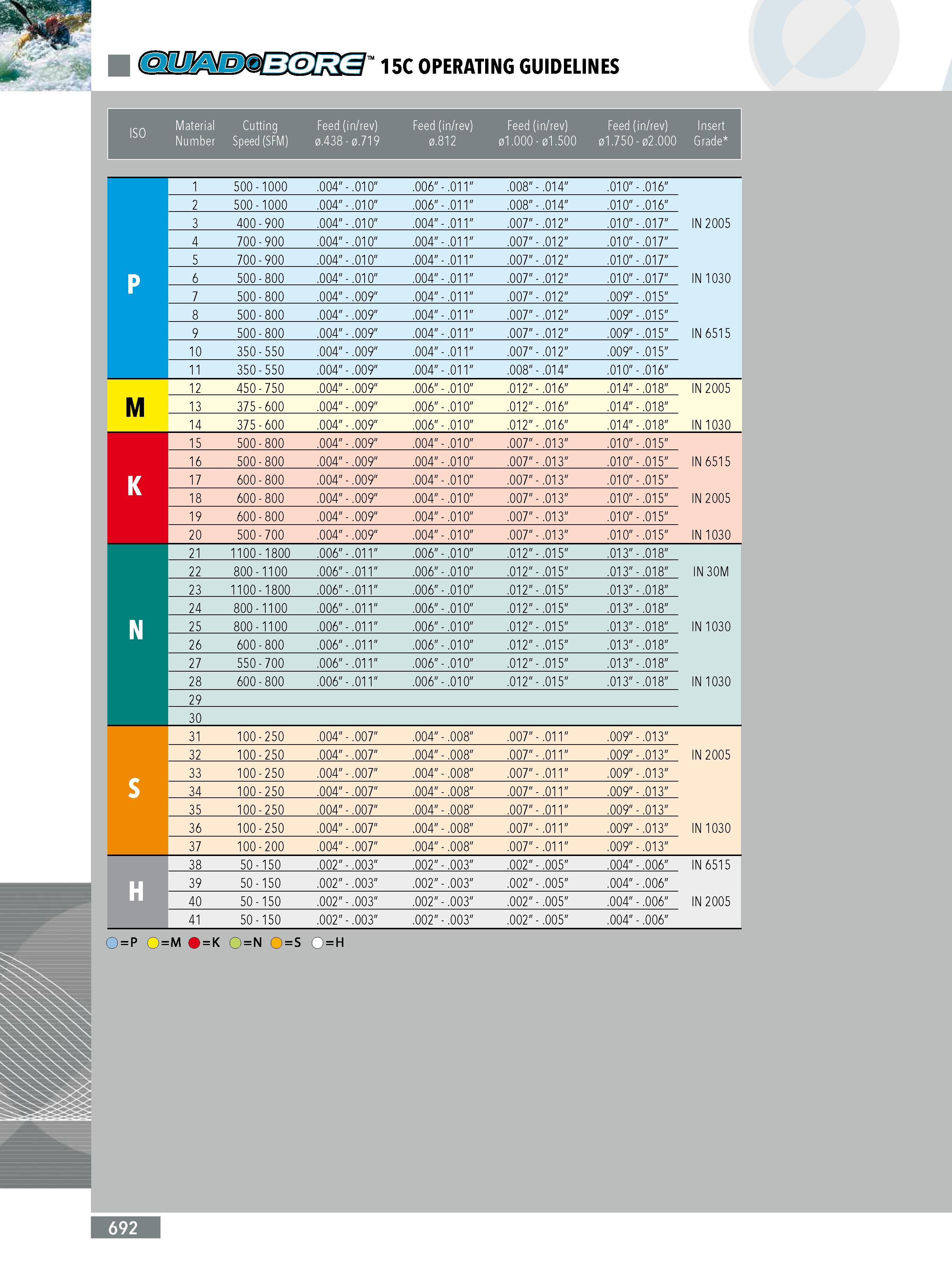

690 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.692

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 692 0690 Lab2u

15C OPERATING GUIDELINES ISO Material Number Cutting Speed (SFM) Feed (in rev) 0.438 - 0.719 Feed (in rev) 0.812 Feed (in rev) 01.000 - 01.500 Feed (in rev) 01.750 - 02.000 Insert Grade 1 500 - 1000 .004 - .010 .006' - .011 .008 - .014 .010 - .016 2 500 - 1000 .004 - .010 .006' - .011 .008 - .014 .010 - .016 3 400 - 900 .004 - .010 .004 - .011 .007 - .012 .010 - .017 IN 2005 4 700 - 900 .004 - .010 .004 - .011 .007 - .012 .010 - .017 5 700 - 900 .004 - .010 .004 - .011 .007 - .012 .010 - .017 P 6 500 - 800 .004 - .010 .004 - .011 .007 - .012 .010 - .017 IN 1030 P 7 500 - 800 .004 - .009 .004 - .011 .007 - .012 .009 - .015 8 500 - 800 .004 - .009 .004 - .011 .007 - .012 .009 - .015 9 500 - 800 .004 - .009 .004 - .011 .007 - .012 .009 - .015 IN 6515 10 350 - 550 .004 - .009 .004 - .011 .007 - .012 .009 - .015 11 350 - 550 .004 - .009 .004 - .011 .008 - .014 .010 - .016 12 450 - 750 .004 - .009 .006 - .010 .012 - .016 .014 - .018 IN 2005 M 13 375 - 600 .004 - .009 .006 - .010 .012 - .016 .014 - .018 14 375 - 600 .004 - .009 .006 - .010 .012 - .016 .014 - .018 IN 1030 15 500 - 800 .004 - .009 .004 - .010 .007 - .013 .010 - .015 16 500 - 800 .004 - .009 .004 - .010 .007 - .013 .010 - .015 IN 6515 K 17 600 - 800 .004 - .009 .004 - .010 .007 - .013 .010 - .015 18 600 - 800 .004 - .009 .004 - .010 .007 - .013 .010 - .015 IN 2005 19 600 - 800 .004 - .009 .004 - .010 .007 - .013 .010 - .015 20 500 - 700 .004 - .009 .004 - .010 .007 - .013 .010 - .015 IN 1030 21 1100 - 1800 .006 - .011 .006 - .010 .012 - .015 .013 - .018 22 800 - 1100 .006 - .011 .006 - .010 .012 - .015 .013 - .018 IN 30M 23 1100 - 1800 .006 - .011 .006 - .010 .012 - .015 .013 - .018 24 800 - 1100 .006 - .011 .006 - .010 .012 - .015 .013 - .018 rm 25 800 - 1100 .006 - .011 .006 - .010 .012 - .015 .013 - .018 IN 1030 IV 26 600 - 800 .006 - .011 .006 - .010 .012 - .015 .013 - .018 27 550 - 700 .006 - .011 .006 - .010 .012 - .015 .013 - .018 28 600 - 800 .006 - .011 .006 - .010 .012 - .015 .013 - .018 IN 1030 29 30 31 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 32 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 IN 2005 33 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 S 34 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 35 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 36 100 - 250 .004 - .007 .004 - .008 .007 - .011 .009 - .013 IN 1030 37 100 - 200 .004 - .007 .004 - .008 .007 - .011 .009 - .013 38 50 - 150 .002 - .003 .002 - .003 .002 - .005 .004 - .006 IN 6515 H 39 50 - 150 .002 - .003 .002 - .003 .002 - .005 .004 - .006 40 50 - 150 .002 - .003 .002 - .003 .002 - .005 .004 - .006 IN 2005 41 50 - 150 .002 - .003 .002 - .003 .002 - .005 .004 - .006 O- p o :M O K ON COS 0 H 692
